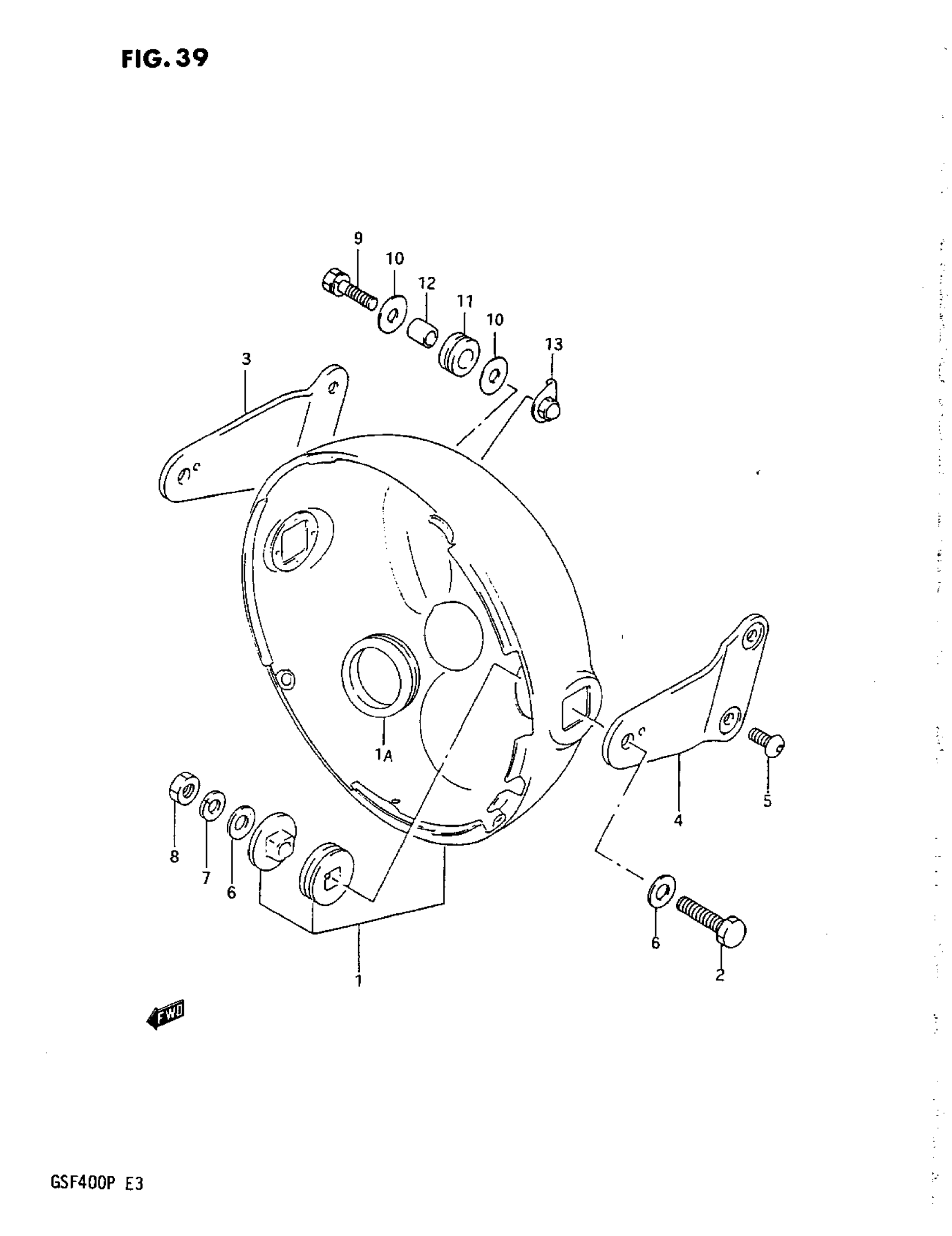

Suzuki GSF400 (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL M This part replaces 51810-01D10.

51810-01D11

Unavailable

1

HOUSING, HEADLAMP | MODEL N/P

51810-01D11

Unavailable

1

GROMMET This part replaces 51817-01D00.

51817-01D01

Unavailable

2

BOLT

01204-08307

$1.99

3

STAY, HEADLAMP RH

51851-10D00

Unavailable

4

STAY, HEADLAMP LH

51861-10D00

Unavailable

5

SCREW

09139-06027

$2.16

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08310-12088.

08310-00087

$2.13

9

BOLT This part replaces 01234-06258.

01234-0625A

Unavailable

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

CUSHION

09320-10015

$2.54

12

SPACER (6.5X10.5X12)

09180-07004

$2.30

13

PLATE

51815-06C00

Unavailable
