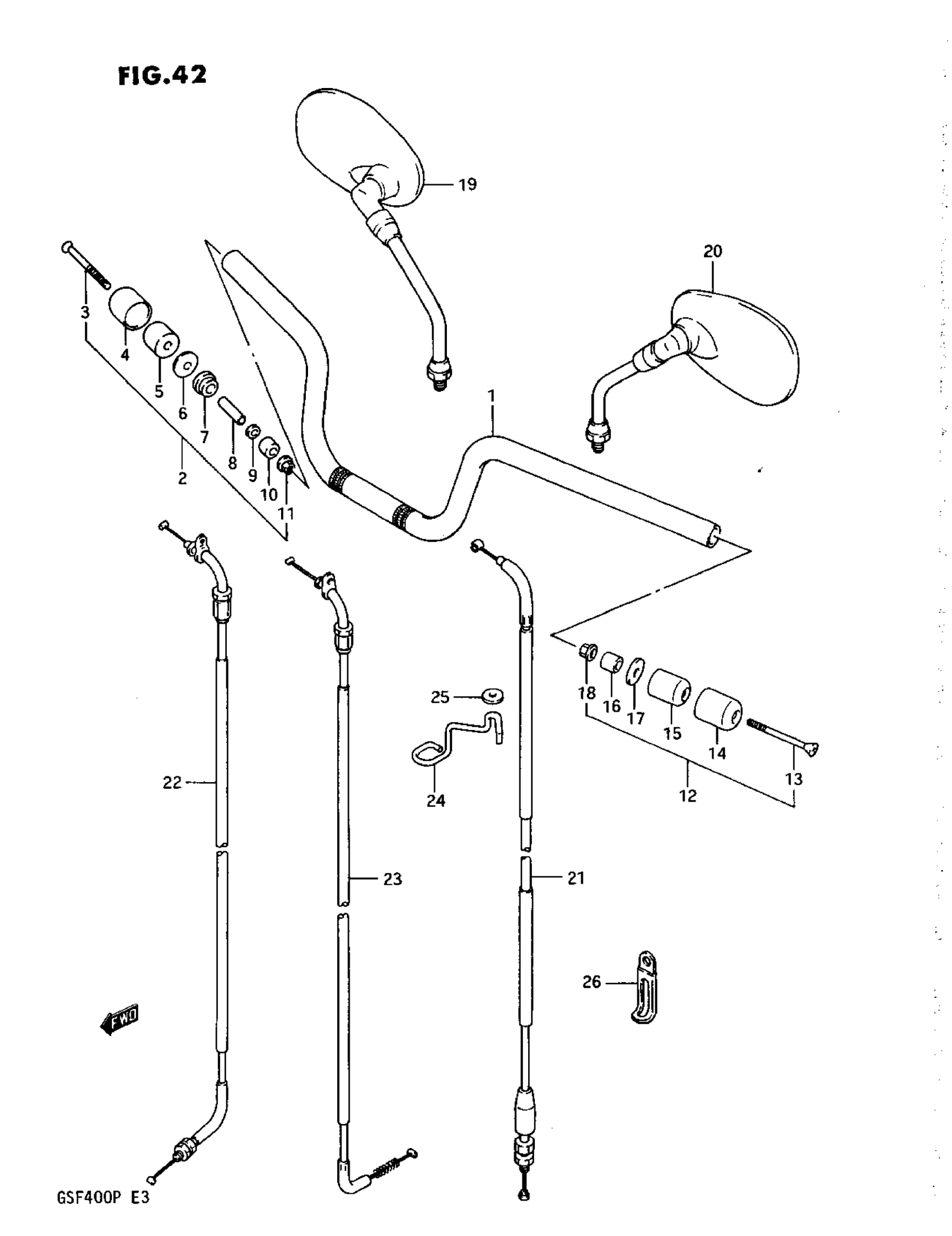

Suzuki GSF400 (1993) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-10D41.

56111-10D42

Unavailable

2

BALANCER SET,HA | MODEL M/N This part replaces 56200-10840.

56200-17813

Unavailable

2

BALANCER SET,HN | MODEL P This part replaces 56200-10850.

56200-46813

Unavailable

3

SCREW | MODEL M/N

09127-06017

$2.78

3

SCREW | MODEL P

09127-06021

$2.76

4

CAP | MODEL M/N

56274-12C00

Unavailable

4

CAP | MODEL P PAINTING BLACK This part replaces 56274-05350.

56274-31300

Unavailable

5

BALANCER

56271-17D00

Unavailable

6

SPACER This part replaces 56275-34400.

56275-34401

$4.02

7

EXPANDER

56272-10D00

Unavailable

8

SPACER

56276-17D00

$5.07

9

WASHER This part replaces 08322-21067.

08322-01067

$2.13

10

EXPANDER

56272-44500

$4.42

11

NUT

09159-06024

$2.11

12

BALANCER SET,HA | MODEL M/N This part replaces 56200-10830.

56200-10833

Unavailable

12

BALANCER SET, HANDLEBAR | MODEL P This part replaces 56200-27822.

56200-26850

Unavailable

13

SCREW 6X65 | MODEL M/N This part replaces 02132-06657.

02122-06657

$2.39

13

SCREW | MODEL P This part replaces 02132-06655.

02122-0665B

$2.76

14

CAP | MODEL M/N

56274-12C00

Unavailable

14

CAP | MODEL P PAINTING BLACK This part replaces 56274-05350.

56274-31300

Unavailable

15

BALANCER

56271-49400

Unavailable

16

EXPANDER

56272-44500

$4.42

17

SPACER This part replaces 56275-34400.

56275-34401

$4.02

18

NUT

09159-06024

$2.11

19

MIRROR ASSY,REA This part replaces 56500-10D20.

56500-10DA1

Unavailable

20

MIRROR ASSY,REA This part replaces 56600-10D20.

56600-10D41

Unavailable

21

CABLE ASSY, CLUTCH

58200-10D40

Unavailable

22

CABLE ASSY, THROTTLE

58300-10D20

Unavailable

23

CABLE, STARTER

58410-10D20

Unavailable

24

GUIDE, CLUTCH CABLE

58621-11D00

Unavailable

25

.WASHER (6.5X20X1.6) This part replaces 09160-06102.

09160-06088

$1.65

26

CLAMP (L:82) This part replaces 09404-10403.

09404-10205

Unavailable
