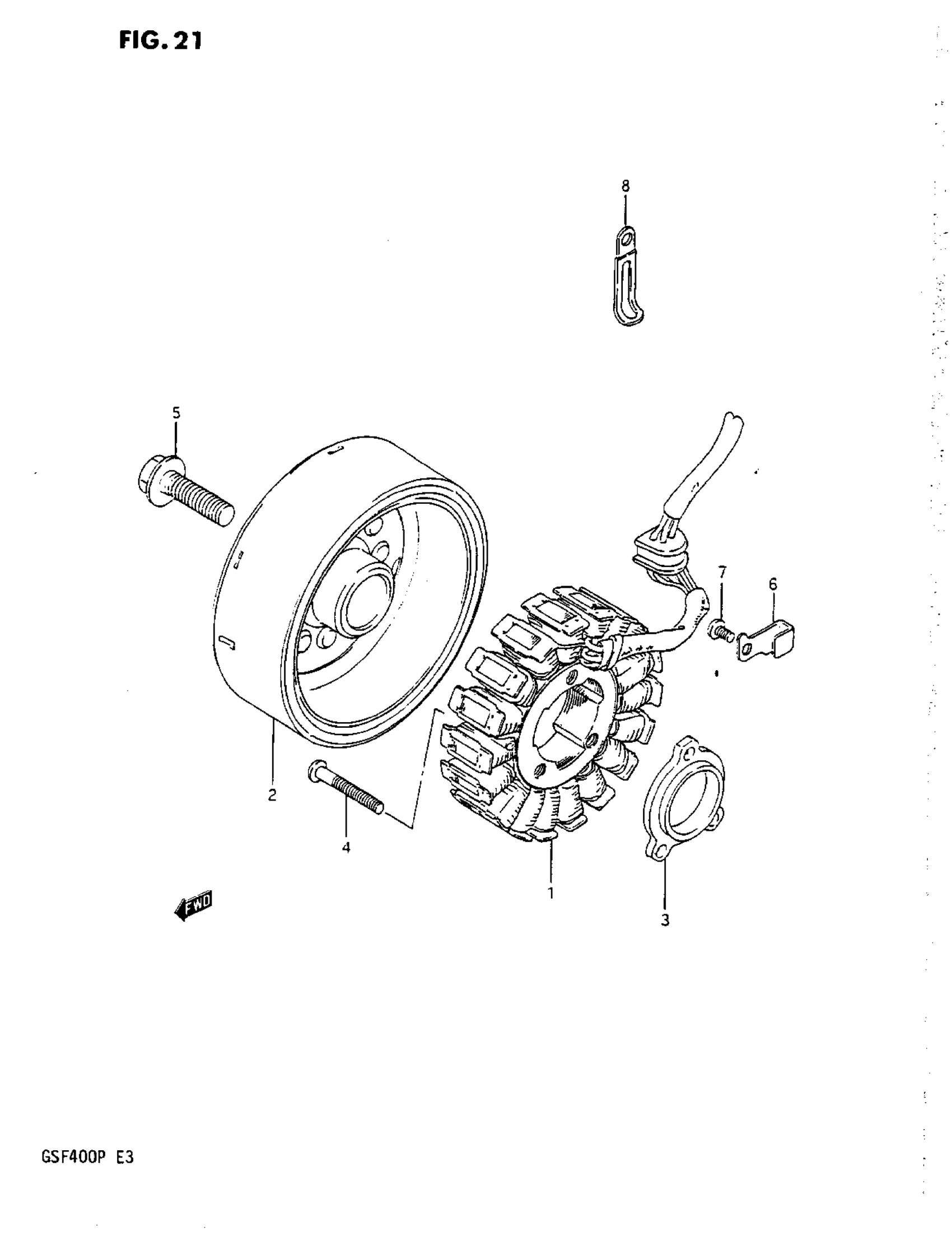

Suzuki GSF400 (1993) GENERATOR Diagram

#

Description

Price

1

STATOR | MODEL M This part replaces 31401-30B00.

31401-33C00

Unavailable

1

STATOR | MODEL N/P

31401-33C00

Unavailable

2

ROTOR | MODEL M This part replaces 31402-30B01.

31402-33C00

Unavailable

2

ROTOR | MODEL N/P

31402-33C00

Unavailable

3

SPACER, GENERATOR STATOR

31412-30B00

Unavailable

4

SCREW

02112-06357

$1.78

5

BOLT (12X40)

09103-12004

$4.00

6

CLAMP, GENERATOR LEAD WIRE

31497-30B00

Unavailable

7

SCREW

02112-05087

$1.49

8

CLAMP This part replaces 09404-06403.

09404-06039

$1.74
