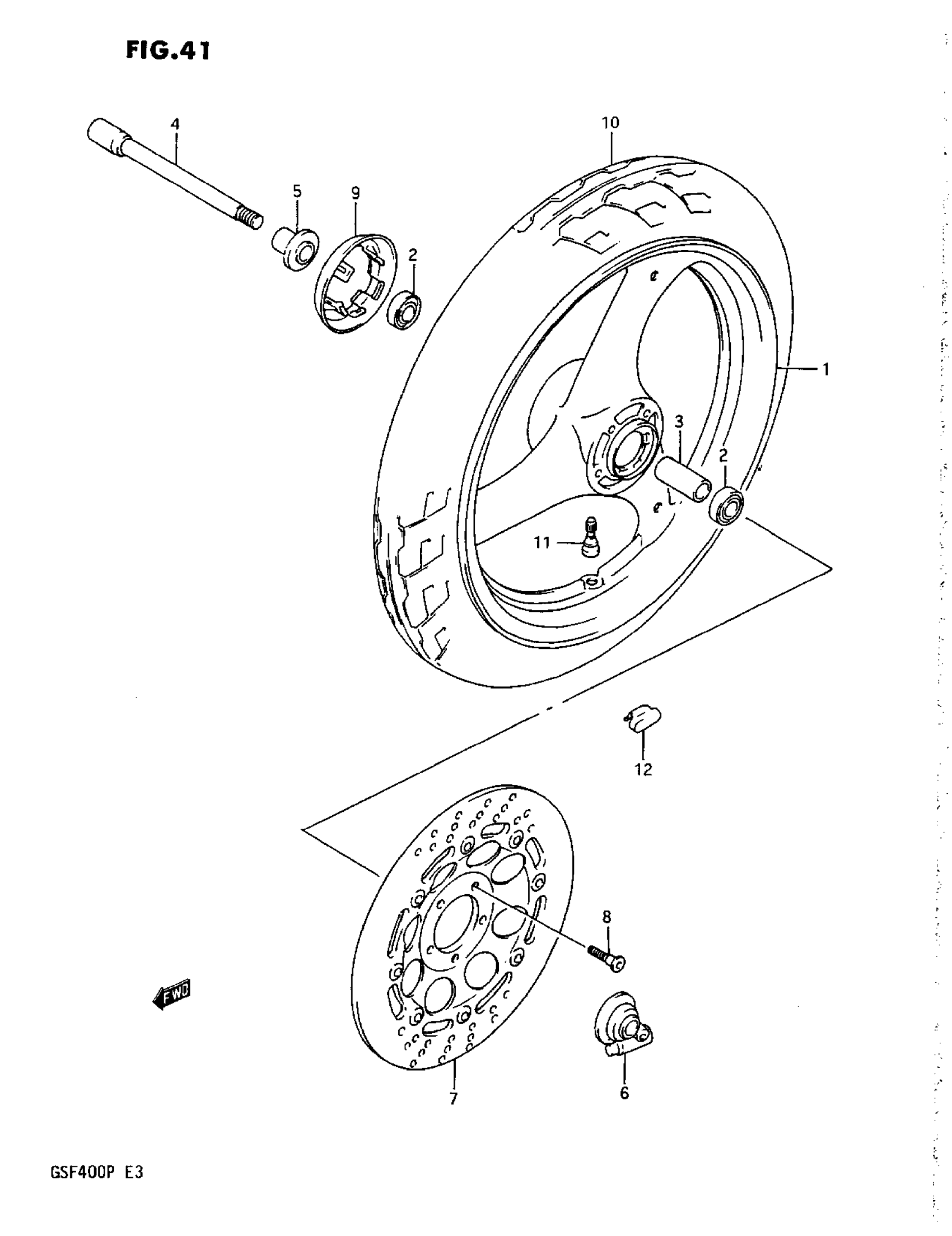

Suzuki GSF400 (1993) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT, MT3.00X17 (GOLD) | MODEL M/N, FOR 019

54111-34C10-35B

Unavailable

1

WHEEL, FRONT, MT3.00X17 (WHITE) | MODEL M/N, FOR 07P

54111-34C10-14L

Unavailable

1

WHEEL, FRONT, MT3.00X17 (SILVER) | MODEL M/N, FOR 24V, 0WP MODEL P, FOR 019, 0WP, 1T

54111-34C10-0FP

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER (15.3X21.7X63)

09180-15011

$8.18

4

AXLE, FRONT This part replaces 54711-45C00.

54711-45C01

$91.01

5

SPACER, BEARING RH

54740-11D00

Unavailable

6

BOX ASSY, SPEEDOMETER GEAR

54600-01D01

Unavailable

7

DISC, FRONT BRAKE LH

59220-01D21

Unavailable

8

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

9

COVER, FRONT HUB RH (GOLD) | MODEL M/N, FOR 019

54871-38C00-0UK

Unavailable

9

COVER, FRONT HUB RH (WHITE) | MODEL M/N, F6R 07P

54871-38C00-14L

Unavailable

9

COVER, FRONT HUB RH (GRAY) | MODEL M/N, FOR 24V, 0WP MODEL P, FOR 019, 0WP, 1T

54871-38C00-1AJ

Unavailable

10

TIRE, FRONT (110/70-17 54H) (DUNLOP)

55110-10D10

Unavailable

11

VALVE ASSY

43130-24A00

$8.85

12

BALANCER, WHEEL (10G) | 0-3, U.N.

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 | 0-3, U.N. This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) | 0-3, U.N. This part replaces 55413-00A00.

55413-00A01

Unavailable
