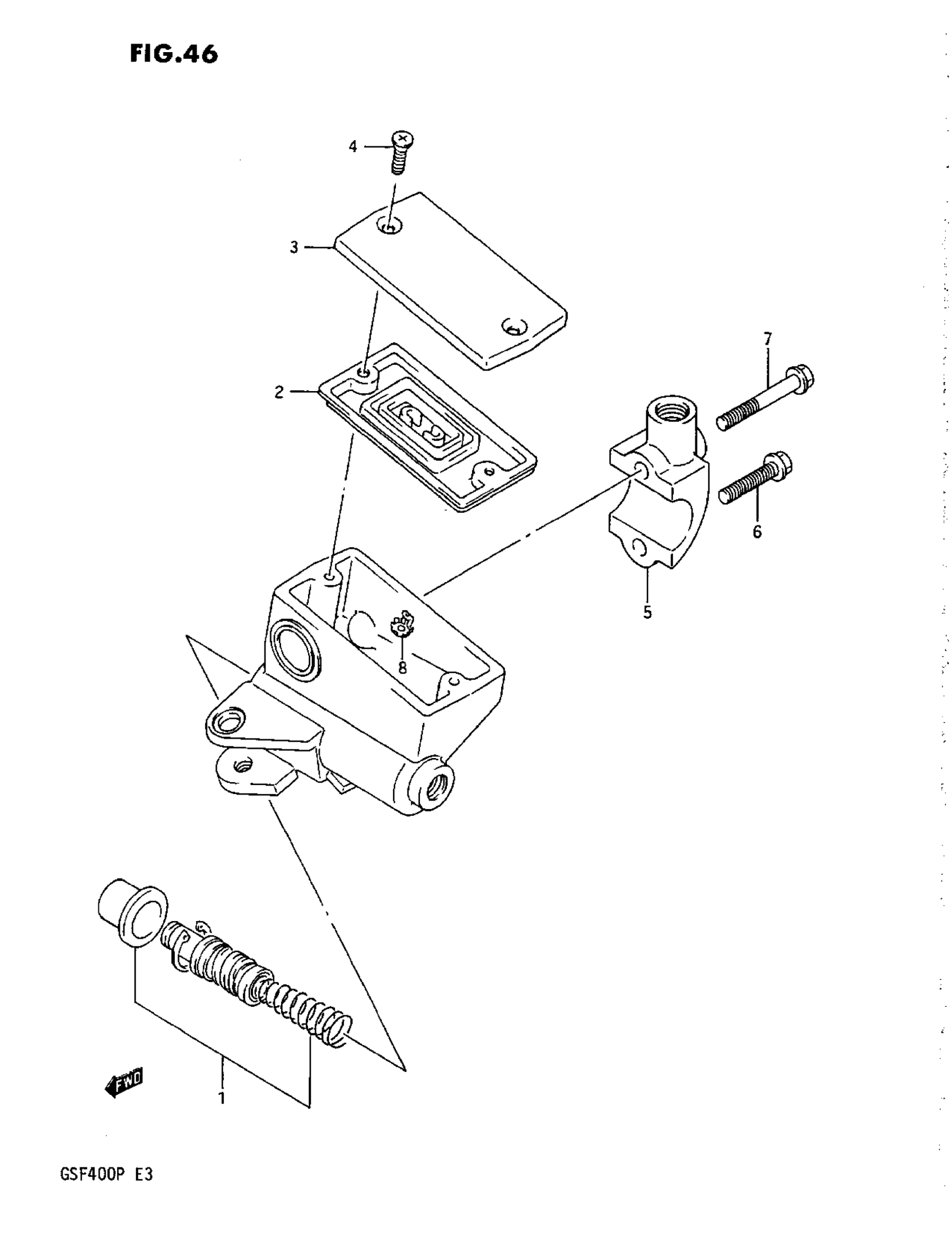

Suzuki GSF400 (1993) FRONT MASTER CYLINDER (M/N) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-45C10

$324.81

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

2

DIAPHRAGM

59667-49460

$8.95

3

CAP This part replaces 59669-34C00.

59669-41C00

$30.66

4

SCREW

69689-49300

$1.81

5

HOLDER

59671-44300

$19.60

6

BOLT HOLDER SET

59675-19C00

$4.53

7

BOLT (6X38)

59675-19C10

$5.28

8

PROTECTOR

59664-48B00

$12.43
