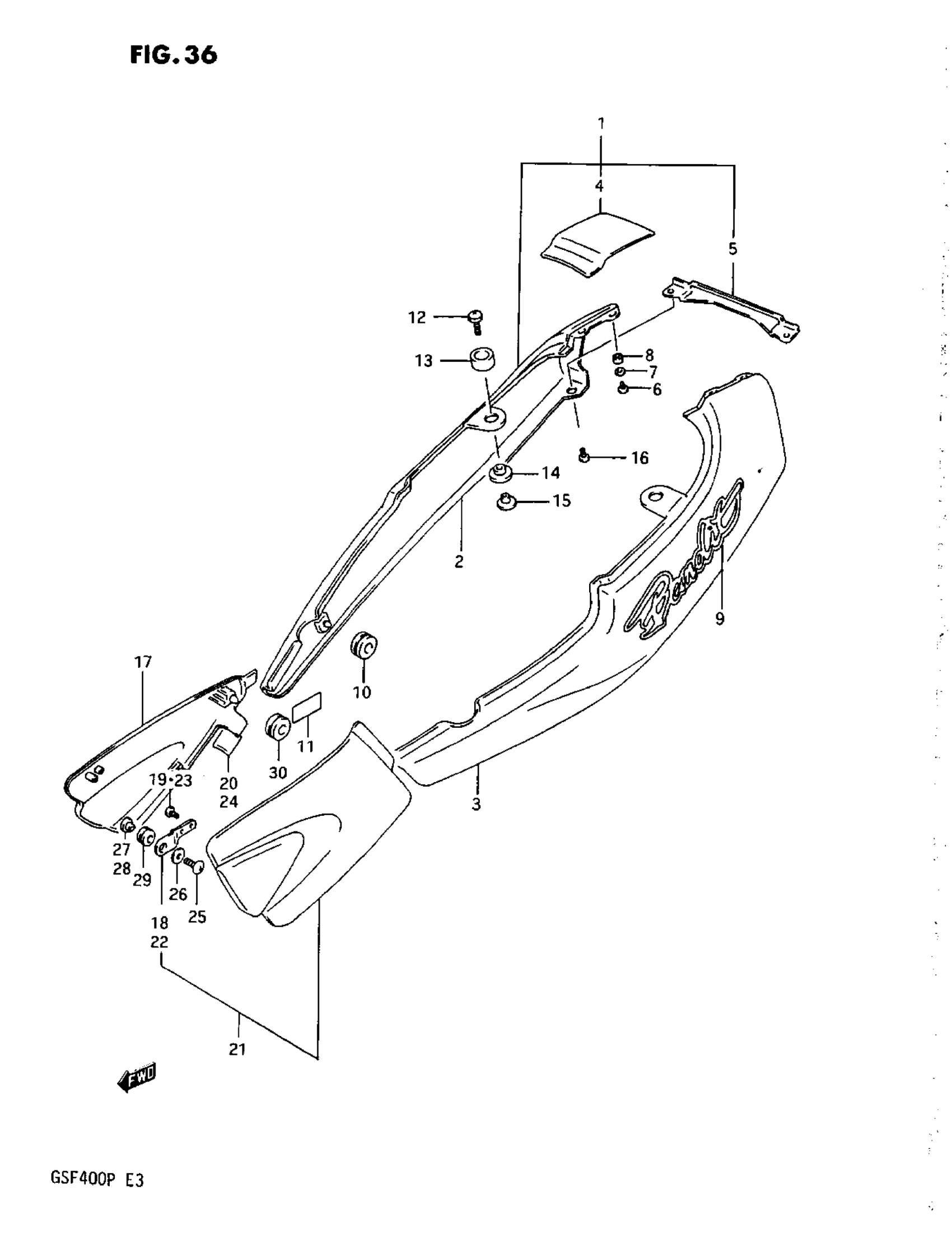

Suzuki GSF400 (1993) FRAME COVER Diagram

#

Description
Price

1

COVER ASSY, FRAME (BLACK) | MODEL M/N This part replaces 47100-11D00-02X.

47100-11D00-019

Unavailable

1

COVER ASSY, FRAME (BLACK) | MODEL P

47100-11D00-019

Unavailable

1

COVER ASSY, FRAME (BLUE) | MODEL M

47100-11D00-24V

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 47100-11D00-21X.

47100-11D00-07P

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47100-11D00-1TY.

47100-10D01

Unavailable

1

COVER ASSY, FRAME (GREEN) | MODEL N/P

47100-11D00-0WP

Unavailable

2

COVER, FRAME RH (BLACK)

47111-10D00-019

Unavailable

2

COVER, FRAME RH (BLUE) | MODEL M

47111-10D00-24V

Unavailable

2

COVER, FRAME RH (RED) | MODEL M/N

47111-10D00-07P

Unavailable

2

COVER, FRAME RH (RED) | MODEL P

47111-10D00-1TY

Unavailable

2

COVER, FRAME RH (GREEN) | MODEL N/P

47111-10D00-0WP

Unavailable

3

COVER, FRAME LH (BLACK)

47211-10D00-019

Unavailable

3

COVER, FRAME LH (BLUE) | MODEL M

47211-10D00-24V

Unavailable

3

COVER, FRAME LH (RED) | MODEL M/N

47211-10D00-07P

Unavailable

3

COVER, FRAME LH (RED) | MODEL P

47211-10D00-1TY

Unavailable

3

COVER, FRAME LH (GREEN) | MODEL N/P

47211-10D00-0WP

Unavailable

4

COVER, FRAME REAR (BLACK)

47311-10D00-019

Unavailable

4

COVER, FRAME REAR (BLUE) | MODEL M

47311-10D00-24V

Unavailable

4

COVER,FRAME,REA | MODEL M/N This part replaces 47311-10D00-07P.

47311-10D00

Unavailable

4

COVER, FRAME REAR (RED) | MODEL P

47311-10D00-1TY

Unavailable

4

COVER, FRAME REAR (GREEN) | MODEL N/P

47311-10D00-0WP

Unavailable

5

COVER,FRAME RR This part replaces 47411-10D00-019.

47411-10D00

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47411-10D00-24V.

47411-10D00-34R

Unavailable

5

COVER, FRAME REAR LOWER (RED) | MODEL M/N

47411-10D00-07P

Unavailable

5

COVER, FRAME REAR LOWER (RED) | MODEL P

47411-10D00-1TY

Unavailable

5

COVER, FRAME REAR LOWER (GREEN) | MODEL N/P

47411-10D00-0WP

Unavailable

6

SCREW This part replaces 03541-04086.

03541-0408A

Unavailable

7

WASHER This part replaces 08322-21046.

08322-0104A

$1.91

8

SPACER, REAR COVER

47315-10D00

Unavailable

9

EMBLEM, FRAME COVER | FOR 02X, 019

68131-11D00-3UJ

Unavailable

9

EMBLEM, FRAME COVER | FOR 24V

68131-11D00-G24

Unavailable

9

EMBLEM, FRAME COVER | FOR 21X

68131-11D00-3WP

Unavailable

9

EMBLEM, FRAME COVER | FOR 0WP

68131-11D00-N39

Unavailable

9

EMBLEM, FRAME COVER | FOR 1TY

68131-11D00-B3J

Unavailable

10

CUSHION

09320-08018

$3.04

11

PROTECTOR, FRAME COVER

47161-10D00

$5.98

12

SCREW

09136-06082

$2.12

13

CUSHION, TAIL COVER UPPER

45149-04A00

$3.59

14

CUSHION, TAIL COVER LOWER

45326-04A00

$3.32

15

SPACER, SEAT TAIL COVER

45537-04A00

$1.92

16

SCREW, REAR This part replaces 09139-05047.

02142-0520B

$1.78

17

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47510-10D01-019.

47510-10D02-13L

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL N/P FOR 019 This part replaces 47510-10D02-87N.

47510-10D02-13L

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47510-10D01-24V.

47510-10D02-13L

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47510-10D01-07P.

47510-10D02-13L

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL N FOR 07P This part replaces 47510-10D02-94F.

47510-10D02-13L

Unavailable

17

COVER, AIR CLEANER RH | MODEL P FOR 1TY

47510-10D02-A6K

Unavailable

17

COVER, AIR CLEANER RH | MODEL N/P FOR 0WP

47510-10D02-J74

Unavailable

18

PLATE, AIR CLEANER COVER

47513-10D00

Unavailable

19

SCREW This part replaces 03541-04085.

03541-0408A

Unavailable

20

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

21

COVER, AIR CLEANER LH | MODEL M This part replaces 47610-10D01-019.

47610-10D02-87N

Unavailable

21

COVER, AIR CLEANER LH | MODEL N/P FOR 019

47610-10D02-87N

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47610-10D01-24V.

47610-10D02-13L

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47610-10D01-07P.

47610-10D02-13L

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL N FOR 07P This part replaces 47610-10D02-94F.

47610-10D02-13L

Unavailable

21

COVER, AIR CLEANER LH | MODEL P FOR 1TY

47610-10D02-A6K

Unavailable

21

COVER, AIR CLEANER LH | MODEL N/P FOR 0WP

47610-10D02-J74

Unavailable

22

PLATE, AIR CLEANER COVER

47513-10D00

Unavailable

23

SCREW This part replaces 03541-04085.

03541-0408A

Unavailable

24

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

25

SCREW (6X20)

09139-06063

$4.00

26

WASHER, OUTER (6.5X18X1)

09160-06056

$1.72

27

WASHER, INNER (6.3X17X6)

09169-06063

$3.37

28

WASHER, REAR LOWER

09169-06064

$3.61

29

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

30

CUSHION

09320-08018

$3.04
