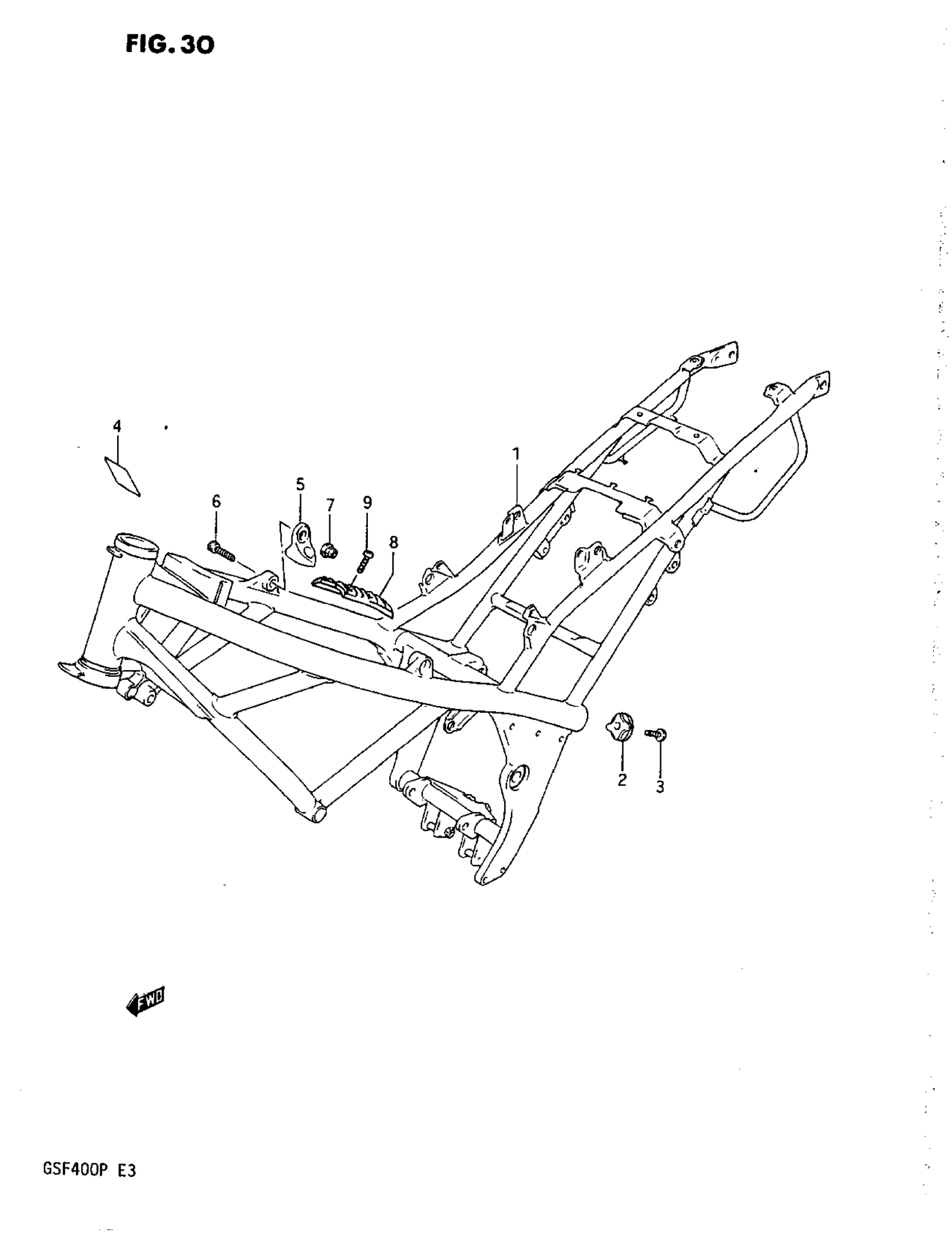

Suzuki GSF400 (1993) FRAME Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-10D10-019.
41100-10D28-019
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL N This part replaces 41100-10D12-019.
41100-10D28-019
Unavailable
1
(CA)FRAME TRUCK | MODEL M This part replaces 41100-10D10-0FP.
41100-10D12-0FP
Unavailable
1
FRAME (RED) | MODEL M This part replaces 41100-10D10-0NH.
41100-10D12-0NH
Unavailable
1
FRAME (RED) | MODEL N
41100-10D12-0NH
Unavailable
1
FRAME (GREEN) | MODEL N
41100-10D12-0WP
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41100-10D15-019.
41100-10D28-019
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41100-10D15-1UG.
41100-10D28-1UG
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41100-10D15-0WP.
41100-10D16-0WP
Unavailable
2
CAP | MODEL M This part replaces 41991-10D00.
41888-10D00
Unavailable
2
CAP | MODEL N
41888-10D00
Unavailable
4
PROTECTOR
47261-48B00
Unavailable
5
BRACKET, ENGINE MOUNTING | MODEL M This part replaces 41191-10D00.
41191-10D01
Unavailable
5
BRACKET, ENGINE MOUNTING | MODEL N/P
41191-10D01
Unavailable
8
PROTECTOR, FUEL TANK RH
43560-10D00
Unavailable
8
PROTECTOR, FUEL TANK LH
43570-10D00
Unavailable
