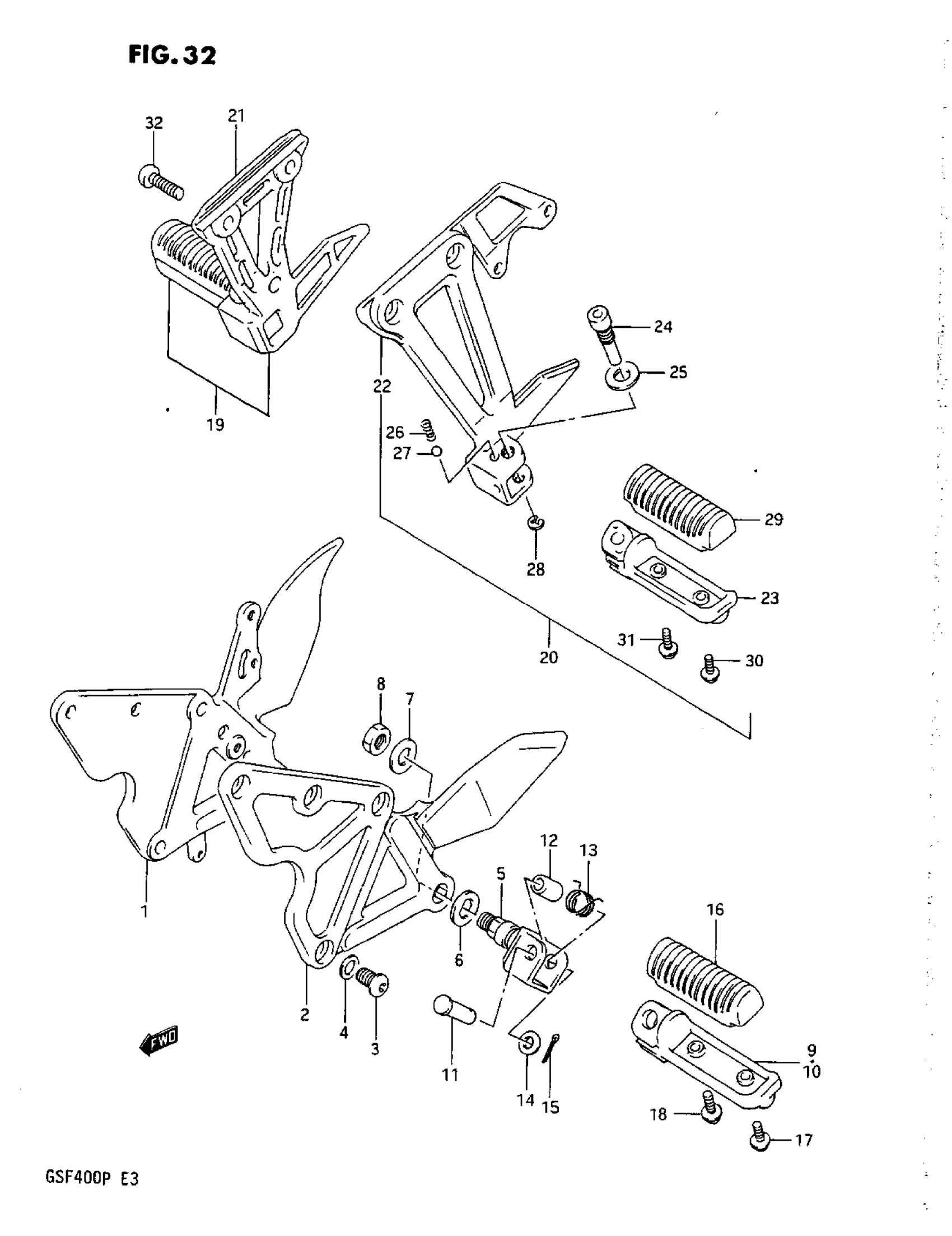

Suzuki GSF400 (1993) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH

43511-10D00

Unavailable

2

BRACKET, FOOTREST LH

43521-10D00

Unavailable

3

BOLT | MODEL M/N This part replaces 09106-08111.

09106-08128

$3.23

3

BOLT | MODEL P

09106-08128

$3.23

4

WASHER

09164-08015

$3.21

5

BOSS, FOOTREST

43530-11D00

Unavailable

6

PLATE, FOOTREST

43213-17C01

Unavailable

7

PIN This part replaces 04111-25258.

04111-2530A

$1.49

8

NUT This part replaces 08314-41128.

08314-4012A

$2.50

9

BAR, FOOTREST RH

43511-40C00

$63.90

10

BAR, FOOTREST LH

43521-40C00

$63.90

11

PIN

09200-08057

$2.36

12

SPACER (8.1X12X22)

09180-08149

$5.58

13

SPRING This part replaces 09448-19020.

09448-18022

$3.79

14

WASHER

09160-08043

$1.83

15

PIN This part replaces 04111-25158.

04111-2515A

$1.49

16

RUBBER, FOOTREST

43550-40C11

$21.90

17

SCREW This part replaces 02112-75168.

02112-7516A

$2.41

18

SCREW This part replaces 02112-75208.

02112-75207

$2.92

19

FOOTREST ASSY, PILLION RH

43600-10D00

Unavailable

20

FOOTREST ASSY, PILLION LH

43700-10D00

Unavailable

21

FOOTREST ASSY, PILLION RH This part replaces 43811-10D00.

43600-10D00

Unavailable

22

FOOTREST ASSY, PILLION LH This part replaces 43821-10D00.

43700-10D00

Unavailable

23

BAR, PILLION FOOTREST RH

43610-40C00

Unavailable

23

BAR, PILLION FOOTREST LH

43620-40C00

Unavailable

24

BOLT, PILLION FOOTREST

43642-40C00

$8.98

25

WASHER This part replaces 09160-10031.

09160-10126

$2.12

26

SPRING

09440-05003

$1.49

27

BALL

06111-07004

$1.49

28

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.49

29

RUBBER, FOOTREST

43550-40C11

$21.90

30

SCREW This part replaces 02112-75168.

02112-7516A

$2.41

31

SCREW This part replaces 02112-75208.

02112-75207

$2.92

32

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 09106-08093.

09106-08085

Unavailable

32

BOLT (8X28) | MODEL P

09106-08129

$5.40

33

BOLT, REAR (8X35) | MODEL M/N

09106-08096

Unavailable

33

BOLT, REAR (8X35) | MODEL P

09106-08130

$4.45
