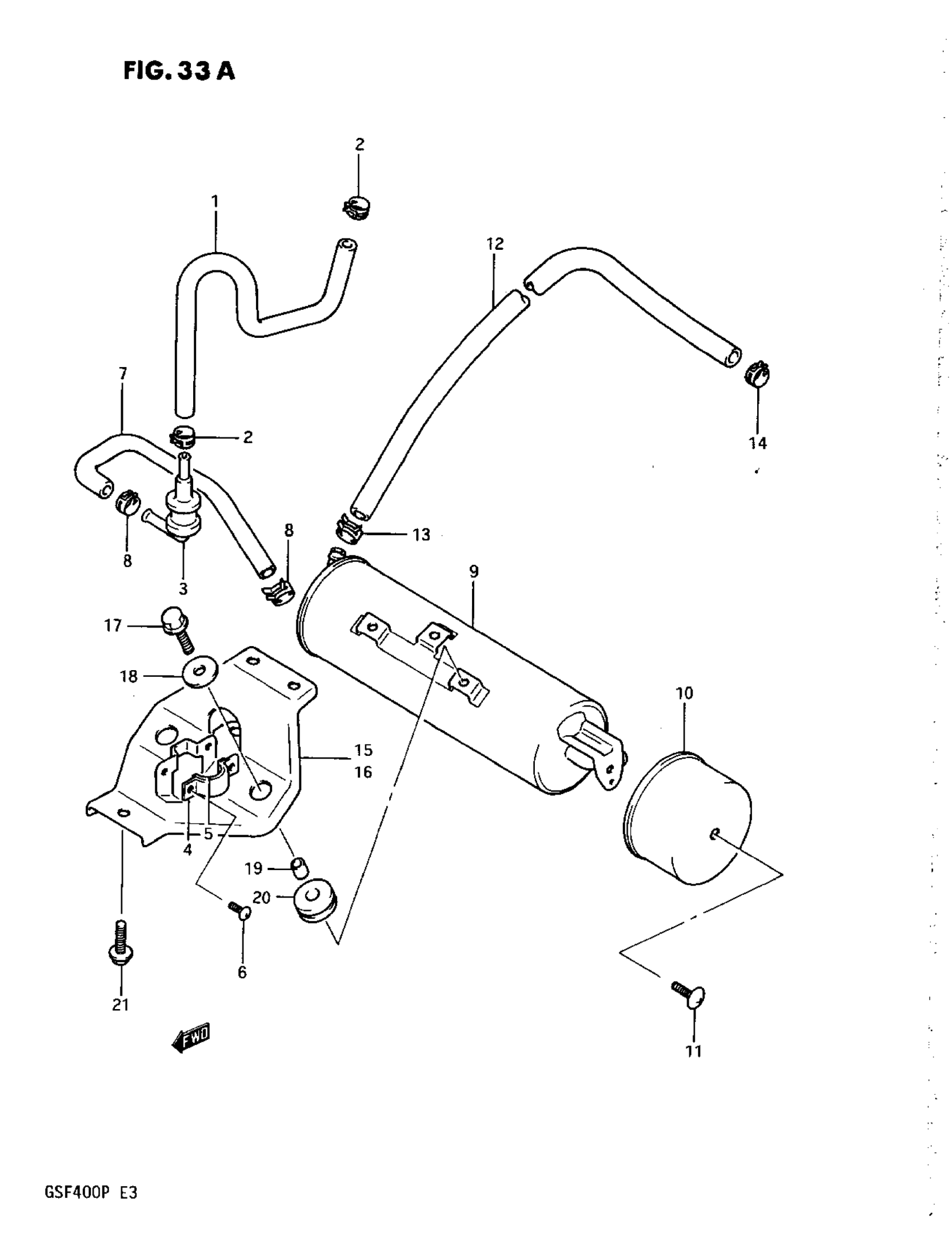

Suzuki GSF400 (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:600->400 This part replaces 09358-54116-600.

09355-54115-600

$14.59

2

CLIP This part replaces 09401-11410.

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

7

HOSE, VALVE & CANISTER

44433-10D00

Unavailable

8

CLIP This part replaces 09401-11410.

09401-11413

$2.26

9

CANISTER

17210-10D00

Unavailable

10

COVER, CANISTER

44991-10D00

Unavailable

11

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

12

HOSE, CANISTER & CARB | L:601->500

09359-54111-600

$25.80

13

CLIP This part replaces 09401-12406.

09401-11415

$2.23

14

CLIP This part replaces 09401-11410.

09401-11413

$2.26

15

BRACKET, CANISTER

44890-10D00

Unavailable

16

CUSHION (10X30X2)

44894-24A00

$1.72

17

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

18

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

19

SPACER This part replaces 09180-06152.

09180-06262

$2.55

20

CUSHION This part replaces 09320-09021.

09320-09502

$4.17

21

BOLT This part replaces 01517-06204.

01550-0620A

$1.97
