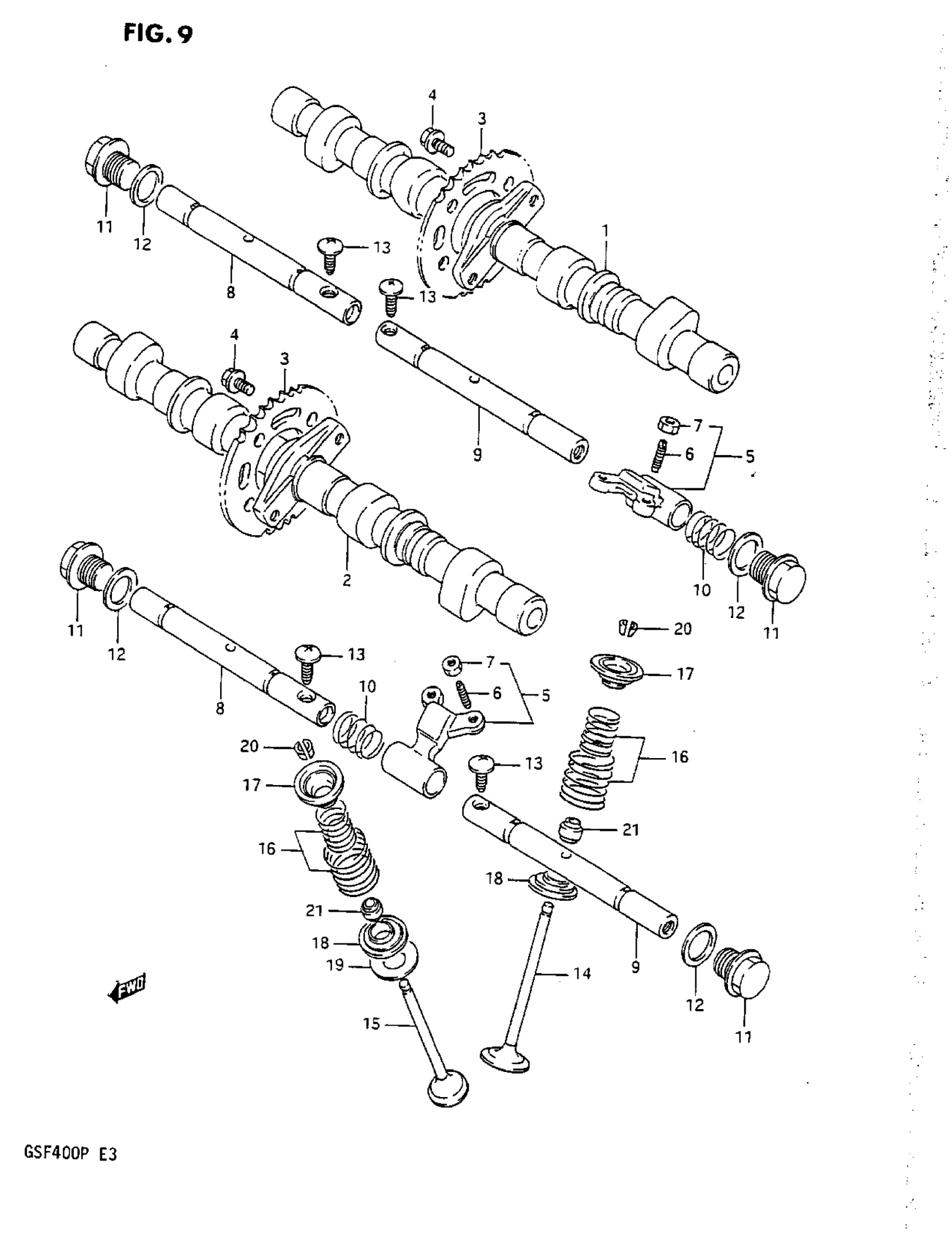

Suzuki GSF400 (1993) CAM SHAFT-VALVE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 12711-34C00.

12711-34C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N CALIFORNIA ONLY This part replaces 12711-10D00.

12711-10D01

Unavailable

1

CAM SHAFT, INTAKE | MODEL P

12711-10D10

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 12721-32C00.

12721-32C01

Unavailable

2

CAM SHAFT, EXHAUST | MODEL P

12721-10D10

Unavailable

3

SPROCKET, CAM SHAFT

12741-32C00

Unavailable

4

BOLT

09103-07003

$3.15

5

ARM, VALVE ROCKER

12840-32C00

Unavailable

6

SCREW

12842-32C00

Unavailable

7

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

8

SHAFT, VALVE ROCKER ARM RH

12861-32C00

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 12861-32C10.

12861-46D01

Unavailable

10

SPRING

09440-13014

$2.45

11

PLUG, VALVE ROCKER ARM SHAFT | MODEL M, FOR 11100-10000

12862-04A10

Unavailable

11

PLUG, VALVE ROCKER ARM SHAFT | MODEL N/P, FOR 11100-10001

09247-14034

Unavailable

12

GASKET

09168-14004

$1.83

13

SCREW (6X16)

09139-06043

Unavailable

14

VALVE,INTAKE | MODEL M/N This part replaces 12911-32C01.

12911-32C11

Unavailable

14

VALVE, INTAKE | MODEL P

12911-32C10

Unavailable

15

VALVE, EXHAUST

12912-32C02

Unavailable

16

SPRING SET, VALVE

12920-32C01

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 12931-32C00.

12931-32C01

Unavailable

18

SEAT, SPRING This part replaces 12933-33200.

12933-33201

$6.05

19

SEAT, VALVE SPRING EX OUTER | MODEL M/N

12935-27A00

$3.25

20

COTTER, VALVE

12932-32C00

$2.03

21

OIL SEAL (4.5X10X8)

09289-04002

$6.49
