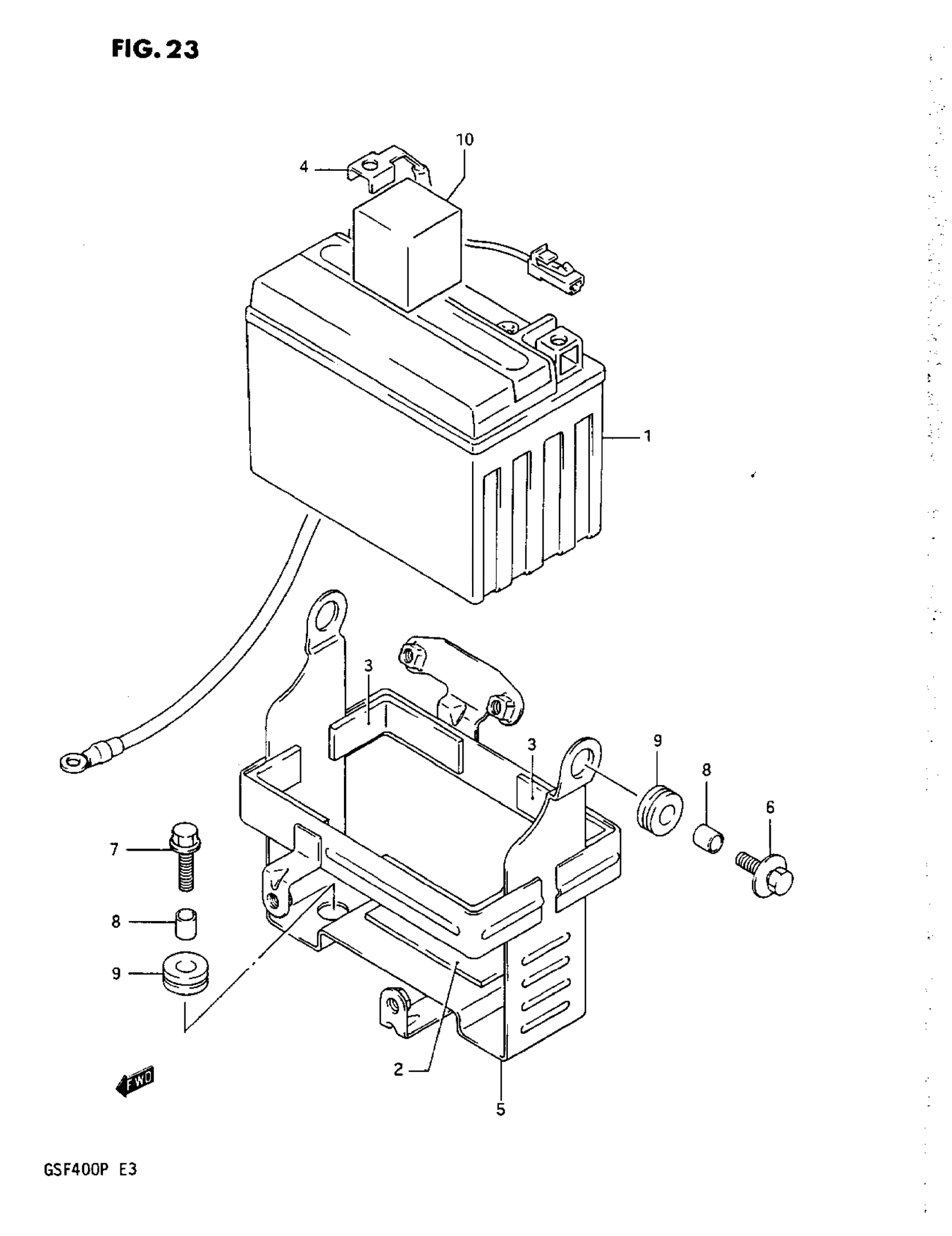

Suzuki GSF400 (1993) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-10D00.

33610-33E20

Unavailable

2

CUSHION, BATTERY | CUT 27X80

33652-19B00

$6.03

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

3

PROTECTOR, BATTERY | CUT 20X90

33651-37000

$4.48

4

WIRE, BATTERY (-) LEAD

33860-10D00

Unavailable

5

HOLDER, BATTERY | MODEL M

41540-10D00

Unavailable

5

HOLDER, BATTERY | MODEL N/P

41540-10D02

Unavailable

6

BOLT This part replaces 09116-06083.

09116-06167

$2.19

7

BOLT This part replaces 01517-06204.

01550-0620A

$1.97

8

SPACER (6.2X9X7.5)

09180-06103

Unavailable

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

CUSHION, UPPER (40X40X38) This part replaces 44576-10D00.

33652-01D20

$5.67
