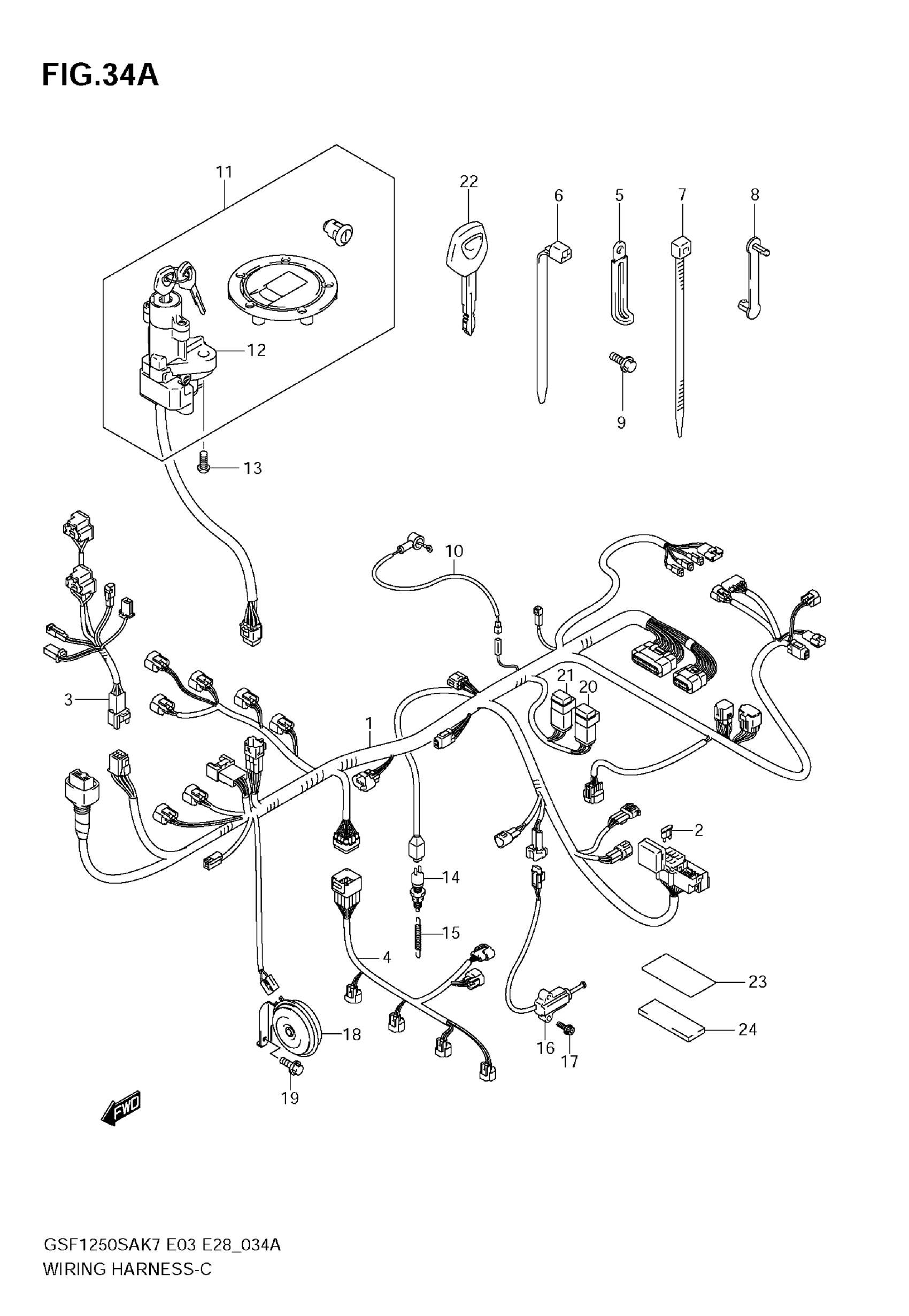

Suzuki GSF1250S (2009) WIRING HARNESS (GSF1250SK7/SK8/SK9) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-18H80

Unavailable

1

HARNESS, WIRING NO.1 | E33; Includes Item(s) 2 - 2

36610-18H90

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

HARNESS, WIRING NO.2

36620-38G00

Unavailable

4

WIRE, INJECTOR LEAD

36859-18H00

Unavailable

5

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

6

CLAMP (L:95)

09407-11401

$2.63

6

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:165)

09407-18402

$2.19

6

CLAMP (L:235)

09407-25401

$4.66

7

CLAMP (L:145)

09407-14407

$3.57

8

CLAMP

09407-03401

$3.07

9

BOLT, WIRING HARNESS

01550-0612A

$1.97

10

WIRE, OIL PRESSURE SWITCH

36851-18H00

Unavailable

11

LOCK SET This part replaces 37000-49820.

37000-49824

$360.01

11

LOCK SET | E33; Includes Item(s) 12 This part replaces 37000-49830.

37000-49834

$447.45

12

LOCK ASSY,STEER This part replaces 37100-49G00.

37100-49G02

$198.32

13

BOLT (8X20)

09139-08016

$3.37

14

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

15

SPRING

09443-06054

$3.85

16

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$60.37

17

SCREW

07120-0620B

$3.04

18

HORN ASSY

38500-18H00

$80.72

19

BOLT

01550-0612B

$2.39

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

22

KEY, BLANK | OPT

37146-33E00

$21.21

23

TAPE (30X75X0.2)

63131-10F00

$14.02

24

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64
