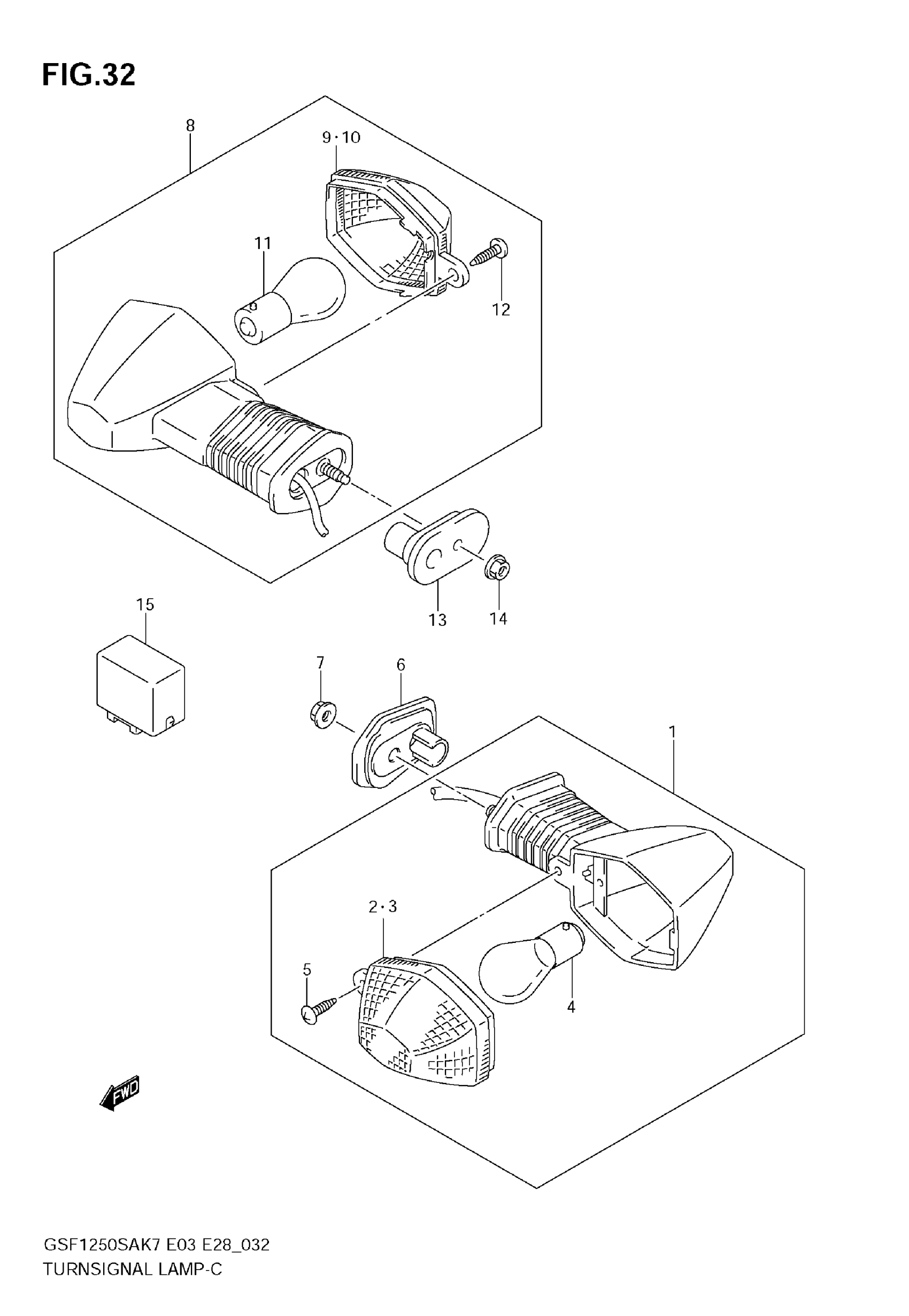

Suzuki GSF1250S (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN, R

35601-38G40

$106.15

1

LAMP ASSY, FR TURN, L | Includes Item(s) 2 - 5

35602-38G40

$106.15

2

LENS, R

35612-29FA0

$14.37

3

LENS, L

35632-29FA0

$14.37

4

BULB (12V 21W) | FOR AMBER

09471-12186

$12.66

5

SCREW

03242-0416A

Unavailable

6

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

7

NUT

08316-1005B

$2.50

8

LAMP ASSY, RR TURN, R

35603-29FB0

$110.18

8

LAMP ASSY, RR TURN, L | Includes Item(s) 9 - 12

35604-29FB0

$108.15

9

LENS, R

35632-29FA0

$14.37

10

LENS, L

35612-29FA0

$14.37

11

BULB (12V 21W) | FOR AMBER

09471-12186

$12.66

12

SCREW

03242-0416A

Unavailable

13

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

14

NUT

08316-1005B

$2.50

15

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
