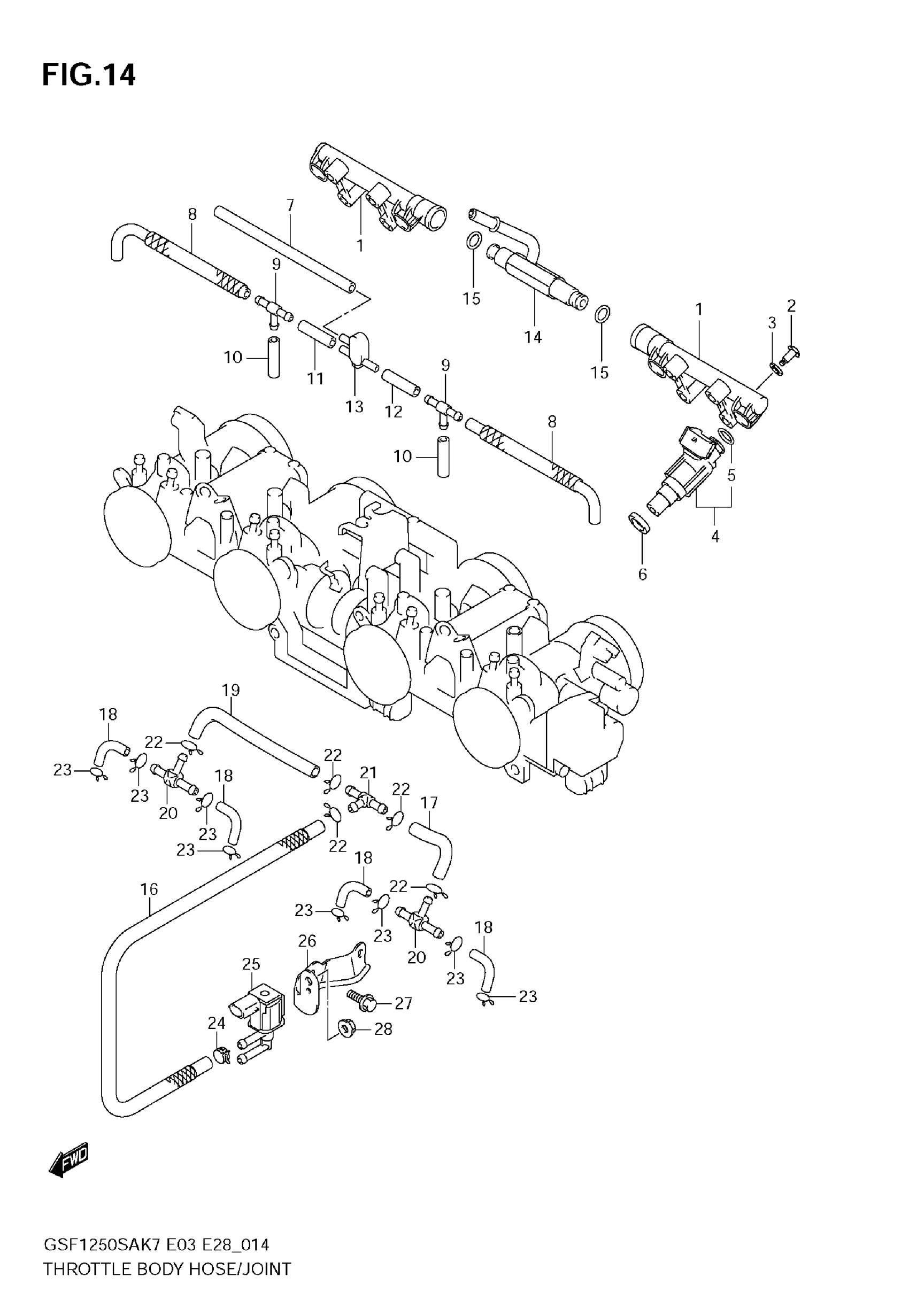

Suzuki GSF1250S (2009) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE ASSY

15731-18H00

Unavailable

2

SCREW

13601-29G00

$3.43

3

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

4

INJECTOR ASSY | Includes Item(s) 5

15710-18H00

$333.68

5

O RING

15717-16G00

$11.70

6

SEAL

15722-29G00

$10.93

7

HOSE

13683-07F10

Unavailable

8

HOSE

13683-18H00

Unavailable

9

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

$7.05

10

HOSE (L:425) This part replaces 13683-33E40.

13683-10F61

$17.10

11

HOSE

13683-07F00

Unavailable

12

HOSE

13683-18H10

Unavailable

13

NIPPLE

13471-18H00

$10.48

14

NIPPLE

13473-18H00

Unavailable

15

O-RING This part replaces 15721-29G00.

15721-08J00

$10.52

16

HOSE | E33

13683-18H21

Unavailable

17

HOSE | E33

13683-18H31

Unavailable

18

HOSE | E33

13683-18H41

Unavailable

19

HOSE | E33

13683-18H51

Unavailable

20

NIPPLE | E33

13685-29G00

Unavailable

21

.NIPPLE | E33

13685-48B00

$12.15

22

CLIP | E33

13671-06A10

Unavailable

23

CLIP | E33

13671-29G00

Unavailable

24

CLIP | E33

09401-10411

$2.80

25

VALVE,CANISTER PURGE | E33

18117-52G10

$151.17

26

BRACKET | E33

13980-18H00

Unavailable

27

BOLT | E33

01550-0612B

$2.39

28

NUT | E33

08316-1006B

$2.50
