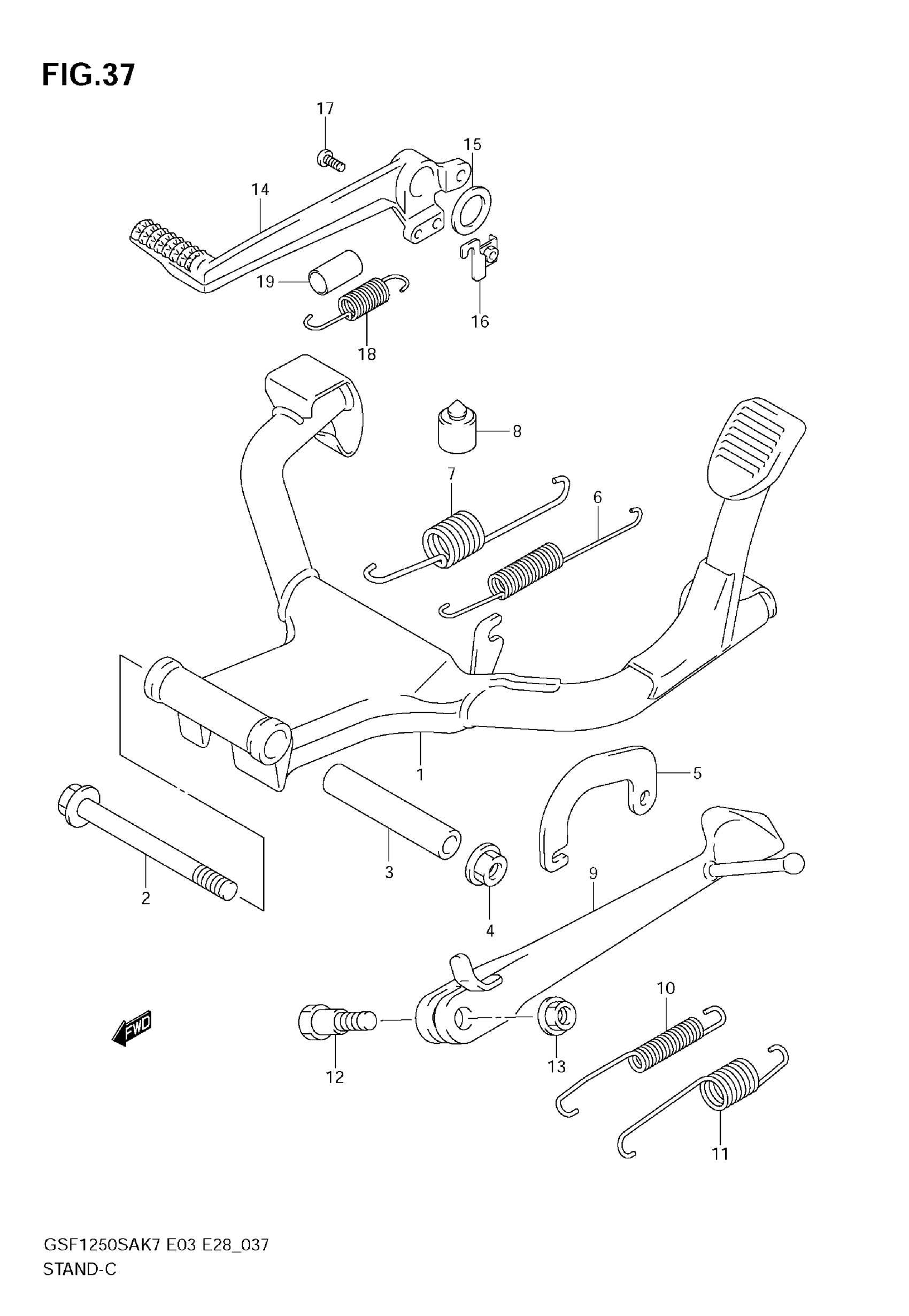

Suzuki GSF1250S (2009) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-18H00

Unavailable

2

BOLT

09103-10087

$7.03

3

SPACER

42191-18H00

Unavailable

4

NUT

08319-3110A

$2.73

5

HOOK, SPRING

42192-18H00

Unavailable

6

SPRING, INNER

09443-14073

Unavailable

7

SPRING, OUTER

09443-22020

Unavailable

8

CUSHION

09321-10034

$9.11

9

STAND, PROP

42310-32F21

Unavailable

10

SPRING, INNER

09443-12048

$10.47

11

SPRING, OUTER

09443-19010

$6.51

12

BOLT

09111-10065

$8.15

13

NUT, PROP STAND

42321-03FK0

$5.17

14

PEDAL, BRAKE

43111-38G00

$159.70

15

WASHER

09160-18022

$2.92

16

BRACKET, STOP SWITCH

43560-32C00

$5.67

17

SCREW

02112-0516B

$1.93

18

SPRING

09443-13029

$5.36

19

TUBE, SPRING

43261-17C00

$6.12
