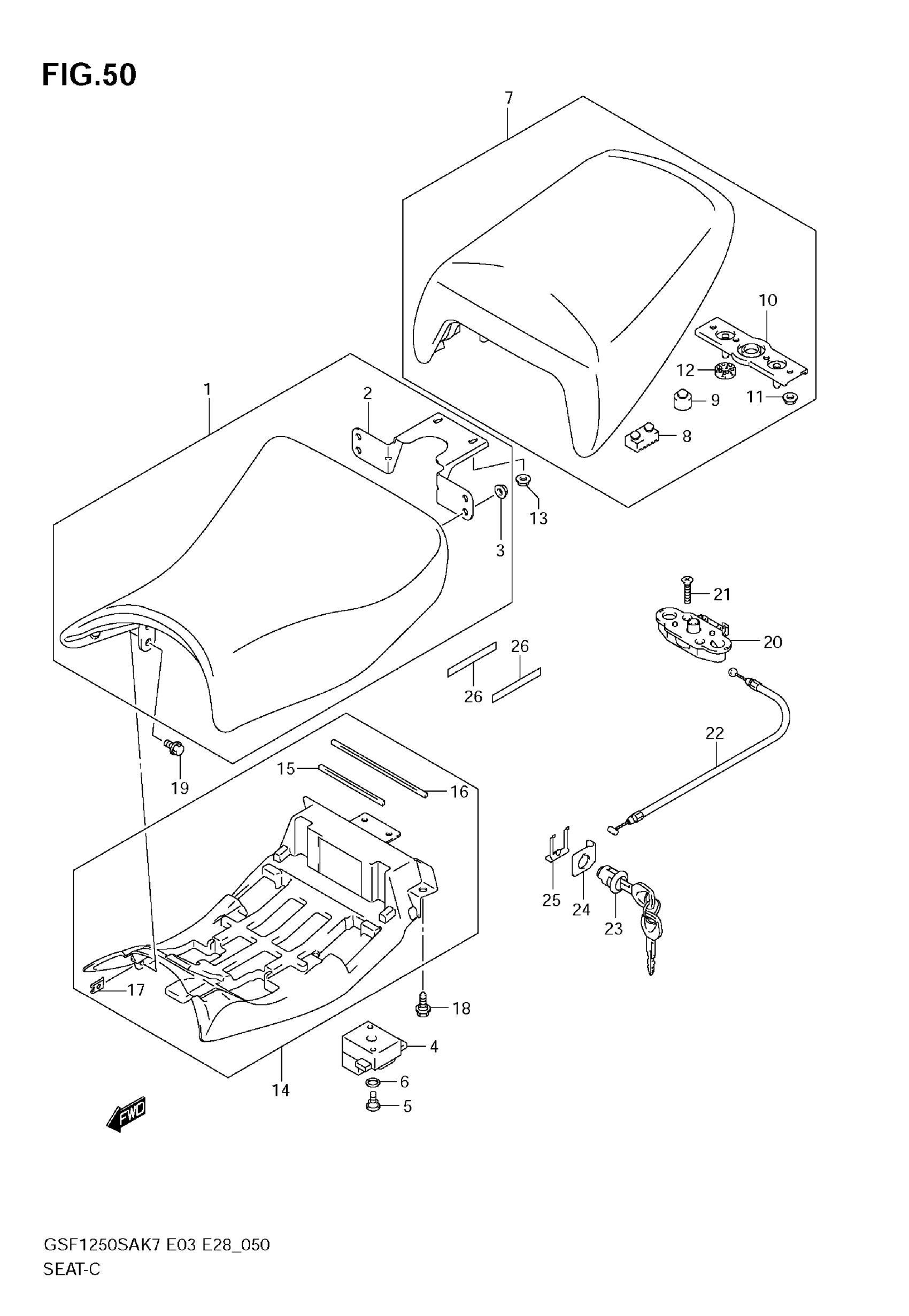

Suzuki GSF1250S (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-38G11-DKD.

45100-38G14-DKD

$271.12

2

BRACKET

45115-38G00

Unavailable

3

NUT

08319-3106A

$2.03

4

CUSHION

45149-38G00

Unavailable

5

SCREW, SEAT CUSHION

09139-06133

$3.15

6

WASHER, SEAT CUSHION

09160-10121

$2.03

7

SEAT ASSY,PILLI | Includes Item(s) 8 - 12 This part replaces 45300-38G10-W05.

45300-38G12-W05

$246.97

8

CUSHION, FRONT

45149-42F00

$8.42

9

CUSHION

09321-10011

$2.91

10

STRIKER This part replaces 45290-42F01.

45290-42F02

$36.72

11

NUT

09148-06018

$3.16

12

CUSHION

45213-31300

$2.81

13

NUT

08319-3106B

$2.45

14

COVER, SEAT LOWER | Includes Item(s) 15 - 17

45410-38G03-291

$70.30

15

CUSHION, SEAT LOWER COVER FR

45412-38G00

Unavailable

16

CUSHION, SEAT LOWER COVER RR

45413-38G00

Unavailable

17

NUT

09148-06018

$3.16

18

SCREW, SEAT LOWER COVER

09111-06066

$2.62

19

BOLT, SEAT LOWER COVER FR

01550-0612B

$2.39

20

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

21

SCREW

02122-0630B

$2.06

22

CABLE, SEAT LOCK

45280-33400

Unavailable

23

LOCK SET, SEAT

95700-14810

$107.30

24

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

25

PLATE, SEAT LOCK

45289-11F00

$6.20

26

TAPE,SEAT LOWER COVER

45414-38G00

Unavailable
