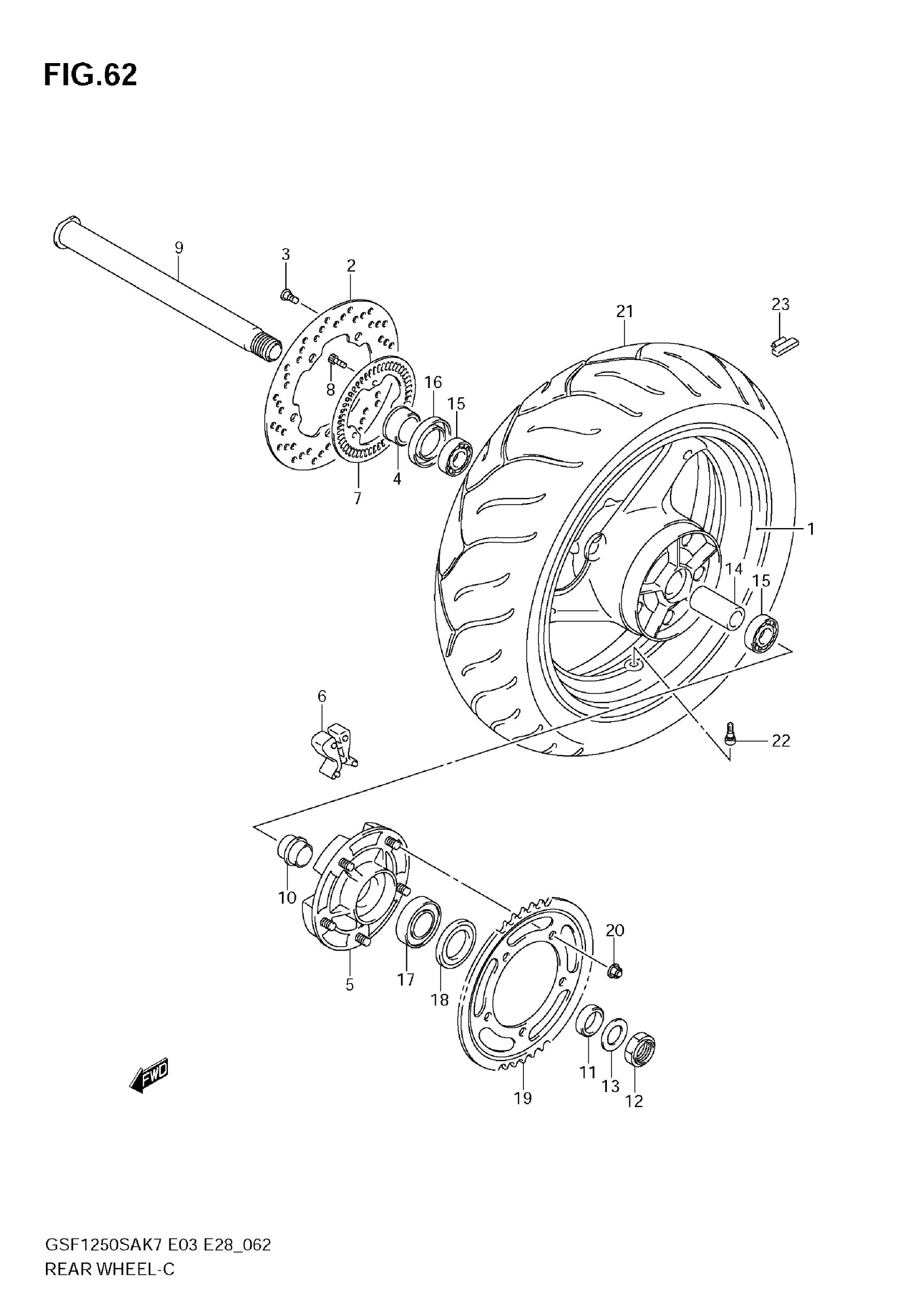

Suzuki GSF1250S (2009) REAR WHEEL (GSF1250SAK7/SAK8/SAK9) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50) (BLACK)

64111-49G10-019

Unavailable

2

DISC,RR BRAKE

69211-38G00

$303.38

3

BOLT

09106-08160

$3.57

4

SPACER, REAR AXLE RH

64741-49G00

Unavailable

5

DRUM, SPROCKET MOUNTING

64610-44G00

$312.13

6

ABSORBER, SHOCK REAR HUB

64651-44G00

$17.74

7

RING, SPEED SENSOR RR

54162-27G00

$140.15

8

BOLT

07130-05127

$3.15

9

AXLE,RR

64711-49G00

$143.45

10

RETAINER, REAR SPROCKET DRUM

64733-35F00

$26.61

11

SPACER, REAR AXLE LH

64751-49G00

$32.43

12

NUT

09159-25003

$31.85

13

WASHER

09160-25070

$4.77

14

SPACER

64731-49G00

$58.65

15

BEARING This part replaces 09262-28043.

09262-28063

$21.63

16

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

17

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

18

OIL SEAL (39X65X7)

09285-39001

$10.62

19

SPROCKET,RR (NT:43) This part replaces 64511-40F50.

64511-15H00

$135.45

20

NUT

08319-3110A

$2.73

21

TIRE, REAR, 180/55 ZR17M/C (73W) | D218N

65110-49G00

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23

BALANCER, WHEEL NO.1

55411-39G00

Unavailable

23

BALANCER, WHEEL NO.2

55412-39G00

Unavailable

23

BALANCER, WHEEL NO.3

55413-39G00

Unavailable
