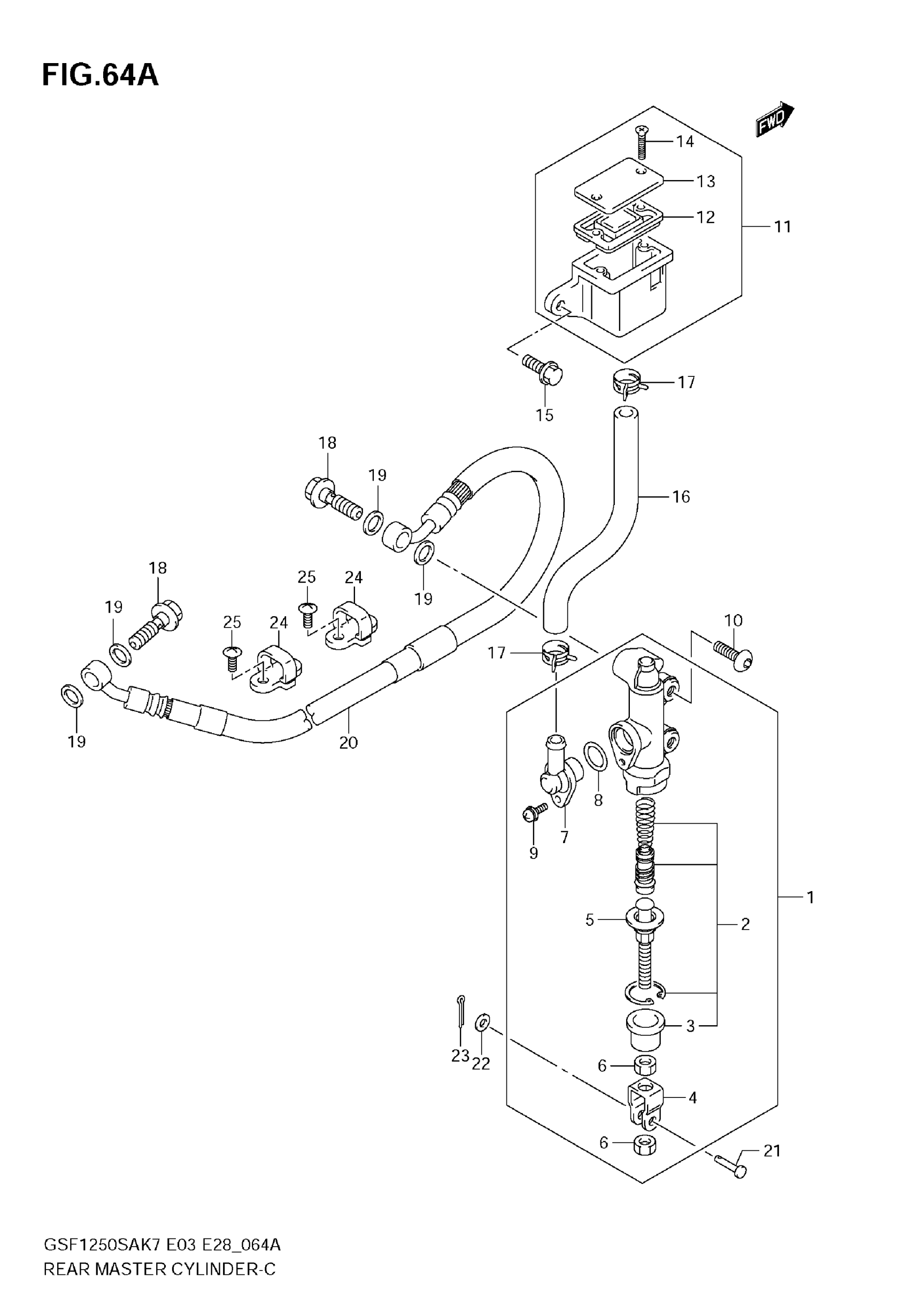

Suzuki GSF1250S (2009) REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-17C10

$312.98

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

SCREW

02112-7412A

$2.12

10

BOLT

09106-08167

$3.35

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-38B21

$103.83

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT

01547-0612B

$1.49

16

HOSE, RESERVOIR TANK

69731-31F00

$20.85

17

CLAMP

09401-13417

$2.26

18

BOLT (10X1.25X22)

09360-10062

$6.43

19

WASHER (10X15X1.5)

09161-10009

$1.84

20

HOSE ASSY, REAR BRAKE NO.2

69480-18H00

Unavailable

21

PIN

09200-06068

$4.11

22

WASHER

08322-0106B

$2.26

23

PIN, COTTER

04111-2015A

$1.49

24

GUIDE, RR BRAKE HOSE

61196-38G01

Unavailable

25

SCREW

02142-0616B

$1.78
