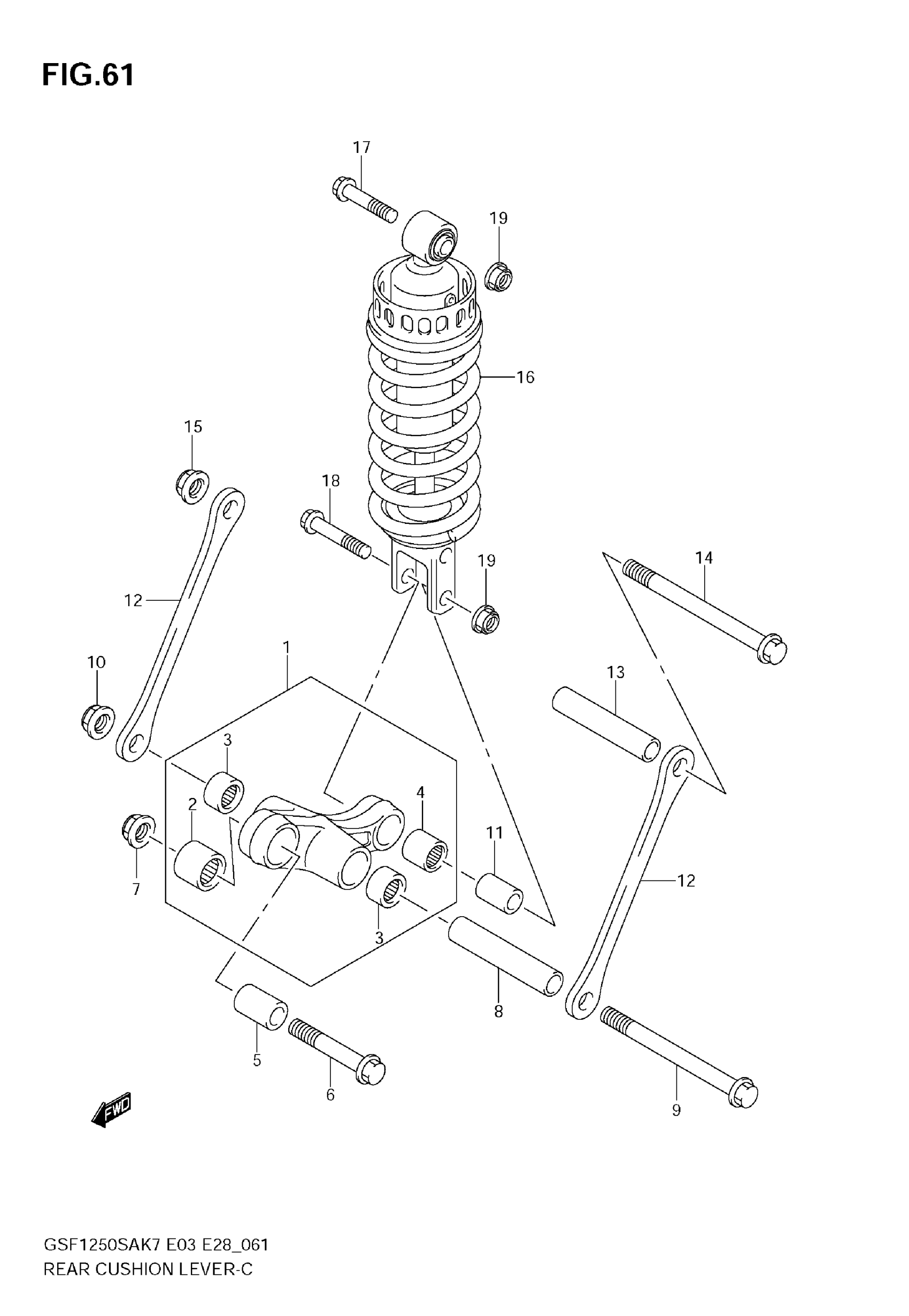

Suzuki GSF1250S (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-32850

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

SPACER, FRONT (12X20X30)

62684-01D00

$21.87

6

BOLT, FRONT (12X62)

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

SPACER, CENTER

62626-33D00

$19.40

9

BOLT, CENTER

62621-33D00

$26.95

10

NUT

09159-12056

$6.65

11

SPACER, REAR (10X17X30)

62684-40A10

$11.44

12

ROD, REAR CUSHION

62641-32F00

$35.23

13

SPACER, ROD

62626-33D00

$19.40

14

BOLT, ROD

62621-33D00

$26.95

15

NUT

09159-12056

$6.65

16

ABSORBER ASSY, REAR SHOCK | E28

62100-49G90

Unavailable

16

ABSORBER ASSY, REAR SHOCK | E3/E33

62100-49GH0

Unavailable

17

BOLT, UPPER

09103-10213

$6.27

18

BOLT, LOWER

09103-10143

$4.92

19

NUT

09159-10115

$3.21
