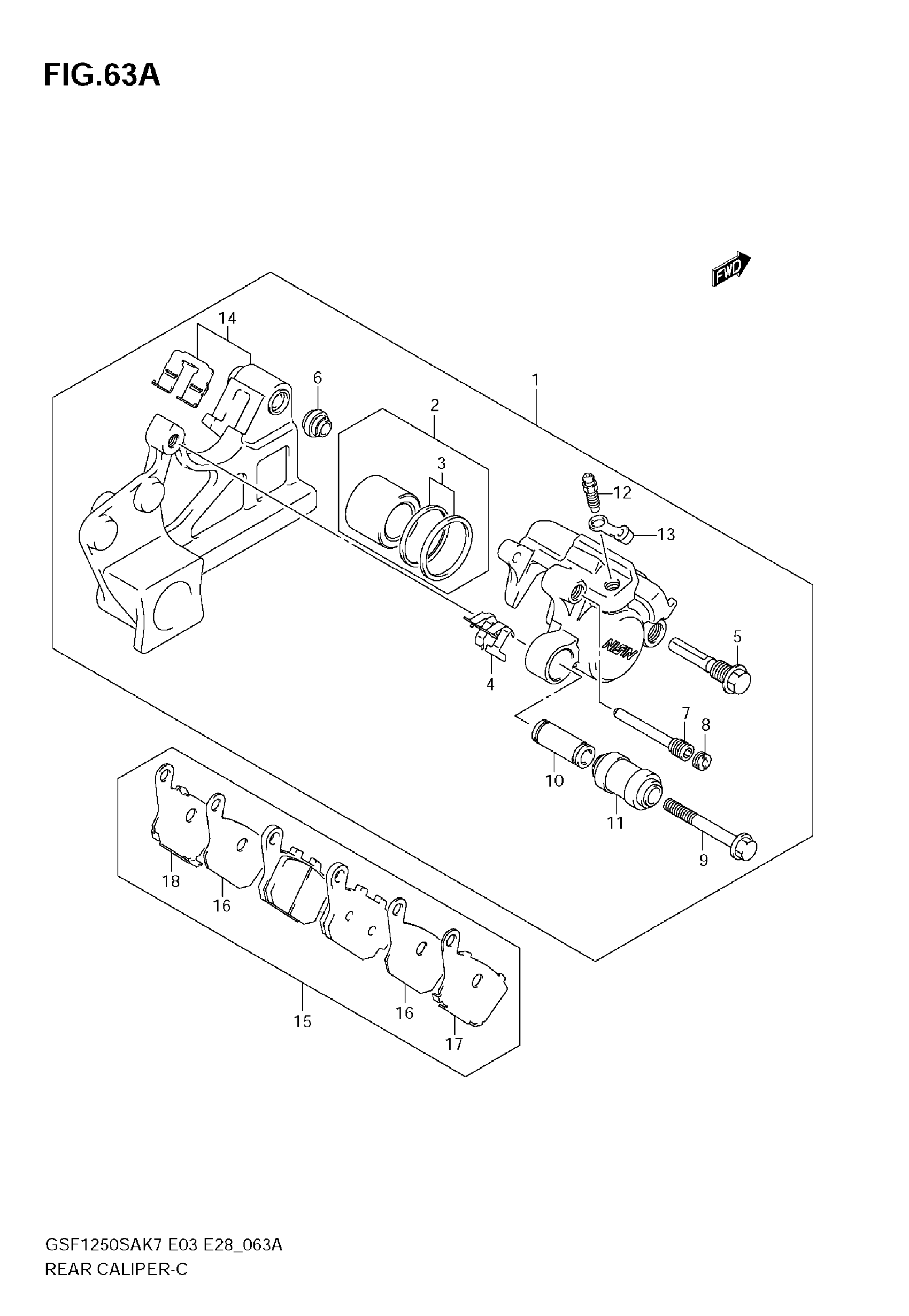

Suzuki GSF1250S (2009) REAR CALIPER (GSF1250SK7/SK8/SK9) Diagram

Description

Price

CALIPER ASSY, REAR | Includes Item(s) 2 - 14

69100-38G40-999

Unavailable

PISTON SET

69100-04810

$47.22

..SEAL SET,PISTON

69100-04820

$8.77

.SPRING,PAD

69115-06G00

$13.50

BOLT

69105-04F00

$14.08

BOOT

59303-14500

$5.52

PIN, HANGER

69141-40F00

$29.48

PLUG

59146-21E10

$6.15

BOLT

69182-04F00

$9.07

SLEEVE

69185-04F00

$18.50

.BOOT,SLEEVE

69186-04F00

$13.22

BLEEDER

59121-01A00

$8.73

CAP

59122-01A00

$4.34

BRACKET

69150-38G40

Unavailable

PAD & RETAINER SET | Includes Item(s) 16 - 18 This part replaces 69100-16851.

69100-16852

$63.44

INSULATOR

69132-06G00

$20.80

.RETAINER

69133-16G00

$16.78

.RETAINER

69134-16G00

$16.48
