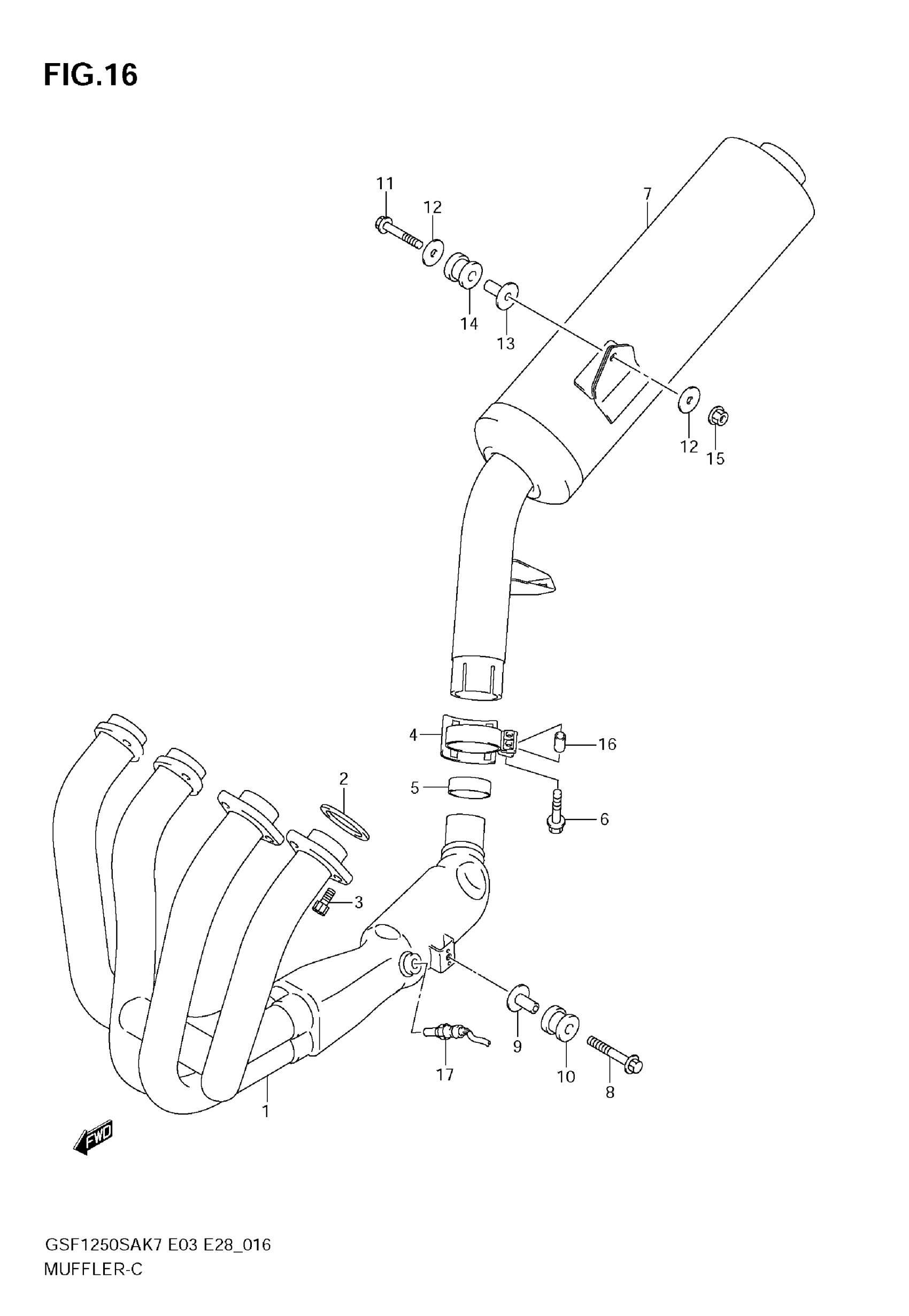

Suzuki GSF1250S (2009) MUFFLER Diagram

#

Description
Price

1

EXHAUST This part replaces 14100-18H10.

14100-18H13

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT (8X25)

09106-08165

$4.03

4

CLAMP

14469-18H00

$72.00

5

CONNECTOR

14771-18H10

$37.47

6

BOLT

09103-08392

$3.62

7

BODY,MUFFLER This part replaces 14310-18H01-H01.

14310-18H02-H01

Unavailable

8

BOLT

01550-0840A

$3.05

9

SPACER (8.6X12X24.2)

09180-08152

$5.83

10

CUSHION

09320-12048

$5.11

11

BOLT

09103-08358

$3.42

12

WASHER (8.6X36X2)

09160-08147

Unavailable

13

SPACER

09180-08216

$8.43

14

CUSHION, MUFFLER SUPPORT

09320-12049

$10.68

15

NUT

08361-2508A

$1.97

16

SPACER

14458-45G01

$6.92

17

SENSOR, OXYGEN This part replaces 18213-18H00.

18213-18H10

$388.57
