Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 5 This part replaces 35100-38G01-999.

35100-38G02-999

$389.78

2

NUT COWL

94484-24F00

$4.03

3

CORD ASSY

36118-38G00

Unavailable

4

SOCKET, COVER

35125-24F10

$22.27

5

ADAPTOR ASSY

35175-24F00

$18.50

6

BULB (12V55W H7)

09471-12188

$22.60

7

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

CUSHION

09320-09010

$2.84

10

NUT

08316-1006B

$2.50

11

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$15.23

12

BOLT (5X10)

09119-05023

$12.35

13

WASHER

08322-0105B

$2.26

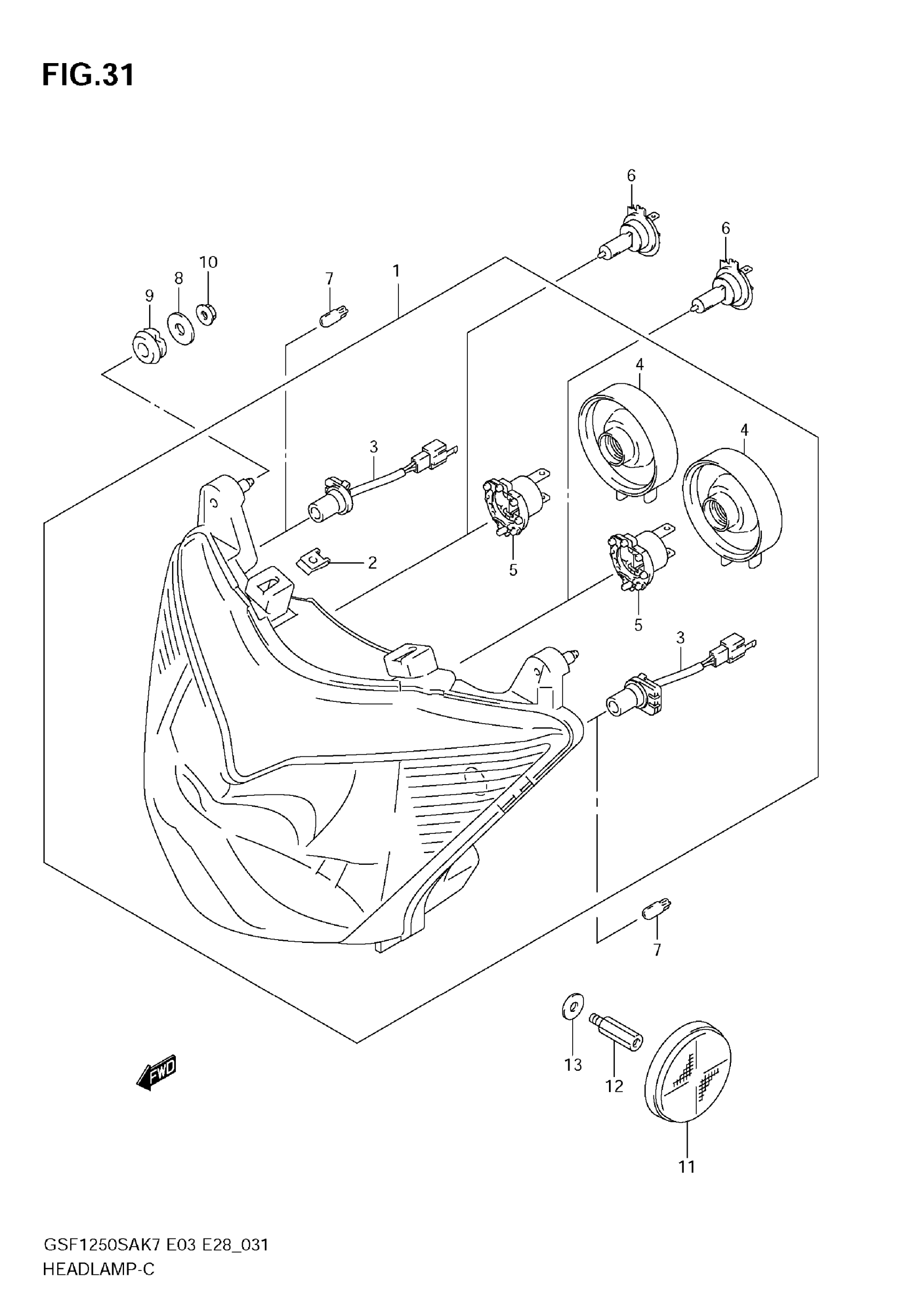

Suzuki GSF1250S (2009) HEADLAMP Diagram
