Description

Price

1

HANDLEBAR

56111-49G00

$204.47

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-38822.

56200-38824

$44.33

3

SCREW

09127-06018

$3.38

4

EXPANDER, OUTER

56272-19D00

Unavailable

5

SPACER

56276-17D00

$5.07

6

WASHER

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

8

NUT

56273-10G10

$8.65

9

MIRROR, REAR VIEW RH

56500-38G21

$173.21

10

MIRROR, REAR VIEW LH

56600-38G21

$173.21

11

CUSHION

94576-24F00

$6.52

12

BOLT

07130-0616B

$2.39

13

CAP

09250-05009

$2.19

14

CABLE ASSY, THROTTLE NO.1

58300-18H20

$72.82

15

CABLE ASSY, THROTTLE NO.2

58300-18H30

$72.82

16

GUIDE, THROTTLE CABLE

58631-38G00

Unavailable

17

SCREW

09125-05042

$1.96

18

GUIDE, THROTTLE CABLE

58621-18H00

Unavailable

19

GUIDE, CABLE

58622-38G00

Unavailable

20

BOLT, GUIDE RH

01550-0620A

$1.97

21

BOLT, GUIDE

01550-0612A

$1.97

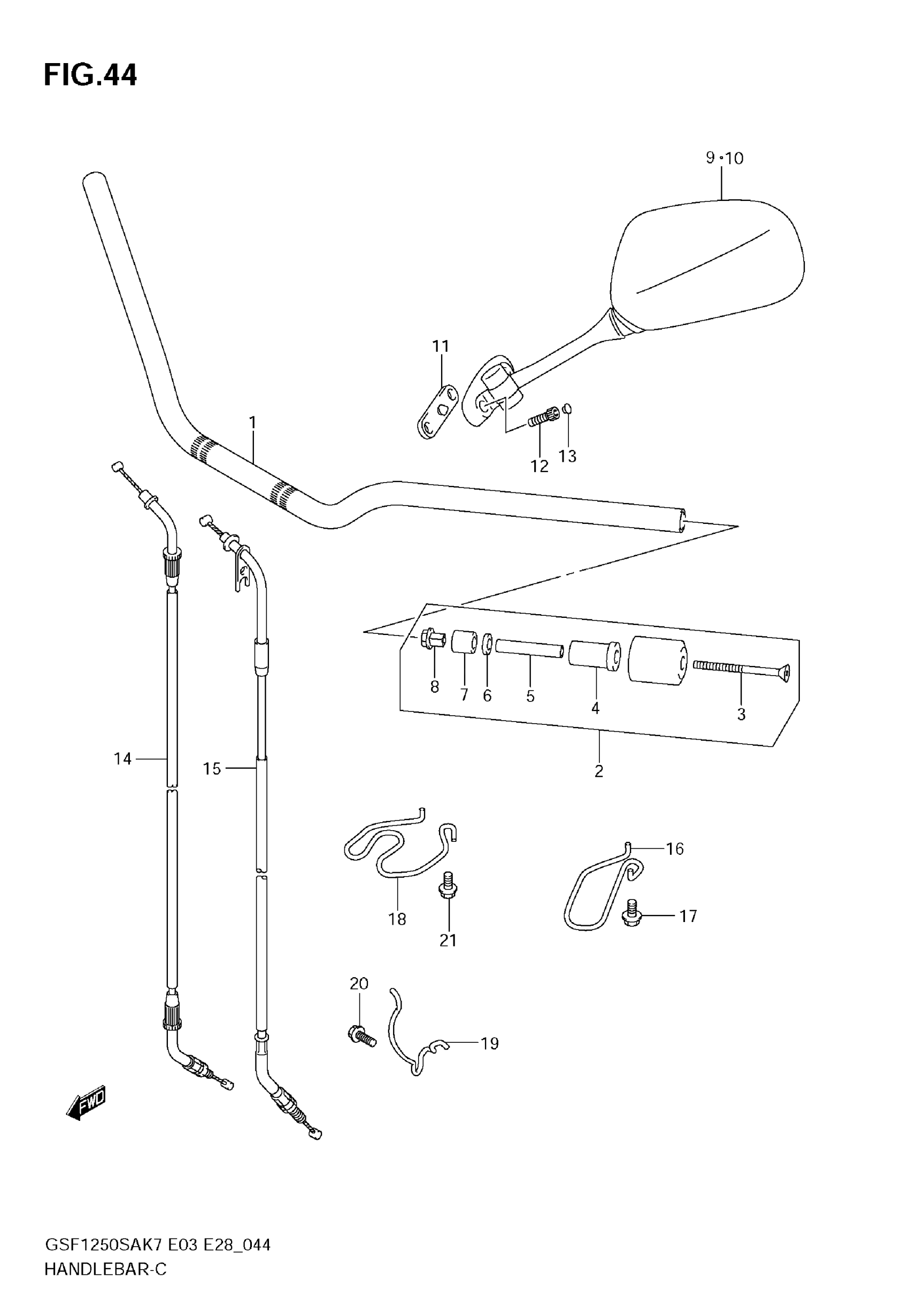

Suzuki GSF1250S (2009) HANDLEBAR Diagram

HANDLEBAR

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-38822.

SCREW

EXPANDER, OUTER

SPACER

WASHER

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

NUT

MIRROR, REAR VIEW RH

MIRROR, REAR VIEW LH

CUSHION

BOLT

CAP

CABLE ASSY, THROTTLE NO.1

CABLE ASSY, THROTTLE NO.2

GUIDE, THROTTLE CABLE

SCREW

GUIDE, THROTTLE CABLE

GUIDE, CABLE

BOLT, GUIDE RH

BOLT, GUIDE
