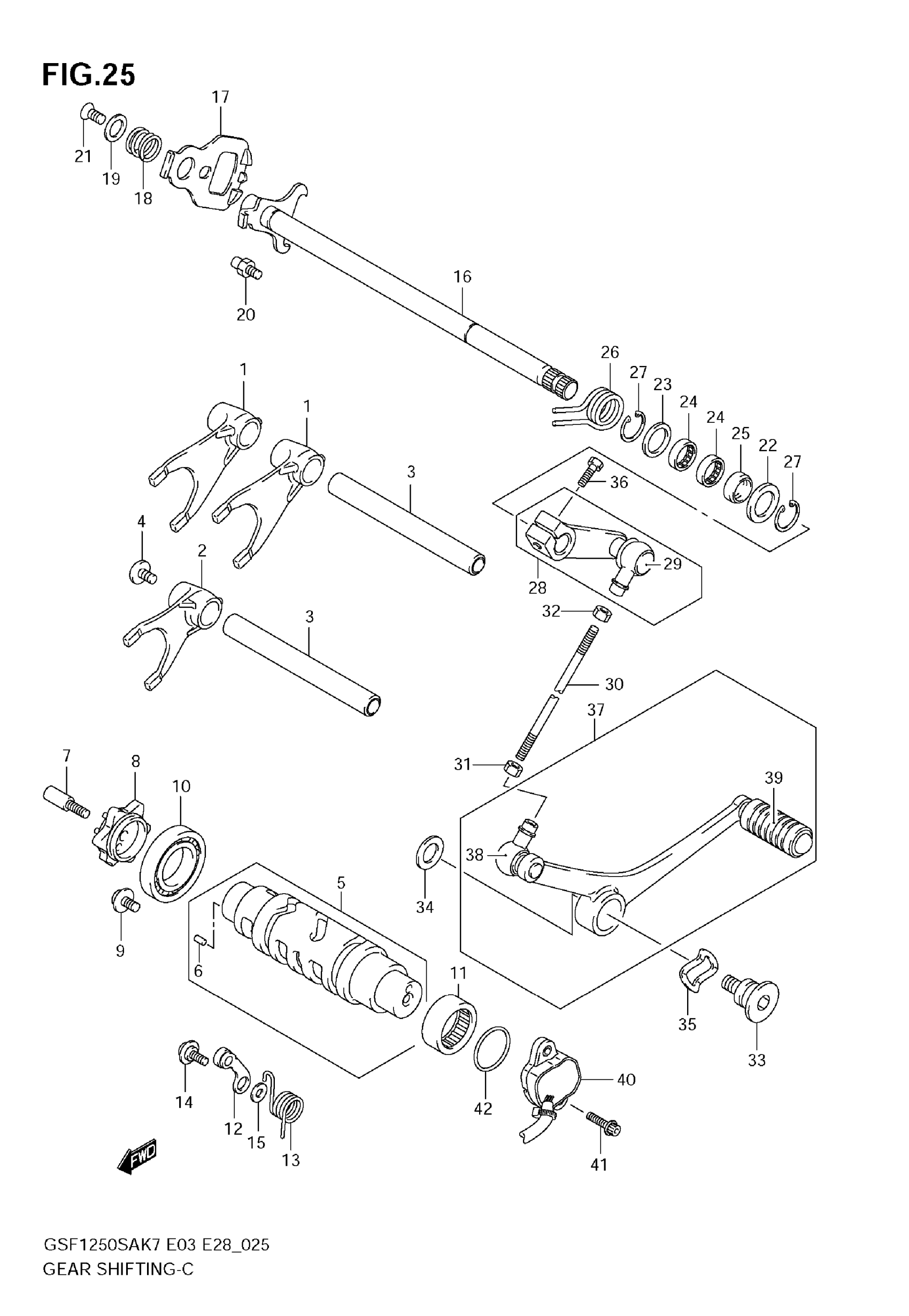

Suzuki GSF1250S (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.1 | MODEL K7/K8 This part replaces 25211-01H00.

25211-01H01

$105.82

1

FORK, GEAR SHIFT NO.1 | MODEL K9

25211-01H01

$105.82

2

FORK,GEAR SHIFT NO.3 | MODEL K7/K8 This part replaces 25231-01H00.

25231-01H02

$78.68

2

FORK,GEAR SHIFT NO.3 | MODEL K9 This part replaces 25231-01H01.

25231-01H02

$78.68

3

SHAFT, GEAR SHIFT FORK (L:128)

25411-27A00

$29.25

4

SCREW, GEAR SHIFT RTNR | 6X12

09136-06147

$3.20

5

CAM, GEAR SHIFT | Includes Item(s) 6

25310-18H00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

BOLT, GEAR SHIFT CAM

25312-42F01

$7.95

8

PLATE, GEAR SHIFT CAM

25381-13E30

$56.68

9

SCREW, GEAR SHIFT RTNR | 6X12

09136-06147

$3.20

10

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$25.54

11

BEARING, GEAR SHIFT, L | 25X32X12

09263-25018

$21.39

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

13

SPRING,GEAR SHIFT CAM STOPPER

25355-18H00

Unavailable

14

BOLT, SHIFT CAM | 6X14.3

09111-06041

$2.61

15

WASHER, CAM STOPPER

08211-06141

$1.59

16

SHAFT, GEAR SHIFT

25510-18H00

Unavailable

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

18

SPRING, GEAR SHIFT RETURN

25518-01H00

$3.70

19

WASHER, GEAR SHIFT END

25519-01H00

$5.98

20

STOPPER, GEAR SHIFT

25671-01011

$4.48

21

BOLT, GEAR SHIFT END | 6X16

09126-06014

$2.06

22

WASHER, GEAR SHIFT, L | 14X29X0.8

09160-14016

$1.93

23

WASHER, GEAR SHIFT | 14X24X1.0

09181-14195

$2.71

24

BEARING, GEAR SHIFT | 14X20X12

09263-14027

$13.52

25

SEAL, GEAR SHIFT OIL | 14X22X6

09283-14006

$6.70

26

SPRING, SHIFT SHAFT RETURN

09444-20001

$5.24

27

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.91

28

ARM, GEAR SHIFT LINK | Includes Item(s) 29

25520-18H00

Unavailable

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

30

ROD, GEAR SHIFT LINK

25525-05A10

$10.91

31

NUT, GEAR SHIFT LINK, L

09140-06025

$2.05

32

.NUT

08310-00067

$2.13

33

BOLT,GEAR SHIFT LEVER

25617-18H00

$30.70

34

WASHER, GEAR SHIFT LEVER | 10.5X28X2.3

09160-10035

$1.78

35

WASHER, GEAR SHIFT WAVE

09164-18009

$2.38

36

BOLT, GEAR SHIFT LINK ARM

01500-0620A

$1.78

37

LEVER ASSY,GEAR | Includes Item(s) 38 - 39 This part replaces 25600-18H00.

25600-18H01

$82.58

38

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

39

RUBBER

25652-20C00

$5.44

40

SENSOR ASSY,GEA This part replaces 37730-18H01.

37730-18H03

$83.58

41

BOLT, GEAR SHIFT SW | 5X16

09106-05023

$2.92

42

O RING (D:2.40,ID:26.2)

09280-26005

$2.30
