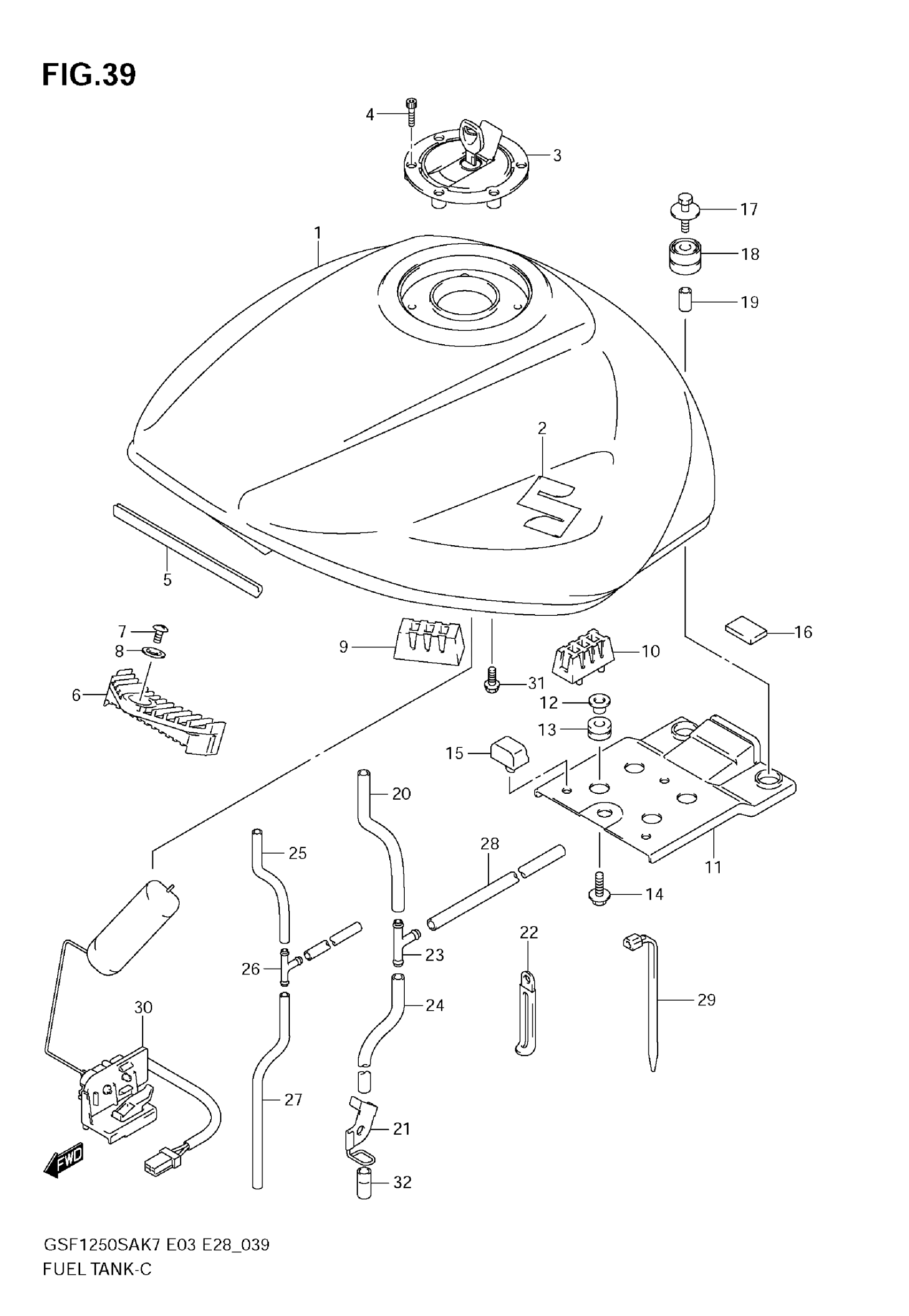

Suzuki GSF1250S (2009) FUEL TANK (MODEL K7/K8) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-18H00-YAY

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28

44100-18H00-YHL

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K7 E3,E28

44100-18H00-YLE

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8 E3,E28

44100-18H00-YBA

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K8 E3,E28

44100-18H00-YHG

Unavailable

1

TANK ASSY,FUEL( | E33 This part replaces 44100-18H20-YAY.

44100-18H51-YAY

$1,404.12

1

TANK ASSY, FUEL (RED) | E33

44100-18H20-YHL

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K7 E33

44100-18H20-YLE

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8 E33

44100-18H20-YBA

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K8 E33

44100-18H20-YHG

Unavailable

2

EMBLEM, "S"

68111-18G20

$32.30

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT

09106-05017

$2.83

5

MOLDING

68241-04X50-300

$7.32

6

CUSHION, FRONT

44511-27E00

$12.48

7

SCREW

02142-0510B

$1.78

8

WASHER

09169-05012

$2.38

9

CUSHION, SIDE

45149-45330

$3.89

10

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

11

BRACKET, REAR

44141-38G00

Unavailable

12

WASHER, LOWER

09169-06062

$2.50

13

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

14

BOLT

09116-06192

$2.30

15

CUSHION

45149-21G00

Unavailable

16

CUSHION

47163-10FA0

$4.55

17

BOLT

09116-06172

$2.50

18

CUSHION,FUEL TA This part replaces 44541-38G00.

44541-38G01

$5.22

19

SPACER

09180-06271

$2.35

20

HOSE,WATER DRAI This part replaces 44423-16G10.

44423-16G11

$10.25

21

GUIDE, DRAIN HOSE

44480-18H00

Unavailable

22

CLAMP

09404-10417

$2.72

23

3 WAY, DRAIN HOSE

09367-08004

$4.83

24

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

25

HOSE,VACUUM This part replaces 44424-38G00.

44425-09E01

$11.28

26

.JOINT,3 WAY

09367-06002

$2.50

27

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

28

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

29

CLAMP

09407-14403

$2.26

30

GAUGE ASSY,FUEL This part replaces 34810-18H00.

34810-18H01

$111.66

31

BOLT

01500-0612A

$1.78

32

HOSE & DRAIN (L:600!10) | MODEL K8

09352-13162-600

$24.87
