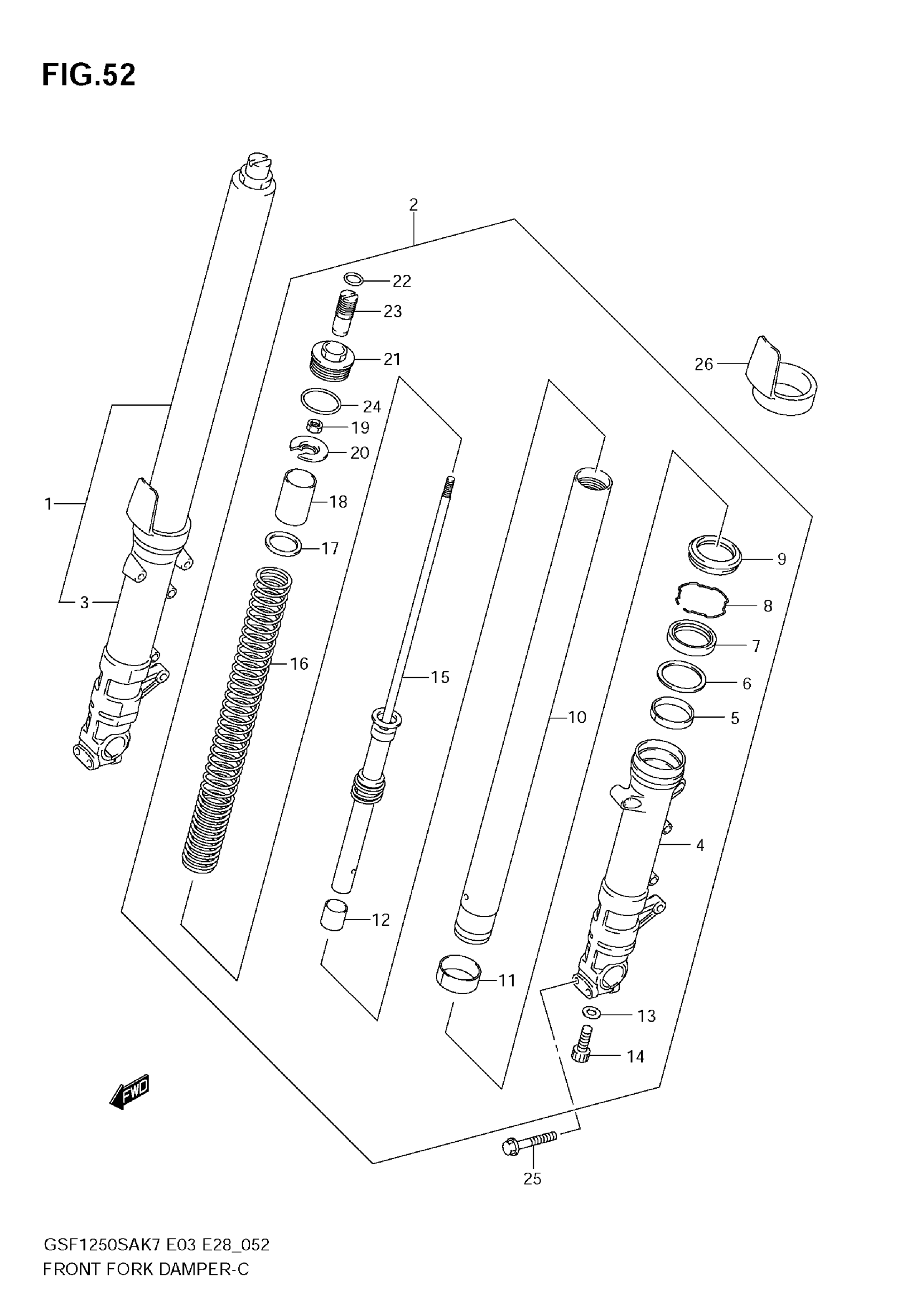

Suzuki GSF1250S (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH (SILVER)

51103-49G80

Unavailable

1

DAMPER ASSY, FRONT FORK RH (BLACK)

51103-49GA0

$1,541.07

2

DAMPER ASSY, FRONT FORK LH (SILVER)

51104-49G80

Unavailable

2

DAMPER ASSY, FRONT FORK LH (BLACK) | Includes Item(s) 3 - 24

51104-49GA0

Unavailable

3

TUBE, OUTER RH (SILVER)

51131-49G70

Unavailable

3

TUBE, OUTER RH (BLACK)

51131-49G90

Unavailable

4

TUBE, OUTER LH (SILVER)

51141-49G70

Unavailable

4

TUBE, OUTER LH (BLACK)

51141-49G90

Unavailable

5

BUSH, GUIDE

51152-03F00

$22.22

6

.SPACER, SEAL

51168-17C00

$6.28

7

SEAL, OIL

51153-27G00

$23.07

8

RING, STOPPER

51556-38B00

$7.22

9

.SEAL, DUST

51173-27G00

$26.58

10

TUBE, INNER

51110-49G00

Unavailable

11

BUSH, SLIDE

51121-13E00

$18.28

12

PIECE, OIL LOCK

51195-31E00

$30.22

13

GASKET

51148-36011

$3.56

14

BOLT

51147-48130

$4.34

15

ROD, DAMPER

52110-49G80

Unavailable

16

SPRING, FRONT

51171-49G70

Unavailable

17

SEAT, SPRING LOWER

51186-17C00

$7.53

18

COLLAR, SPRING

51176-12C10

$13.92

19

.NUT

51827-27E00

Unavailable

20

SEAT, SPRING UPPER

51172-17C00

$14.20

21

BOLT, FORK

51189-14D00

Unavailable

22

O RING

09280-14011

$4.77

23

ADJUSTER, SPRING

51185-31E00

Unavailable

24

O RING

51117-17C00

$5.95

25

BOLT

51166-03FK0

Unavailable

26

PROTECTOR

51201-32F00

$20.95
