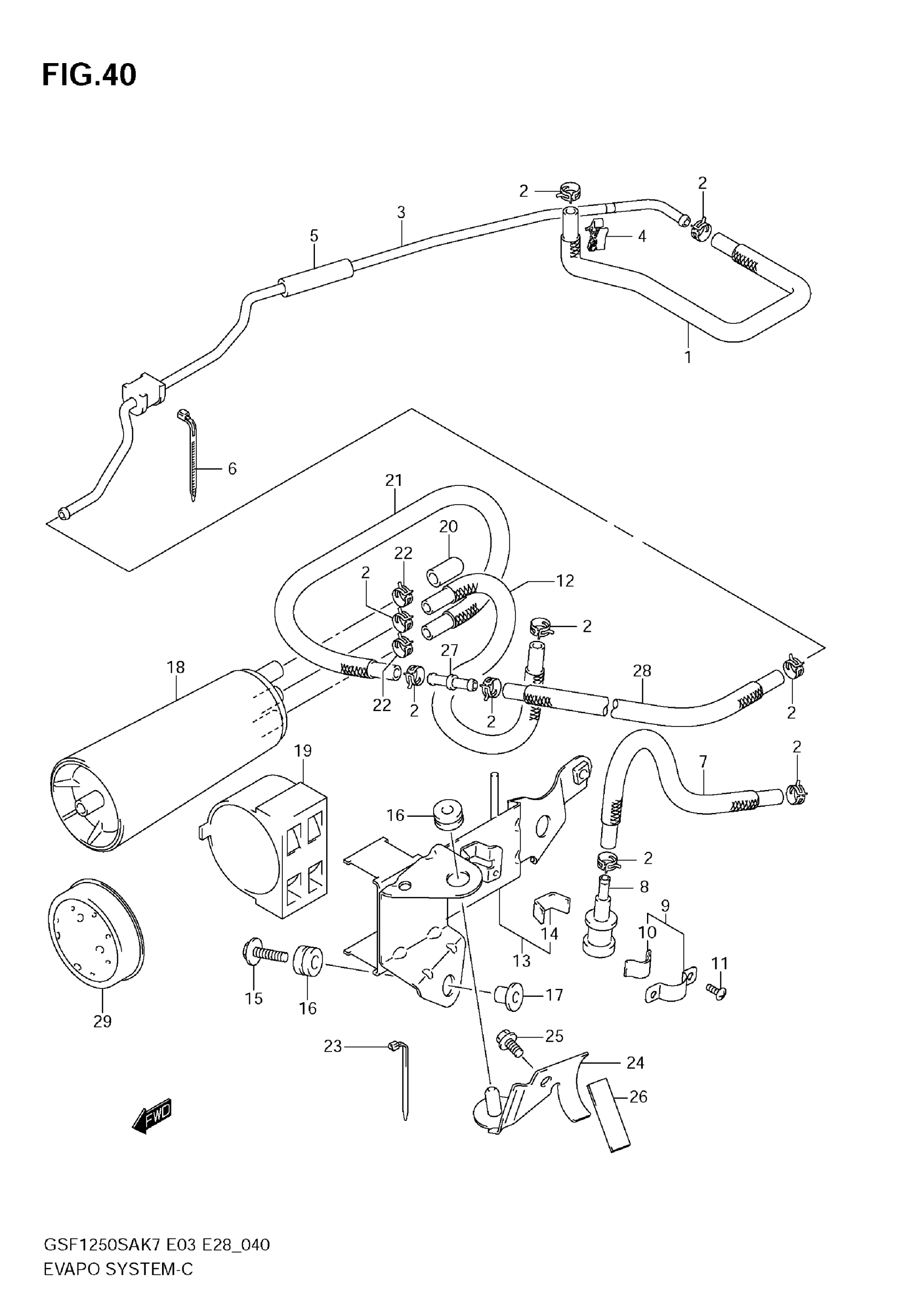

Suzuki GSF1250S (2009) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & PIPE | MODEL K7

44434-18H00

Unavailable

1

HOSE, TANK & PIPE | MODEL K8/K9

44434-18H20

Unavailable

2

CLIP

09401-11413

$2.26

3

PIPE, TANK & VALVE

44950-18H00

Unavailable

4

CLAMP

09403-06325

Unavailable

5

CUSHION

53146-05G00

$7.27

6

CLAMP

09407-14407

$3.57

6

CLAMP

09407-11401

$2.63

7

HOSE, PIPE & VALVE | MODEL K7

44434-18H10

Unavailable

7

HOSE, PIPE & VALVE | MODEL K8/K9

44434-18H30

Unavailable

8

VALVE, BREATHER

44240-38A00

$61.15

9

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 10

44892-24A00

$4.52

10

CUSHION (10X30X2)

44894-24A00

$1.72

11

SCREW

02142-0410B

Unavailable

12

HOSE, BREATHER | MODEL K7

44435-49G00

Unavailable

12

HOSE, BREATHER | MODEL K8/K9

44435-49G10

Unavailable

13

BRACKET, CANISTER | Includes Item(s) 14

44880-18H00

Unavailable

14

CUSHION (10X30X2)

44894-24A00

$1.72

15

BOLT

09116-06150

$2.59

16

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

17

SPACER

09169-06062

$2.50

18

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

19

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

20

CAP

09251-07003

$2.53

21

HOSE, PURGE | MODEL K7

44436-18H00

Unavailable

21

HOSE, PURGE | MODEL K8/K9

44436-18H20

Unavailable

22

CLIP

09401-12404

$2.34

23

CLAMP

09403-12411

Unavailable

24

BRACKET

44890-49G00

Unavailable

25

BOLT

01550-0616B

$2.48

26

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$4.82

27

JOINT

09367-06009

Unavailable

28

HOSE, CARB | MODEL K7

44436-18H10

Unavailable

28

HOSE, CARB | MODEL K8/K9

44436-18H30

Unavailable

29

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52
