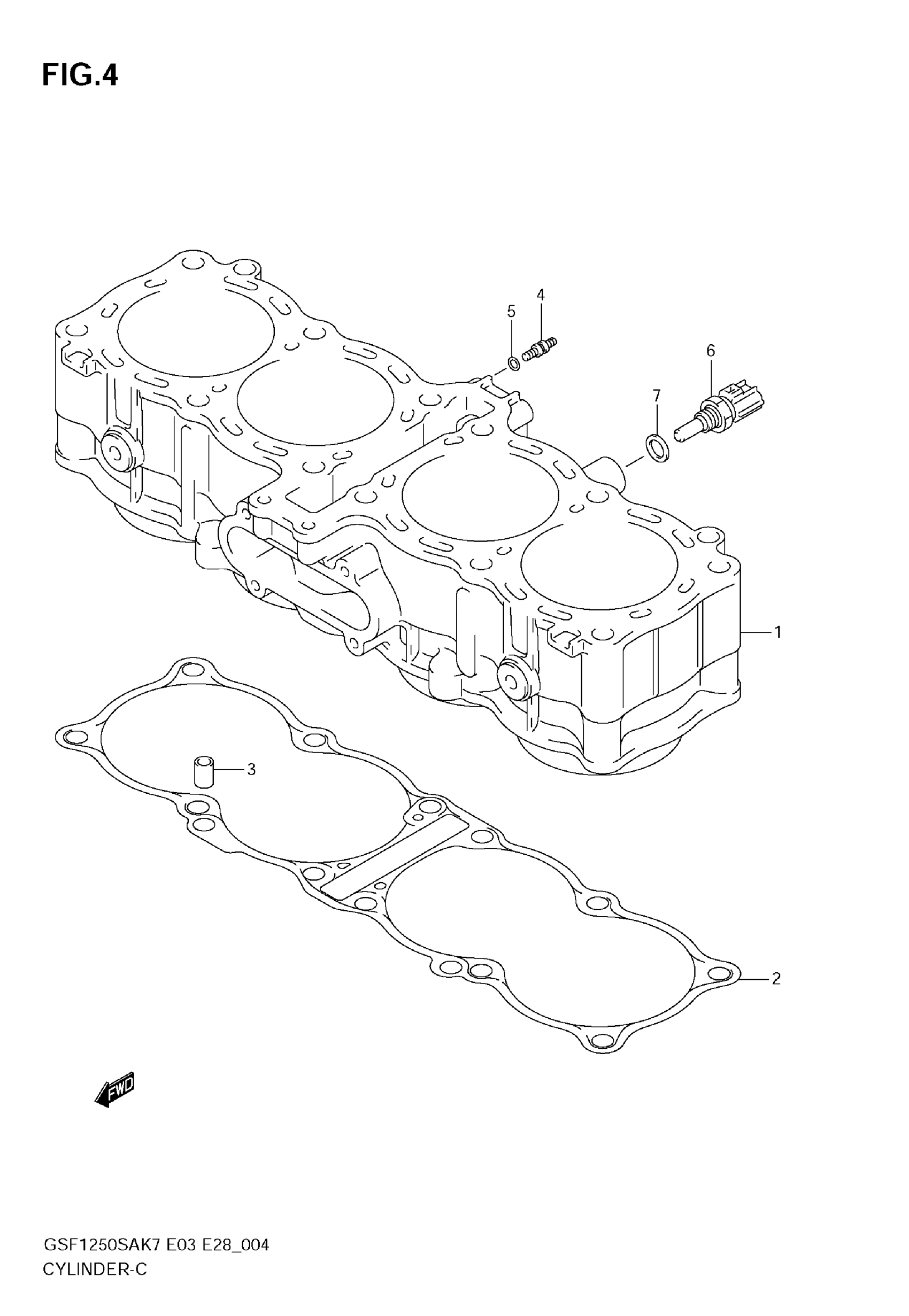

Suzuki GSF1250S (2009) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-18H00-0F0

Unavailable

2

GASKET, CYLINDER

11241-18H00

$45.70

3

PIN

04211-11169

$1.77

4

JET, OIL GALLERY

09493-80005

$17.57

5

O RING

09280-04004

$1.76

6

SENSOR, WATER TEMP

13650-49X00

$82.56

7

GASKET

09168-12017

$1.97
