2009 Suzuki GSF1250S CAM Chain Diagram

← All diagrams

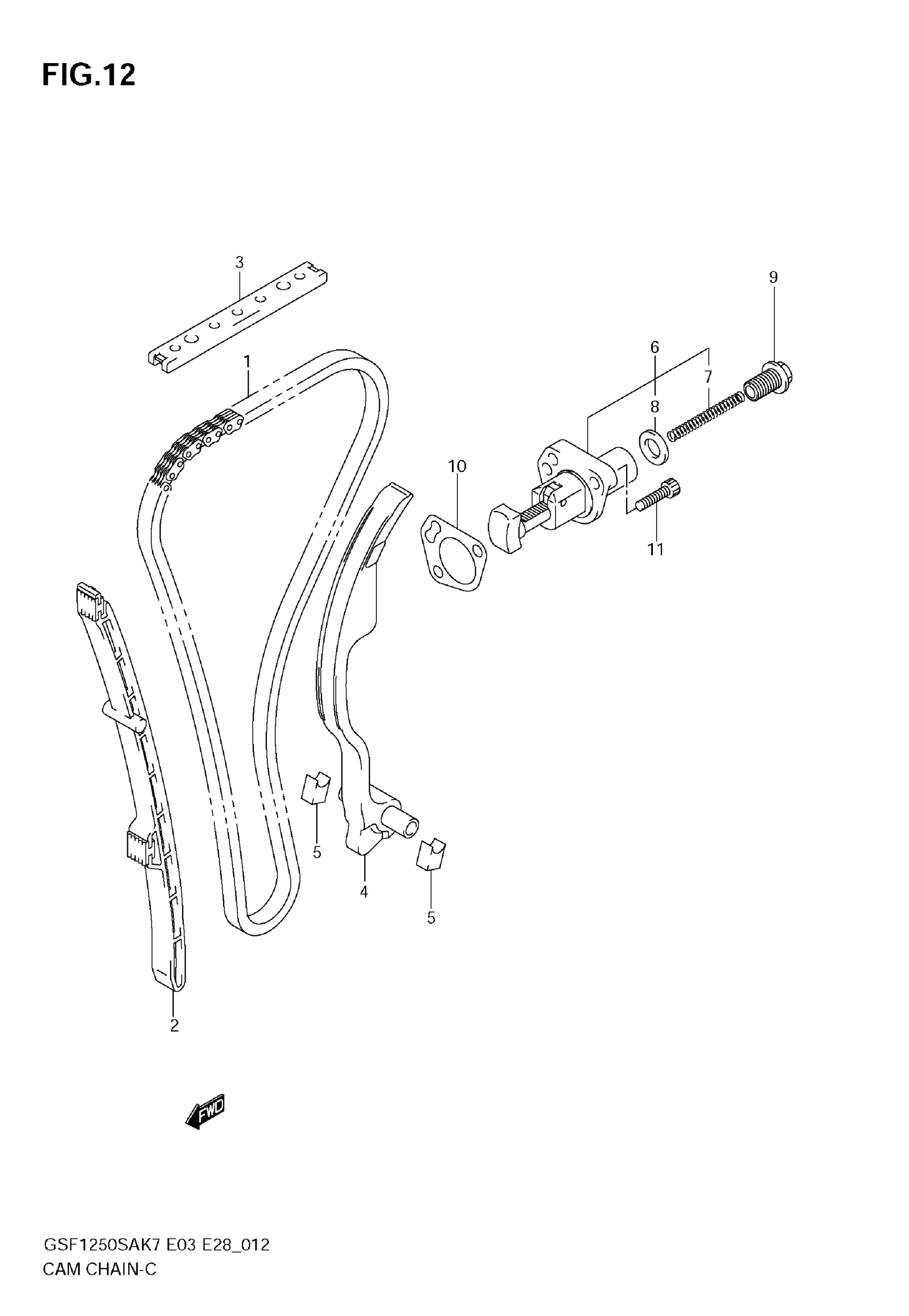

Find the part on the CAM Chain diagram for your 2009 Suzuki GSF1250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSF1250S CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE

12760-18H00

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-18H00.

12771-18H01

1
Out of stock

3

GUIDE,CAM CHAIN This part replaces 12782-18H00.

12782-18H01

1
Out of stock

4

TENSIONER, CAM CHAIN

12810-18H00

1
Out of stock

5

CUSHION

12814-34200

2
Out of stock

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 8

12834-48G00

1
Out of stock

7

SPRING

12831-35F00

1
Out of stock

8

GASKET

12837-24F10

1
Out of stock

9

PLUG

12833-17G00

1
Out of stock

10

GASKET, ADJUSTER

12837-27G00

1
Out of stock

11

BOLT

07130-0625B

2
Out of stock
