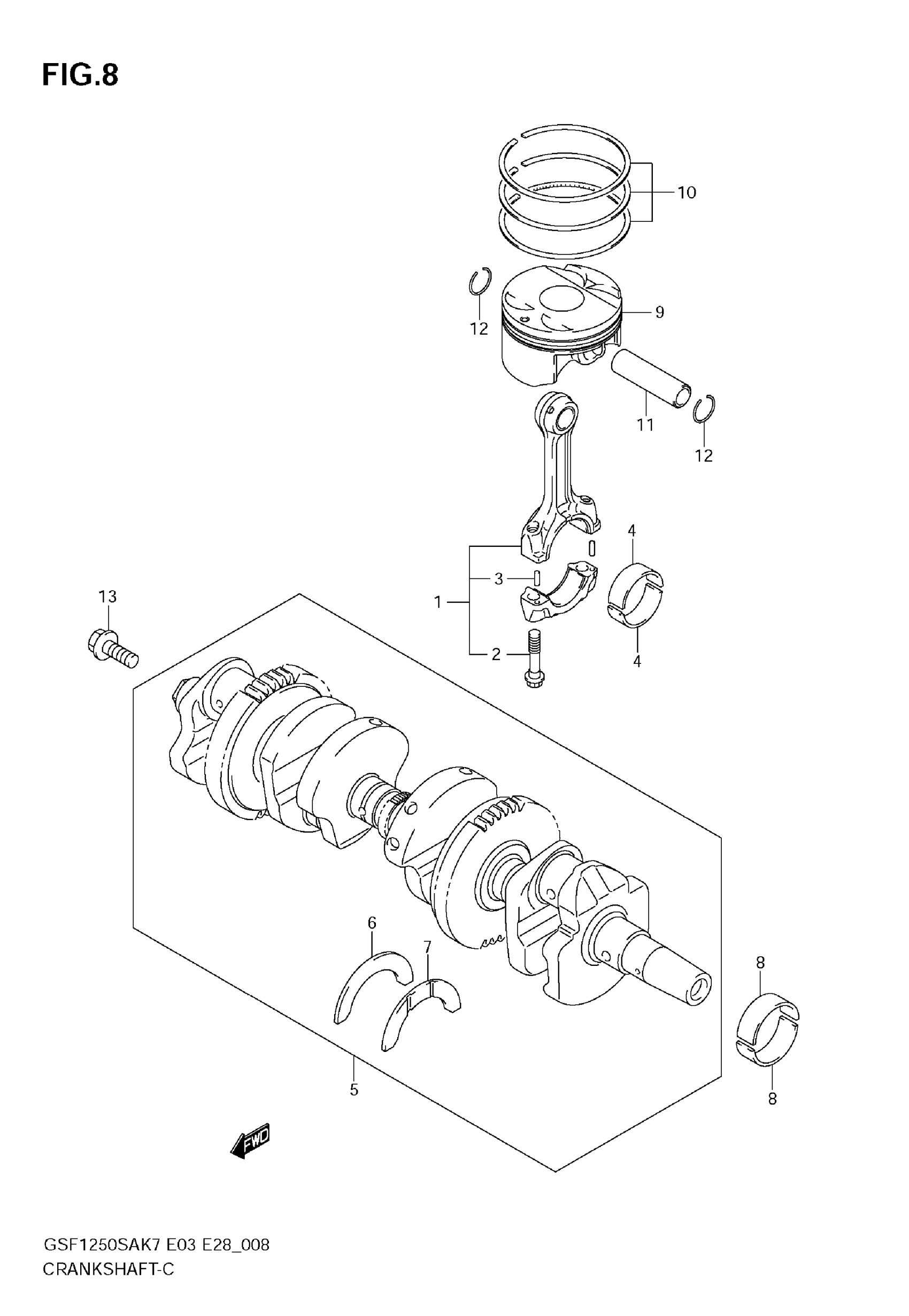

Suzuki GSF1250S (2009) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-18H00

Unavailable

2

.BOLT,CONNECTING ROD

12163-24F10

$16.45

3

PIN (4X13.8)

04221-04089

$1.49

4

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

$16.80

4

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

$16.80

4

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

$17.30

4

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

$17.30

5

CRANKSHAFT SET | Includes Item(s) 6 - 7

12000-18820

Unavailable

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN)

12229-34E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK)

12229-34E00-0B0

$21.92

8

BEARING, CRANKSHAFT (BROWN)

12229-34E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW)

12229-34E00-0D0

$18.64

9

PISTON

12111-18H00-0F0

Unavailable

10

RING SET, PISTON

12140-18H00

Unavailable

11

PIN, PISTON

12151-07D00

$18.43

12

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90

13

BOLT

01550-1016A

$3.10
