Description

Price

1

CYL ASSY,CLUTCH | Includes Item(s) 2 - 12 This part replaces 59800-32F10.

59800-32F12

$402.78

2

PISTON/CUP SET

59800-08810

$36.14

3

BOOT

59666-44300

$5.30

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.50

5

BUSH

59892-08A00

$4.63

6

DIAPHRAGM

59667-49460

$8.95

7

PLATE

59668-41C00

$8.54

8

CAP

59669-10G00

$43.22

9

SCREW

69689-49300

$1.81

10

PROTECTOR

59664-32F00

$13.20

11

.HOLDER

59671-36500

$11.50

12

BOLT

59675-02FA0

$3.49

13

BOLT (10X1.00X22)

09360-10061

$5.89

14

BOLT (10X1.25X22)

09360-10062

$5.81

15

WASHER (10X15X1.5)

09161-10009

$1.83

16

HOSE, CLUTCH

59910-18H00

Unavailable

17

CLAMP

09407-10403

Unavailable

18

CLAMP

59921-49G00

Unavailable

19

BOLT

01547-0616A

$2.01

20

CLAMP

09403-14304

$2.95

21

CLAMP

09403-09326

$3.42

22

CLAMP, CLUTCH HOSE NO.3

59915-49G00

Unavailable

23

BOLT

01550-0620A

$1.97

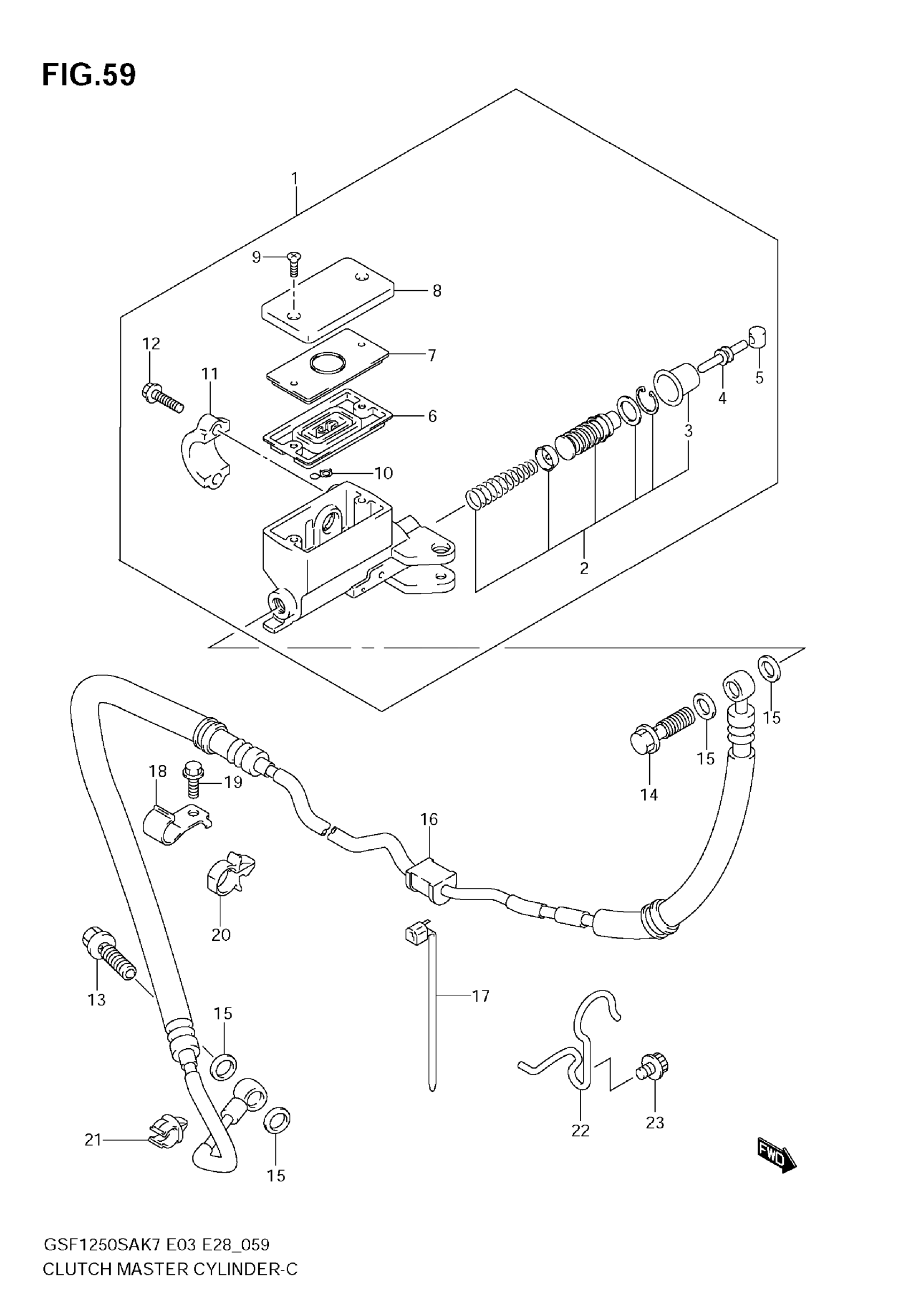

Suzuki GSF1250S (2009) CLUTCH MASTER CYLINDER Diagram

CYL ASSY,CLUTCH | Includes Item(s) 2 - 12 This part replaces 59800-32F10.

PISTON/CUP SET

BOOT

PUSH ROD This part replaces 59871-38A00.

BUSH

DIAPHRAGM

PLATE

CAP

SCREW

PROTECTOR

.HOLDER

BOLT

BOLT (10X1.00X22)

BOLT (10X1.25X22)

WASHER (10X15X1.5)

HOSE, CLUTCH

CLAMP

CLAMP

BOLT

CLAMP

CLAMP

CLAMP, CLUTCH HOSE NO.3

BOLT
