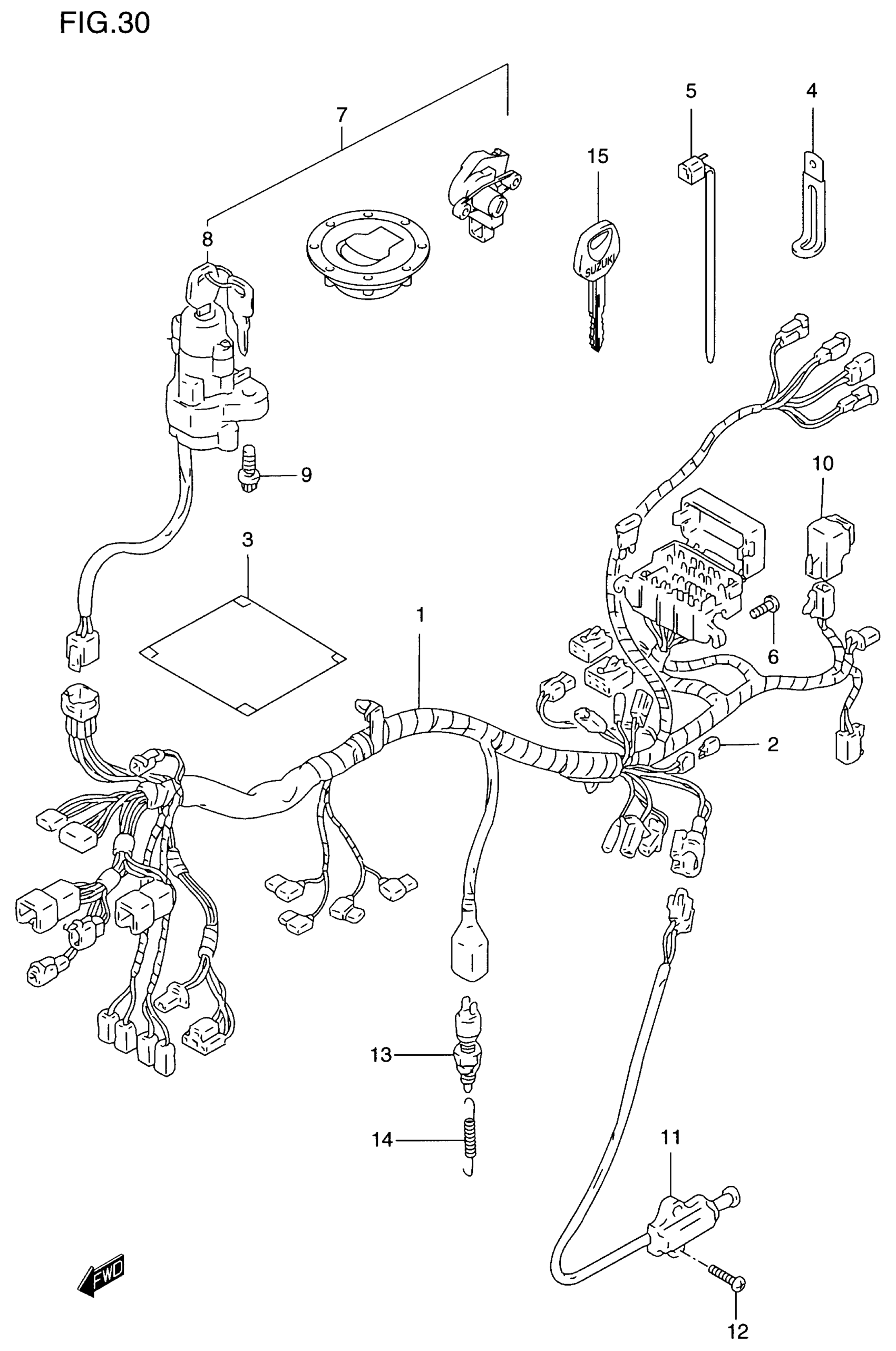

Suzuki GSF1200S (2000) WIRING HARNESS (GSF1200SV/SW/SX/SY) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-27E10

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

4

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

4

CLAMP (L:45) This part replaces 09404-08417.

09404-08211

$2.35

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

LOCK SET | E3 This part replaces 37103-33850.

37103-33851

Unavailable

7

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 8 This part replaces 37103-33860.

37103-33861

Unavailable

8

LOCK ASSY, STEERING

37100-33E01

Unavailable

9

SCREW (8X20)

09139-08016

$3.37

10

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

11

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

12

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

13

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

14

SPRING

09443-06054

$3.85

15

KEY, BLANK | OPT

37146-33E00

$21.21
