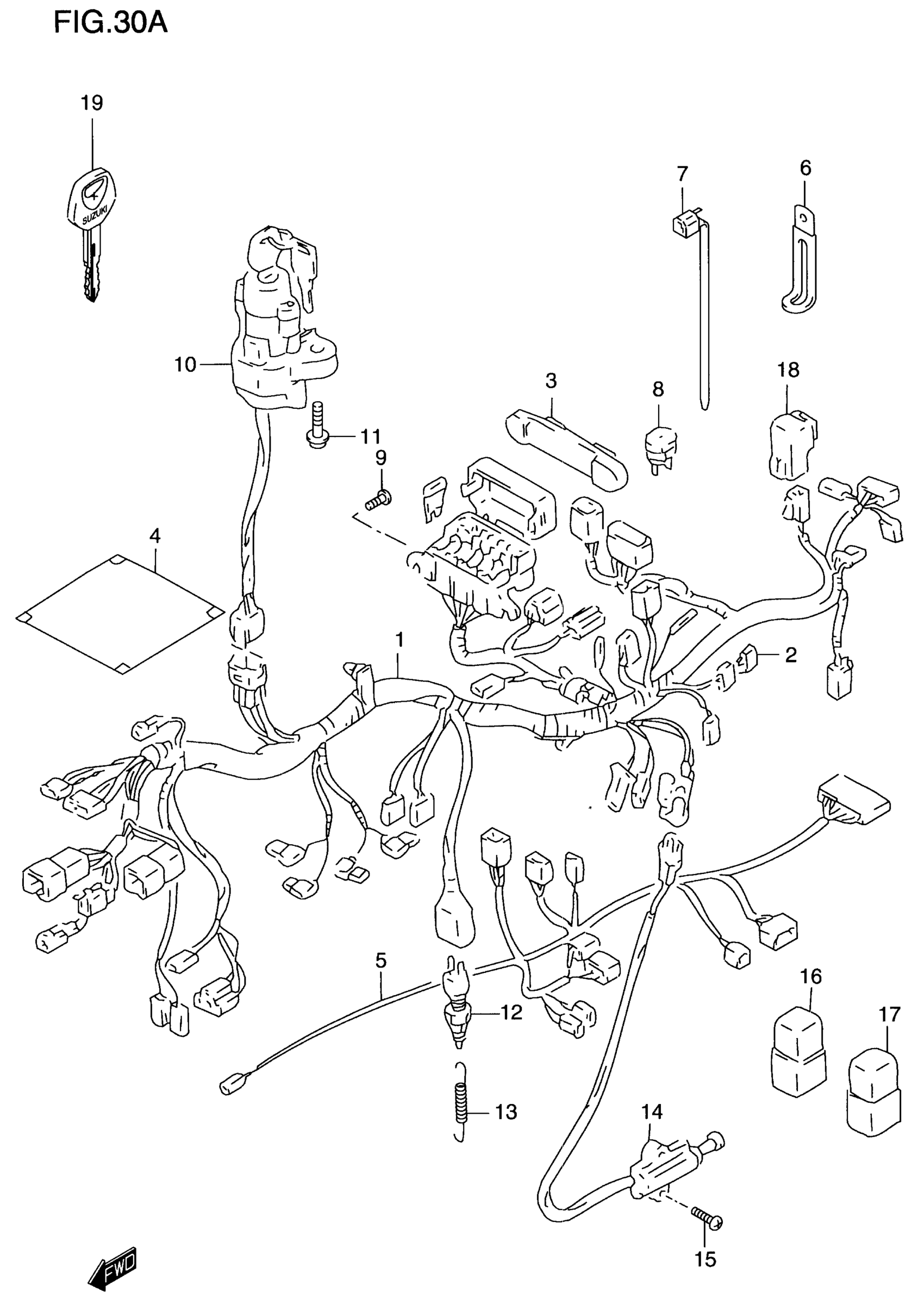

Suzuki GSF1200S (2000) WIRING HARNESS (GSF1200SAV) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-27EB0

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

HOLDER, FUSE BOX

36744-27E00

Unavailable

4

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

5

HARNESS, WIRING NO.2

36620-27EA0

Unavailable

6

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

6

CLAMP (L:45) This part replaces 09404-08417.

09404-08211

$2.35

7

CLAMP (L:95)

09407-11401

$2.63

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:235)

09407-25401

$4.66

8

BREATHER ASSY, CIRCUIT

36750-05A00

$44.50

9

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

10

LOCK ASSY, STEERING

37100-33E01

Unavailable

11

SCREW (8X20)

09139-08016

$3.37

12

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

13

SPRING

09443-06054

$3.85

14

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

15

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

16

RELAY ASSY, ABS MOTOR

38860-51E10

Unavailable

17

RELAY ASSY, ABS VALVE

38860-51E20

Unavailable

18

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

19

KEY, BLANK | OPT

37146-33E00

$21.21
