Partiron

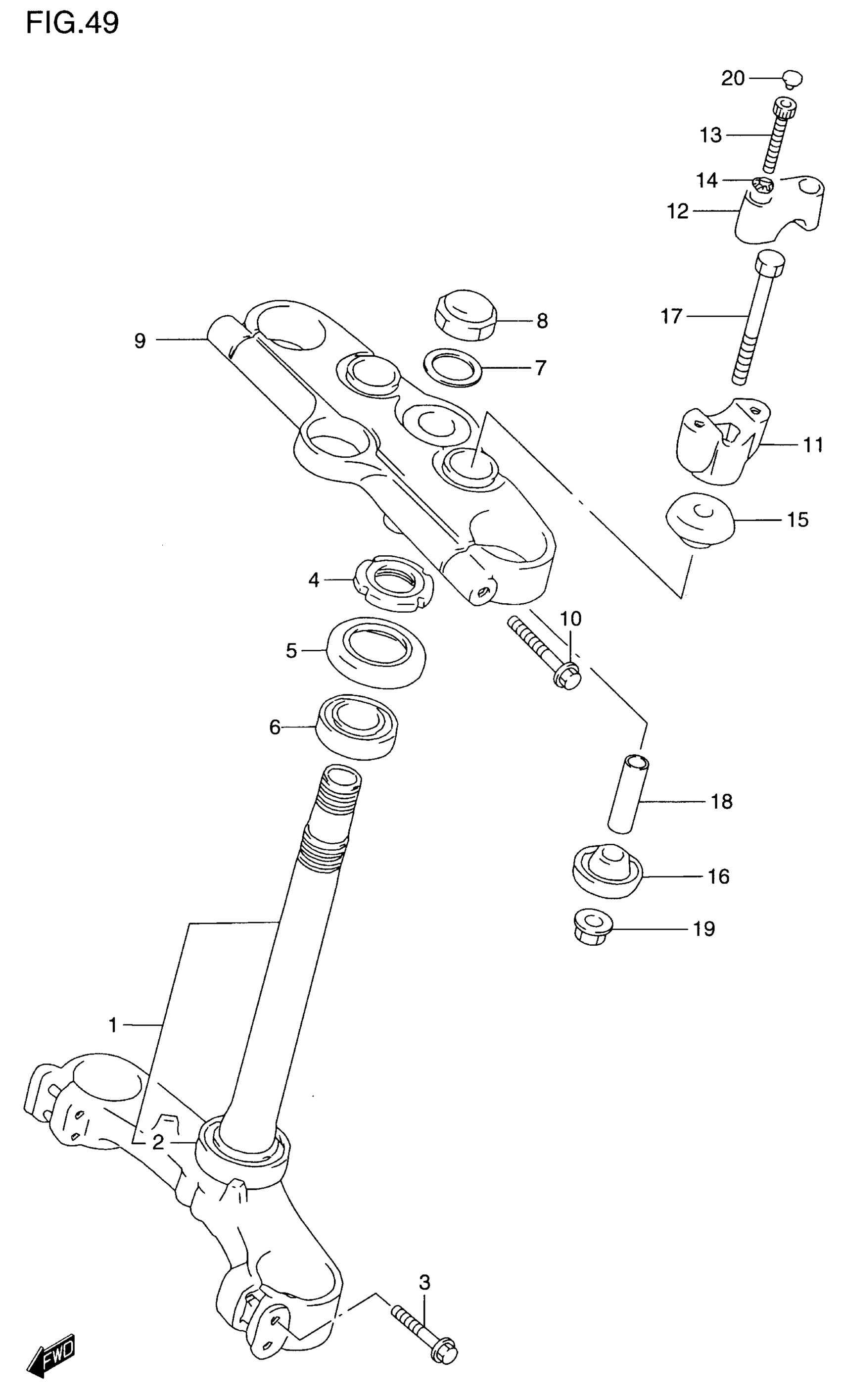

Suzuki GSF1200S (2000) STEERING STEM (GSF1200SV/SW/SX/SY) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-27E01

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

BOLT

01550-08407

$2.63

4

NUT, STEERING STEM

51631-28000

$19.60

5

SEAL, STEERING DUST

51643-49002

$13.92

6

BEARING (25X47X15)

09265-25019

$61.43

7

WASHER

51356-24B01

$7.13

8

NUT, CAP

51353-24B00

$34.62

9

HEAD, STEERING STEM

51311-27E00

Unavailable

10

BOLT

01550-08407

$2.63

11

HOLDER, HANDLE UNDER

56221-27E00

Unavailable

12

HOLDER, HANDLE UPPER

56211-27E00

Unavailable

13

BOLT | GSF1200SV/SW

07130-08307

$4.98

13

BOLT | GSF1200SX/SY

07130-08257

$3.14

14

WASHER

09164-08015

$2.90

15

CUSHION,RUBBER This part replaces 56241-27E00.

56241-27E01

$38.25

16

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$26.90

17

BOLT, HANDLE HOLDER

56321-27E00

$10.83

18

SPACER

56243-42A00

$9.07

19

NUT

08319-31107

$2.73

20

CAP

09250-06011

$2.53
