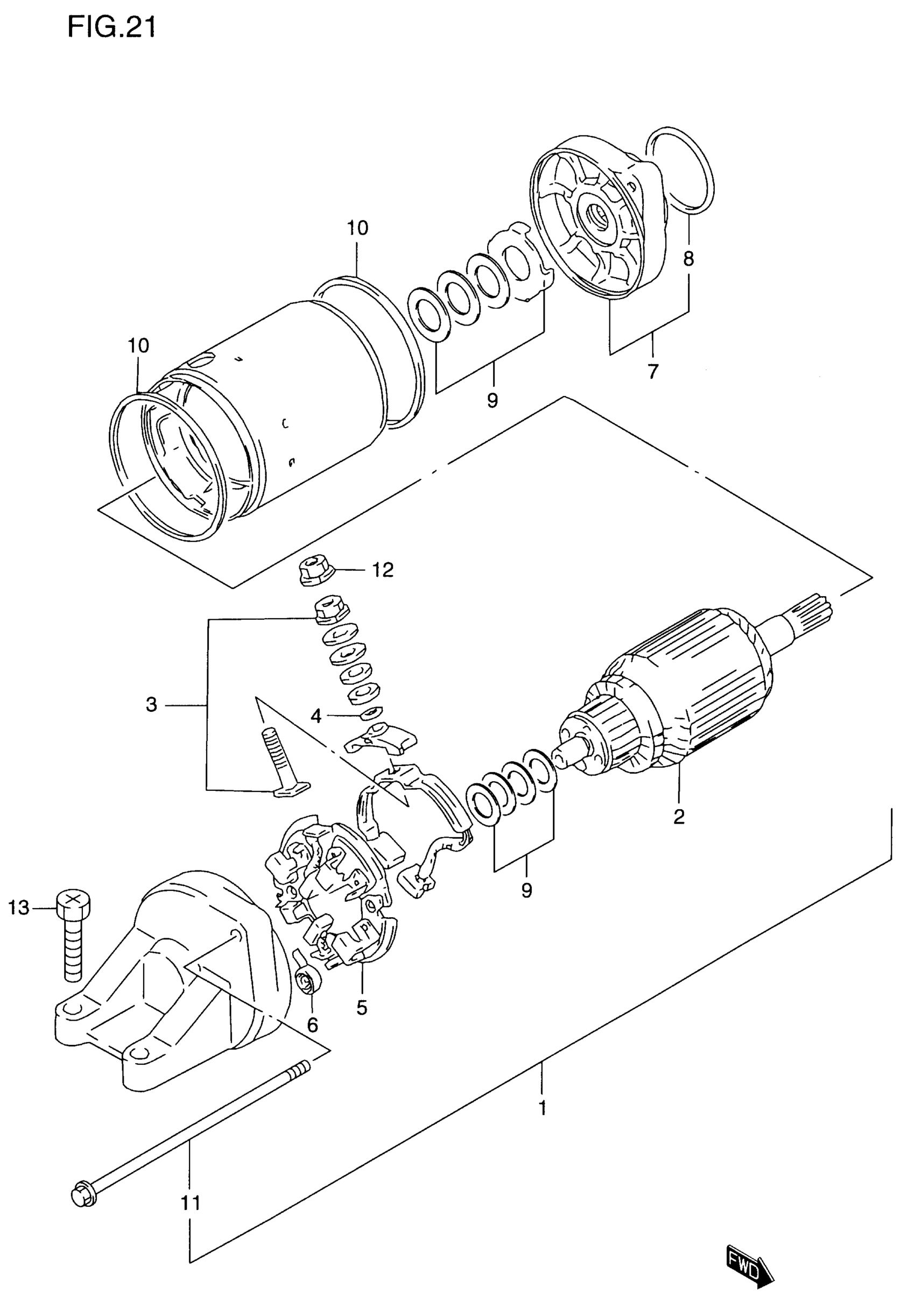

Suzuki GSF1200S (2000) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | MODEL V/W This part replaces 31100-26D00.

31100-26D10

Unavailable

1

MOTOR ASSY, STARTING | MODEL X/Y; Includes Item(s) 2 - 11

31100-26D10

Unavailable

2

ARMATURE

31310-40C02

Unavailable

3

TERMINAL SET, BRUSH

31130-38B00

$69.35

4

O RING

31143-49040

$3.71

5

HOLDER SET, BRUSH

31132-38B00

$69.35

6

SPRING, BRUSH

31135-38B00

$5.40

7

BRACKET ASSY, FRONT

31150-26D00

Unavailable

8

O RING

31156-48B00

$12.02

9

WASHER SET

31170-19B10

$12.57

10

O RING | MODEL V This part replaces 31264-31300.

31264-32E00

$6.68

10

O RING | MODEL W/X/Y

31264-32E00

$6.68

11

BOLT

31280-26D00

$20.45

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
