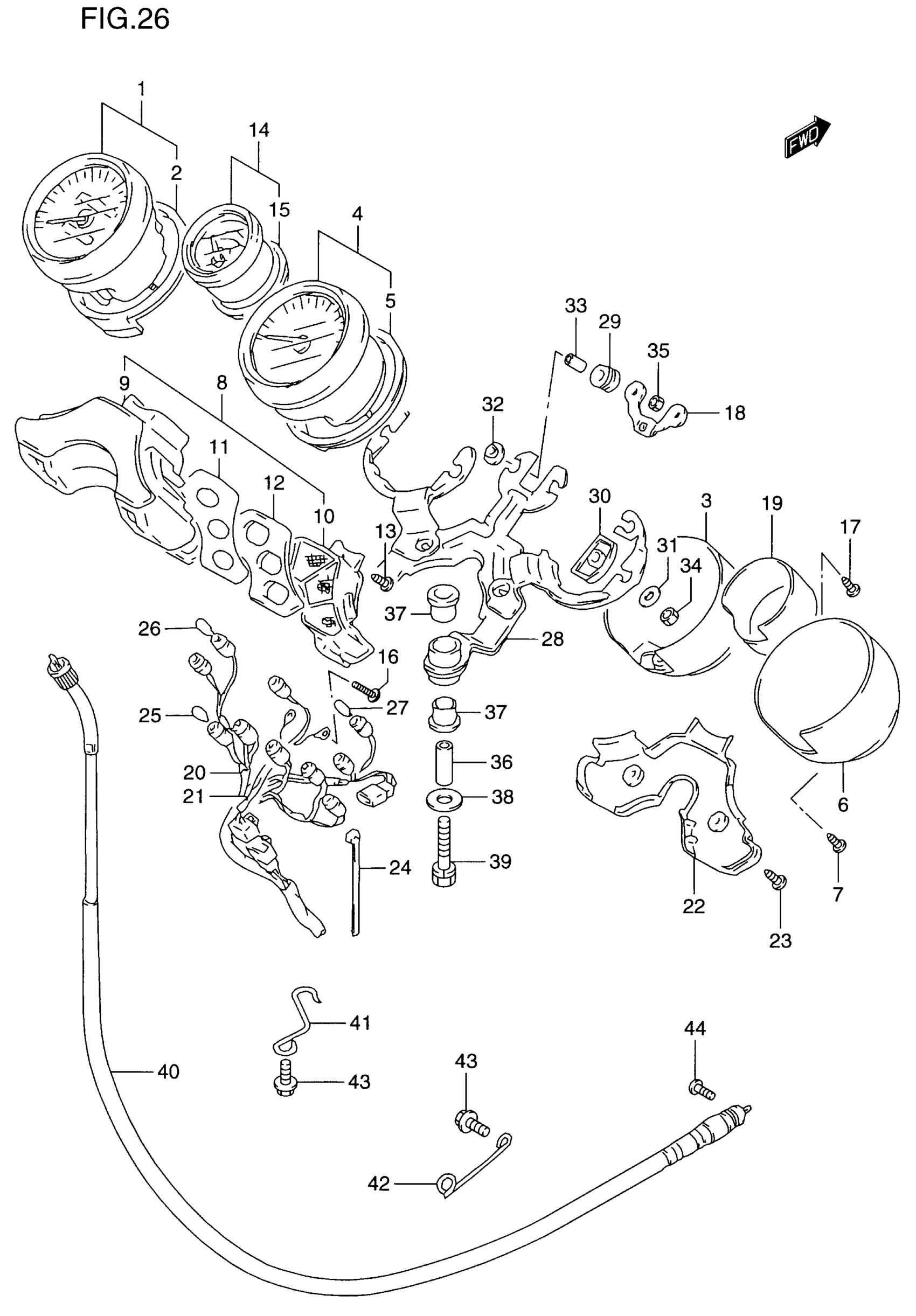

Suzuki GSF1200S (2000) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | Includes Item(s) 2

34110-26D21

Unavailable

2

DAMPER

34161-26D00

$5.27

3

COVER, SPEEDOMETER

34111-26D01

Unavailable

4

TACHOMETER | Includes Item(s) 5

34210-27E00

Unavailable

5

DAMPER

34161-26D00

$5.27

6

COVER, TACHOMETER

34211-26D01

Unavailable

7

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

8

BOX, PILOT | GSF1200SV/SW/SX/SY

36380-27E00

Unavailable

8

BOX, PILOT | GSF1200SAV; Includes Item(s) 9 - 13

36380-27E60

Unavailable

9

CASE, UPPER

36381-26D00

Unavailable

10

LOWER CASE | GSF1200SV/SW/SX/SY

36382-26D20

Unavailable

10

LOWER CASE | GSF1200SAV

36382-27E60

Unavailable

11

PANEL | GSF1200SV/SW/SX/SY

36393-27E00

Unavailable

11

PANEL | GSF1200SAV

36393-27E60

Unavailable

12

GASKET

36396-27E00

Unavailable

13

SCREW

34184-12B00

$2.45

14

FUEL METER | Includes Item(s) 15

34410-27E00

Unavailable

15

DAMPER

34161-26D20

Unavailable

16

SCREW

34383-09400

Unavailable

17

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

18

PLATE, SETTING

34313-26D20

Unavailable

19

COVER, FUEL METER

34311-26D01

Unavailable

20

SOCKET, METER | GSF1200SV/SW/SX/SY

34170-27E20

Unavailable

20

SOCKET, METER | GSF1200SAV

34170-27EA0

Unavailable

21

SOCKET, FUEL METER

34170-27E10

Unavailable

22

COVER, PILOT BOX

36383-26D00

Unavailable

23

SCREW

03512-04149

Unavailable

24

CLAMP

36385-45300

Unavailable

25

BULB (12V,3W)

09471-12103

$3.83

26

.BULB (12V1.7W)

09471-12108

$3.42

27

BULB (12V,1.7W) | STANLEY,WB121

09471-12077

$3.55

28

BRACKET, METER

34950-26D20

Unavailable

29

DAMPER

34191-26D10

Unavailable

30

DAMPER

34191-26D20

Unavailable

31

WASHER (5.2X16X1)

09160-05013

$1.49

32

WASHER, FUEL METER

34185-26D00

Unavailable

33

SPACER, FUEL METER

34187-26D00

Unavailable

34

NUT

08310-00057

$1.84

35

NUT

08310-00047

$2.23

36

BUSH (L:31)

09303-08002

Unavailable

37

CUSHION

09320-12024

Unavailable

38

WASHER This part replaces 09160-08133.

09160-08151

$1.99

39

BOLT This part replaces 01550-08453.

01550-0845A

$3.14

40

CABLE ASSY,SPEE This part replaces 34910-27E01.

34910-27E02

$67.48

41

GUIDE, SPEEDOMETER CABLE NO.1

34938-27E00

Unavailable

42

GUIDE, SPEEDOMETER CABLE NO.3

34939-17D00

Unavailable

43

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

44

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49
