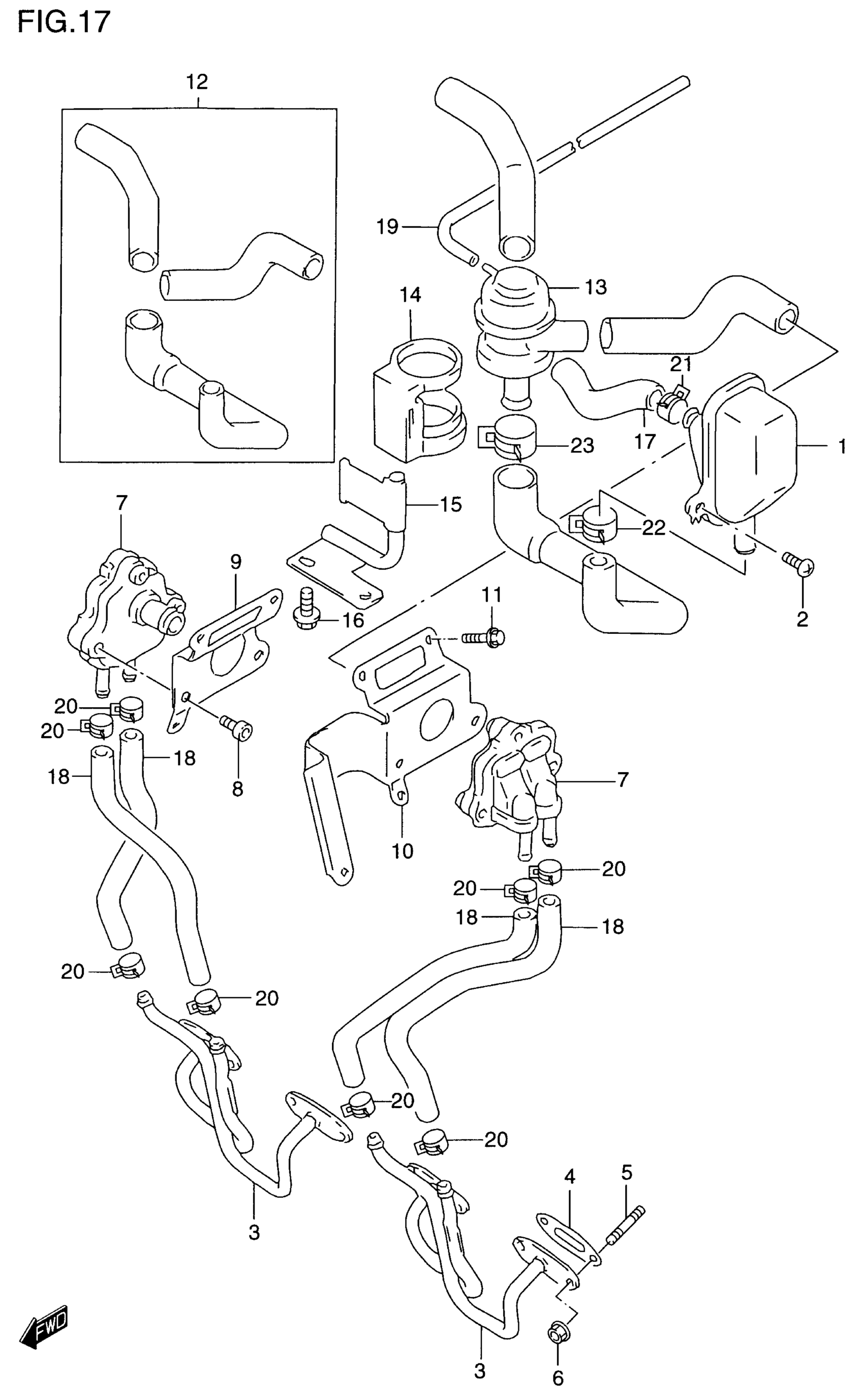

Suzuki GSF1200S (2000) SECOND AIR (GSF1200SV/SW/SX/SY E33) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR

13800-27E00

$52.23

2

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

3

PIPE, 2ND AIR

18430-26D00

Unavailable

4

GASKET, 2ND AIR PIPE This part replaces 18441-17C10.

18441-17C11

$7.25

5

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

VALVE ASSY, 2ND AIR REED | Includes Item(s) 8

18450-48B00

Unavailable

8

BOLT

07130-05167

$3.15

9

BRACKET, RH

18621-27E00

Unavailable

10

BRACKET, LH

18670-27E00

Unavailable

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

HOSE SET, 2ND AIR

18420-27810

Unavailable

13

VALVE ASSY, 2ND AIR SWITCHING

18510-46E00

Unavailable

14

CUSHION

18487-01D00

Unavailable

15

BRACKET, 2ND AIR SW VALVE

18650-27E00

Unavailable

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

HOSE, CLEANER INLET | L:600?100

09352-12163-600

Unavailable

18

HOSE, 2ND AIR REED VALVE | L:600?200

09355-90145-600

$14.57

19

HOSE | L:600?400 This part replaces 09359-40701-600.

09359-40703-600

$9.60

20

CLAMP | MODEL V This part replaces 09401-13413.

09401-13417

$2.26

20

CLIP | MODEL W/X/Y

09401-13417

$2.26

21

CLIP | MODEL V This part replaces 09401-16402.

09401-16403

$2.83

21

CLIP | MODEL W/X/Y

09401-16403

$2.83

22

CLIP | MODEL V

09401-21403

Unavailable

22

CLIP | MODEL W/X/Y

09401-20405

$4.08

23

CLIP This part replaces 09401-25403.

09401-25406

$3.34
