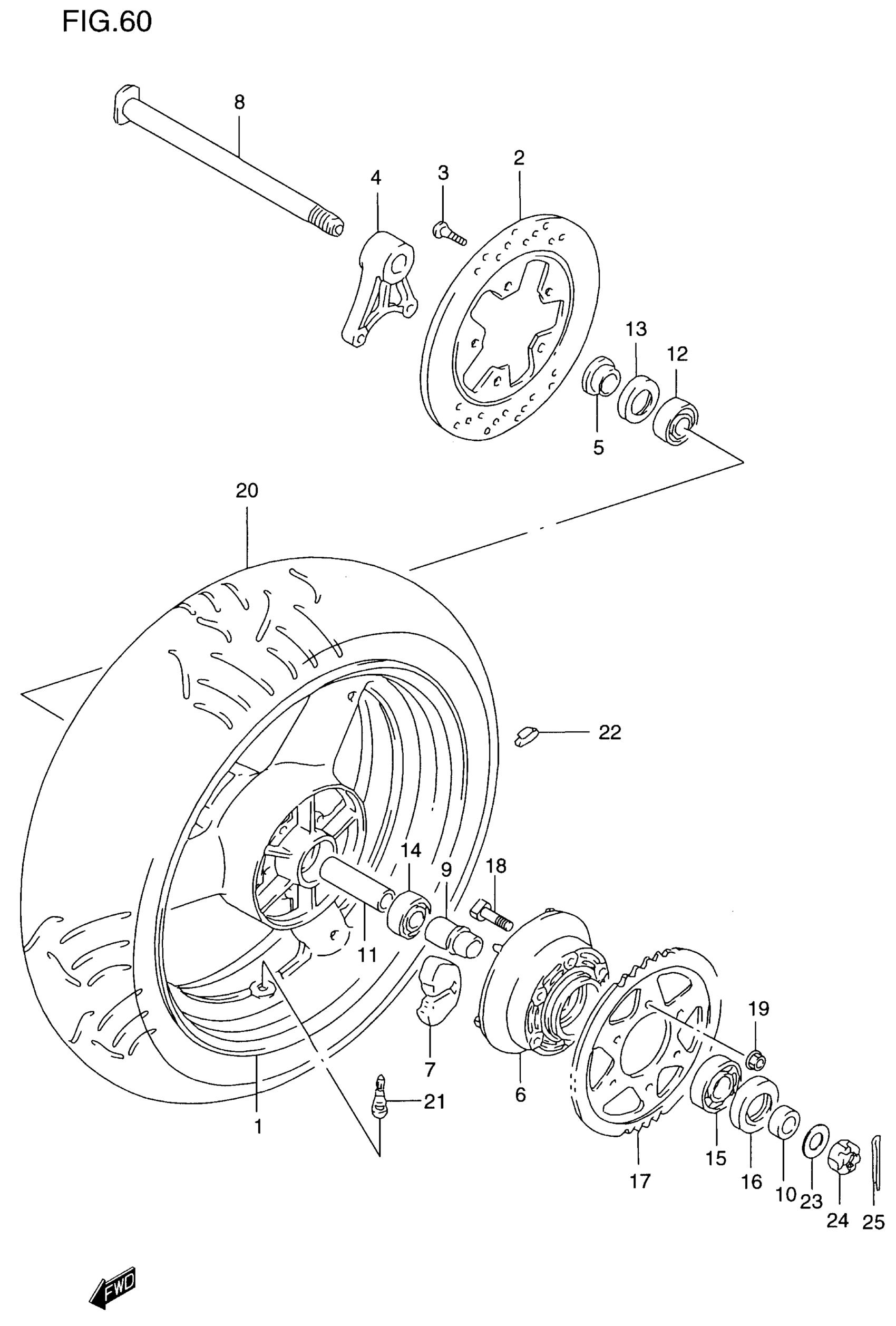

Suzuki GSF1200S (2000) REAR WHEEL (GSF1200SV/SW/SX/SY) Diagram

NO DESCRIPTION AVAILABLE This part replaces 64111-17E11-35W.

64111-17E12-35W

Unavailable

DISC, REAR BRAKE

69211-21E00

$388.57

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

BRACKET, REAR CALIPER

69721-46E00

Unavailable

SPACER, REAR AXLE RH

64741-17E00

$25.52

DRUM, REAR SPROCKET

64610-46E10

Unavailable

ABSORBER, REAR HUB SHOCK

64651-17E00

$15.63

AXLE, REAR

64711-17E30

Unavailable

RETAINER, REAR HUB BEARING

64733-48B00

$27.45

SPACER, REAR AXLE LH

64751-46E00

$17.82

SPACER, REAR WHEEL HUB BEARING

64731-40C00

$25.75

BEARING, RH (20X47X14)

09262-20114

$32.57

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

BEARING, LH (20X47X14)

09262-20042

$23.28

BEARING (25X62X17)

09262-25114

$54.63

SEAL,OIL (35X62X8)

09285-35001

$10.19

SPROCKET, REAR (NT:45)

64511-27E00

$117.68

BOLT

09119-10037

$4.32

NUT

08319-31107

$2.73

TIRE, REAR 180/55 ZR17 (73W) (BRIDGESTONE)

65110-27E30

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL (10G)

55411-00A00

$1.49

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

WASHER (18.5X28X2.60)

09160-18030

$2.56

NUT This part replaces 08314-40183.

08314-4018A

$4.64

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
