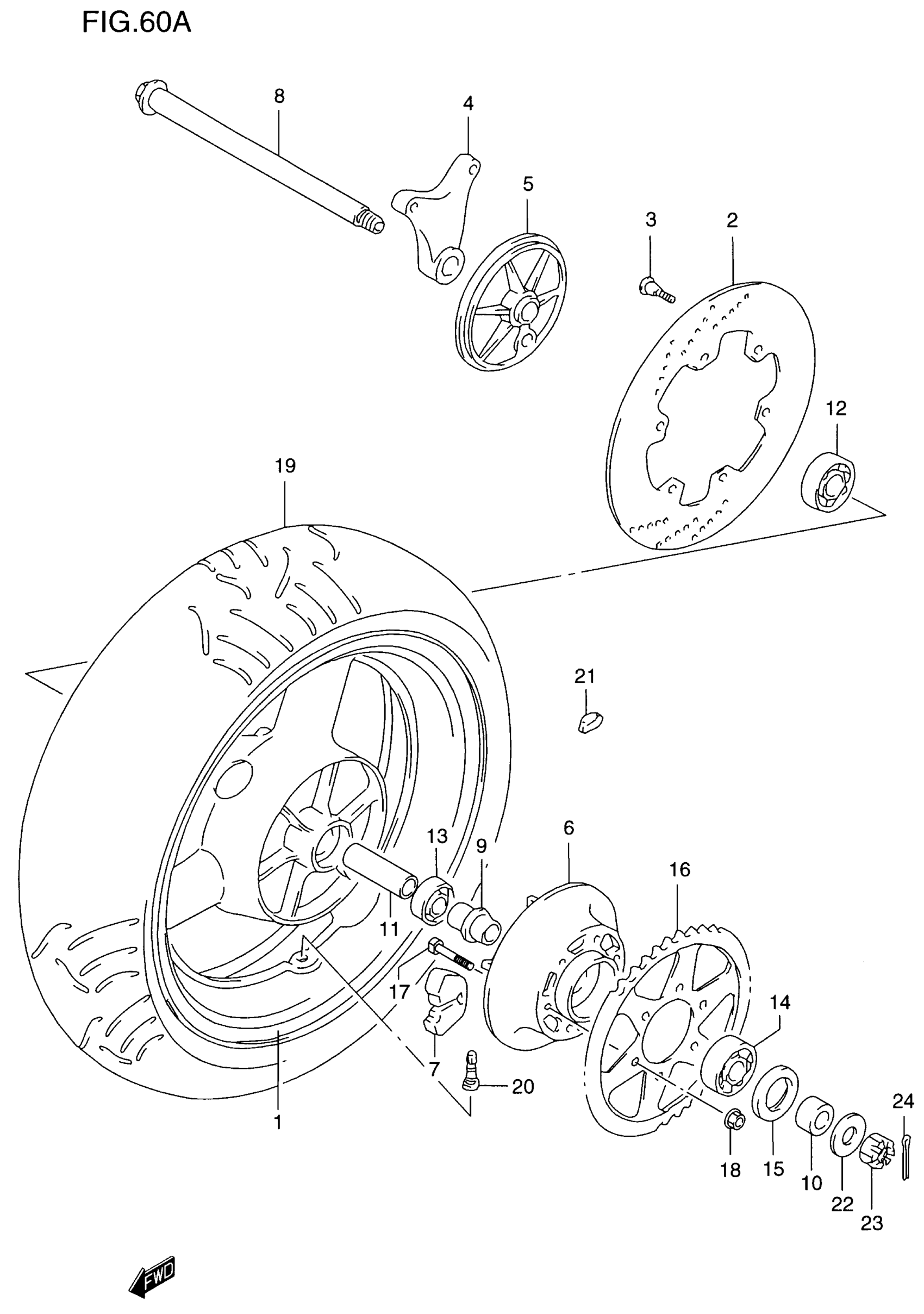

Suzuki GSF1200S (2000) REAR WHEEL (GSF1200SAV) Diagram

#

Description
Price

1

WHEEL SET,RR,17 This part replaces 64100-27810-35W.

64100-27811-35W

Unavailable

2

DISC, REAR BRAKE

69211-27E50

Unavailable

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPER

69721-27E50

Unavailable

5

PANEL, SPEED SENSOR REAR

65720-27E50

Unavailable

6

DRUM, REAR SPROCKET

64610-46E10

Unavailable

7

ABSORBER, REAR HUB SHOCK

64651-17E00

$15.63

8

AXLE, REAR

64711-17E30

Unavailable

9

RETAINER, REAR HUB BEARING

64733-48B00

$27.45

10

SPACER, REAR AXLE LH

64751-46E00

$17.82

11

SPACER, REAR WHEEL HUB BEARING

64731-40C00

$25.75

12

BEARING, RH (20X47X14)

09262-20114

$32.57

13

BEARING, LH (20X47X14)

09262-20042

$23.28

14

BEARING (25X62X17)

09262-25114

$54.63

15

SEAL,OIL (35X62X8)

09285-35001

$10.19

16

SPROCKET, REAR (NT:45)

64511-27E00

$117.68

17

BOLT

09119-10037

$4.32

18

NUT

08319-31107

$2.73

19

TIRE, REAR 180/55 ZR17 (73W) (BRIDGESTONE)

65110-27E30

Unavailable

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

21

BALANCER, WHEEL (10G)

55411-00A00

$1.49

21

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

22

WASHER (18.5X28X2.6)

09160-18030

$2.56

23

NUT This part replaces 08314-40183.

08314-4018A

$4.64

24

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
