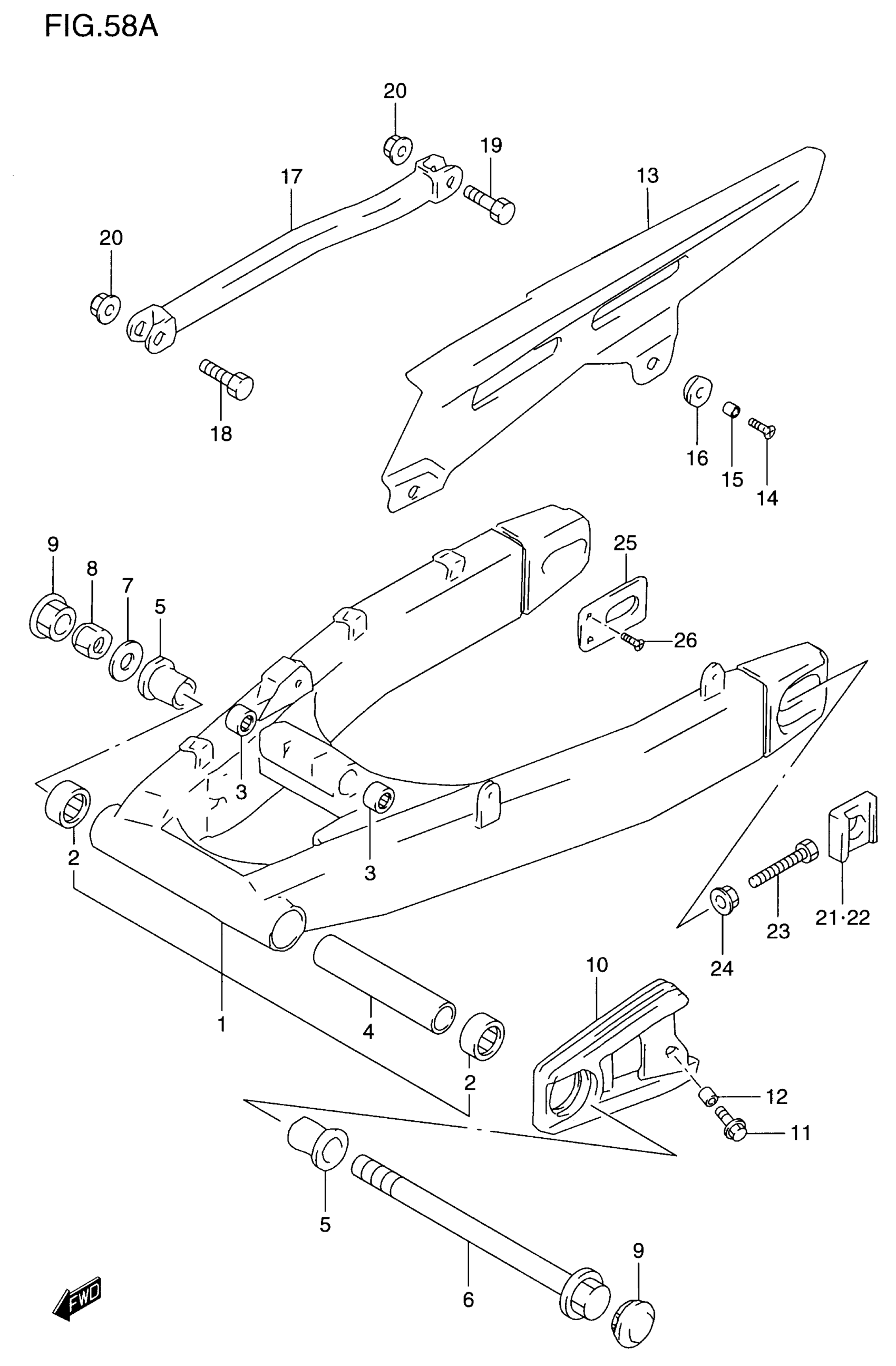

Suzuki GSF1200S (2000) REAR SWINGING ARM (GSF1200SAV) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-27E60

Unavailable

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER, PIVOT CENTER

61282-31E00

Unavailable

5

SPACER,PIVOT BEARING

61251-31E00

$59.25

6

SHAFT, PIVOT

61211-31E00

$128.72

7

WASHER (18.5X28X2.6)

09160-18030

$2.56

8

NUT

09159-18007

$19.68

9

CAP, FRAME PIVOT

43585-21E00

Unavailable

10

BUFFER,CHAIN TO This part replaces 61273-27E11.

61273-27E12

$63.90

11

BOLT (6X20)

09116-06152

$2.36

12

SPACER (6.5X10X7)

09180-06283

$1.91

13

CASE, CHAIN

61311-27E00

Unavailable

14

SCREW This part replaces 09136-06011.

09136-06017

$2.59

15

SPACER (6.2X8.3X6.10)

09180-06092

$3.42

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

17

TORQUE LINK, REAR (BLACK)

64310-27E50-019

Unavailable

18

BOLT, FRONT (10X39)

09111-10051

$6.80

19

BOLT, REAR (10X34)

09100-10187

$3.85

20

NUT

08319-31107

$2.73

21

WASHER,CHAIN AD | RH This part replaces 61446-27C20.

61446-27C21

$37.60

22

WASHER,CHAIN AD | LH This part replaces 61446-17E10.

61446-17E11

$35.78

23

BOLT (8X50)

09100-08287

$3.10

24

NUT This part replaces 08316-10083.

08316-1008B

$2.66

25

PLATE, SWINGING ARM

61124-17E10

$6.88

26

SCREW This part replaces 02142-06163.

02142-0616A

$1.49
