Description

Price

1

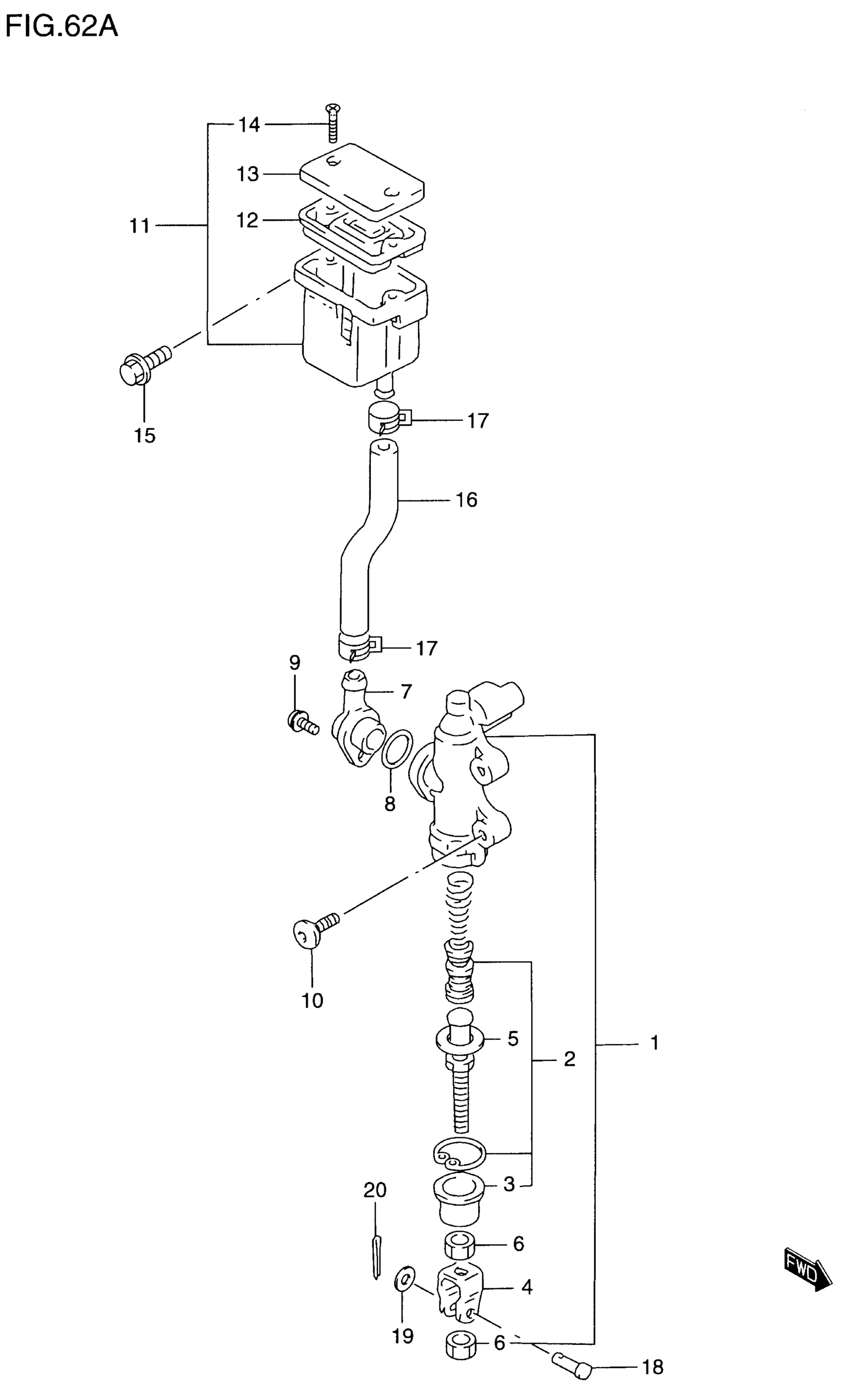

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-17C10

$312.98

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

BOLT, PANEL (8X18) This part replaces 09106-08118.

09106-08161

$3.70

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-38B21

$103.83

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

HOSE, RESERVOIR TANK

69731-26E00

Unavailable

17

CLIP

09401-13417

$2.26

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

19

.WASHER This part replaces 08322-01063.

08322-0106B
