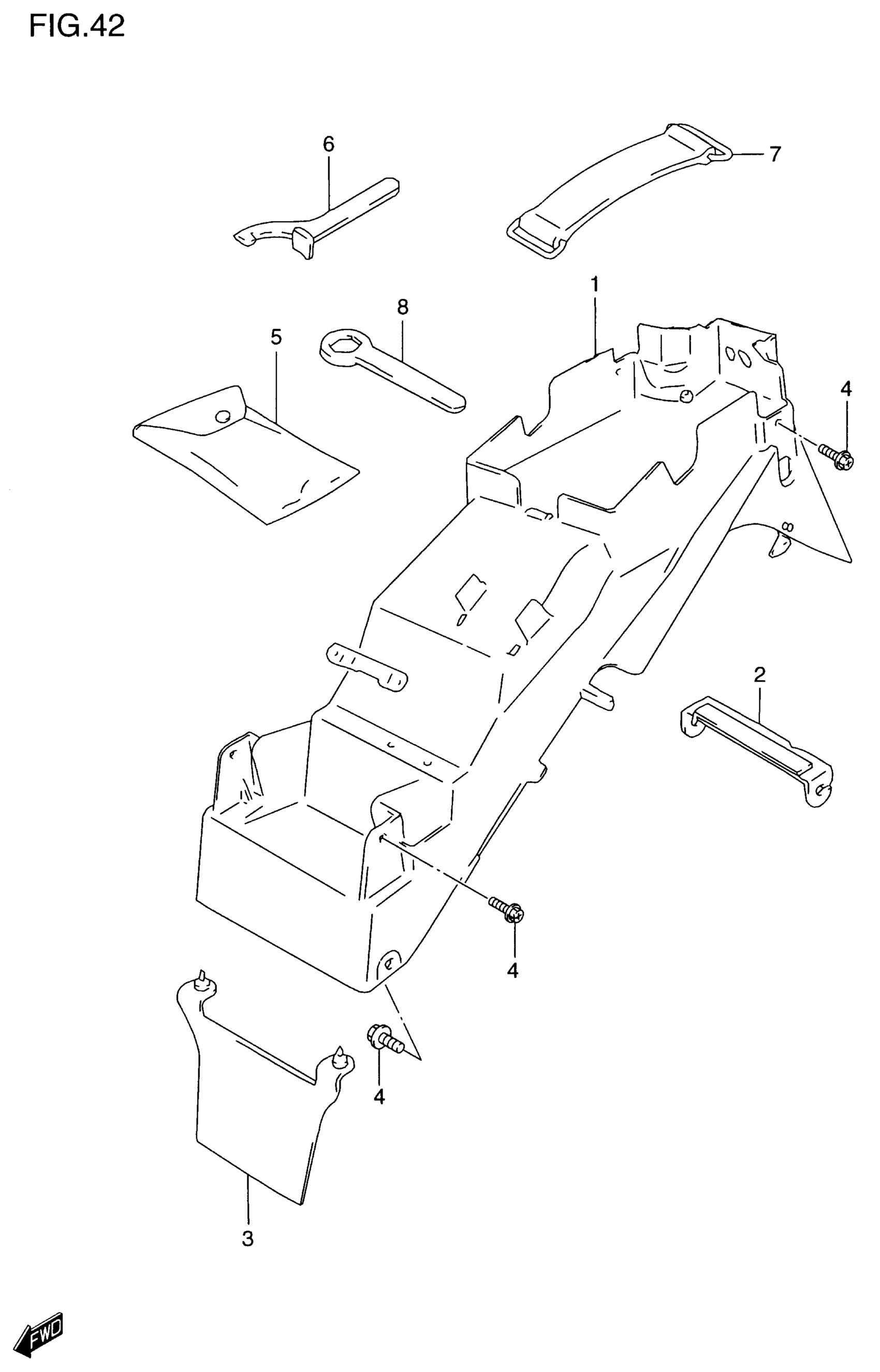

Suzuki GSF1200S (2000) REAR FENDER (GSF1200SV/SW/SX/SY) Diagram

#

Description
Price

1

FENDER, REAR | MODEL V/W/X This part replaces 63110-26E30.

63110-26E31

Unavailable

1

FENDER, REAR | MODEL Y

63110-26E31

Unavailable

1

FENDER, REAR | MODEL V/W/X E33 This part replaces 63110-26E40.

63110-26E41

Unavailable

1

FENDER, REAR | MODEL Y E33

63110-26E41

Unavailable

2

REINF, REAR FENDER

63120-27E00

Unavailable

3

MUD GUARD, FRONT

63411-26E00

Unavailable

4

BOLT | MODEL V/W/X

09111-06066

$2.62

4

BOLT | MODEL Y

09113-06001

$2.73

5

TOOL ASSY

09800-21017

$76.62

6

CLAMP WRENCH

09822-00005

$15.16

7

BAND

09462-00008

$4.77

8

SPANNER (24)

09817-00039

Unavailable
