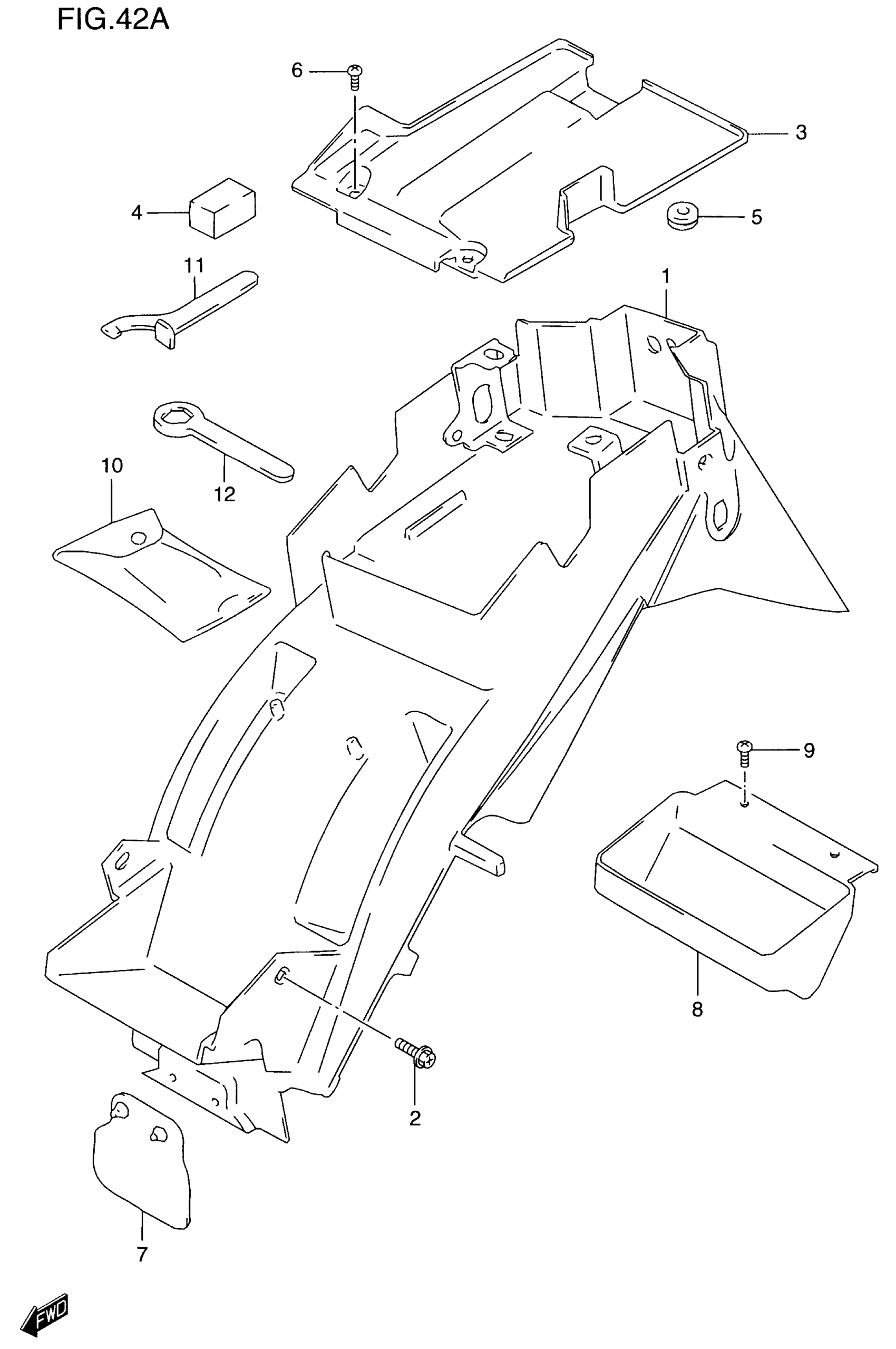

Suzuki GSF1200S (2000) REAR FENDER (GSF1200SAV) Diagram

#

Description
Price

1

FENDER, REAR

63110-27E30

Unavailable

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

COVER

63117-27E00

Unavailable

4

CUSHION

63118-27E00

Unavailable

5

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

6

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

7

MUD GUARD, FRONT

63411-33400

Unavailable

8

HOLDER, TOOL

41551-27E00

Unavailable

9

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

10

TOOL ASSY

09800-21017

$76.62

11

CLAMP WRENCH

09822-00005

$15.16

12

SPANNER (24)

09817-00039

Unavailable
