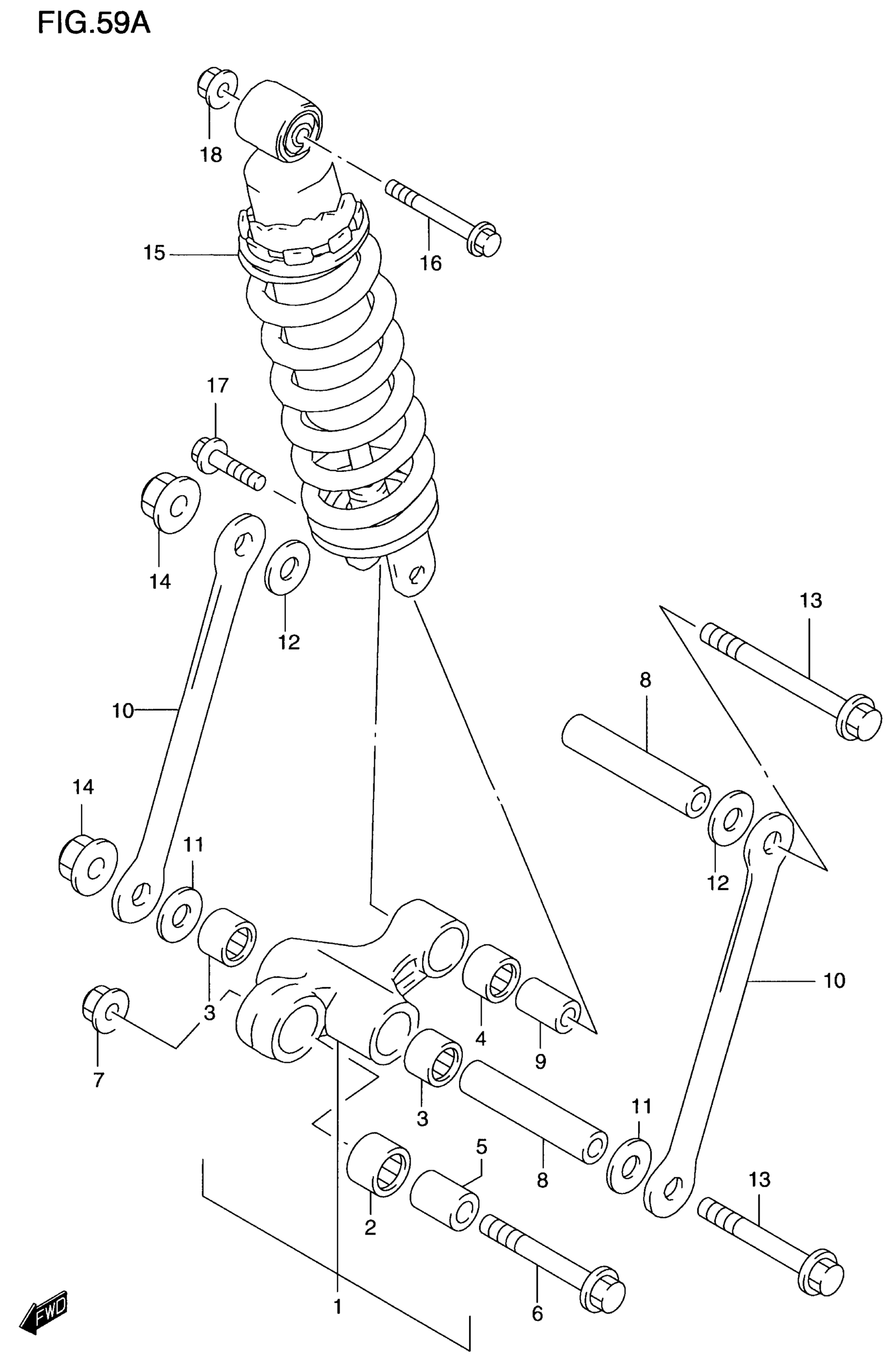

Suzuki GSF1200S (2000) REAR CUSHION LEVER (GSF1200SAV) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-33871

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

SPACER, FRONT (12X20X30)

62684-01D00

$21.87

6

BOLT, FRONT (12X62)

62668-42A02

$12.03

7

NUT This part replaces 08319-31128.

08319-3112A

$3.38

8

SPACER (12X17X85)

09180-12122

$25.05

9

SPACER, REAR (10X17X30)

62684-40A10

$11.44

10

ROD, REAR CUSHION LEVER

62641-27E10

Unavailable

11

WASHER, ROD LOWER (12X34X1.00)

09160-12037

$3.52

12

WASHEER, LEVER UPPER (12X40X1.00)

62628-42AA0

$9.17

13

BOLT (12X115)

09103-12037

$14.72

14

NUT This part replaces 08319-31128.

08319-3112A

$3.38

15

ABSORBER ASSY, REAR SHOCK

62100-27E70

Unavailable

16

BOLT, UPPER (10X50)

09103-10064

$4.29

17

BOLT, LOWER (10X44)

09103-10049

$8.30

18

NUT

08319-31107

$2.73
