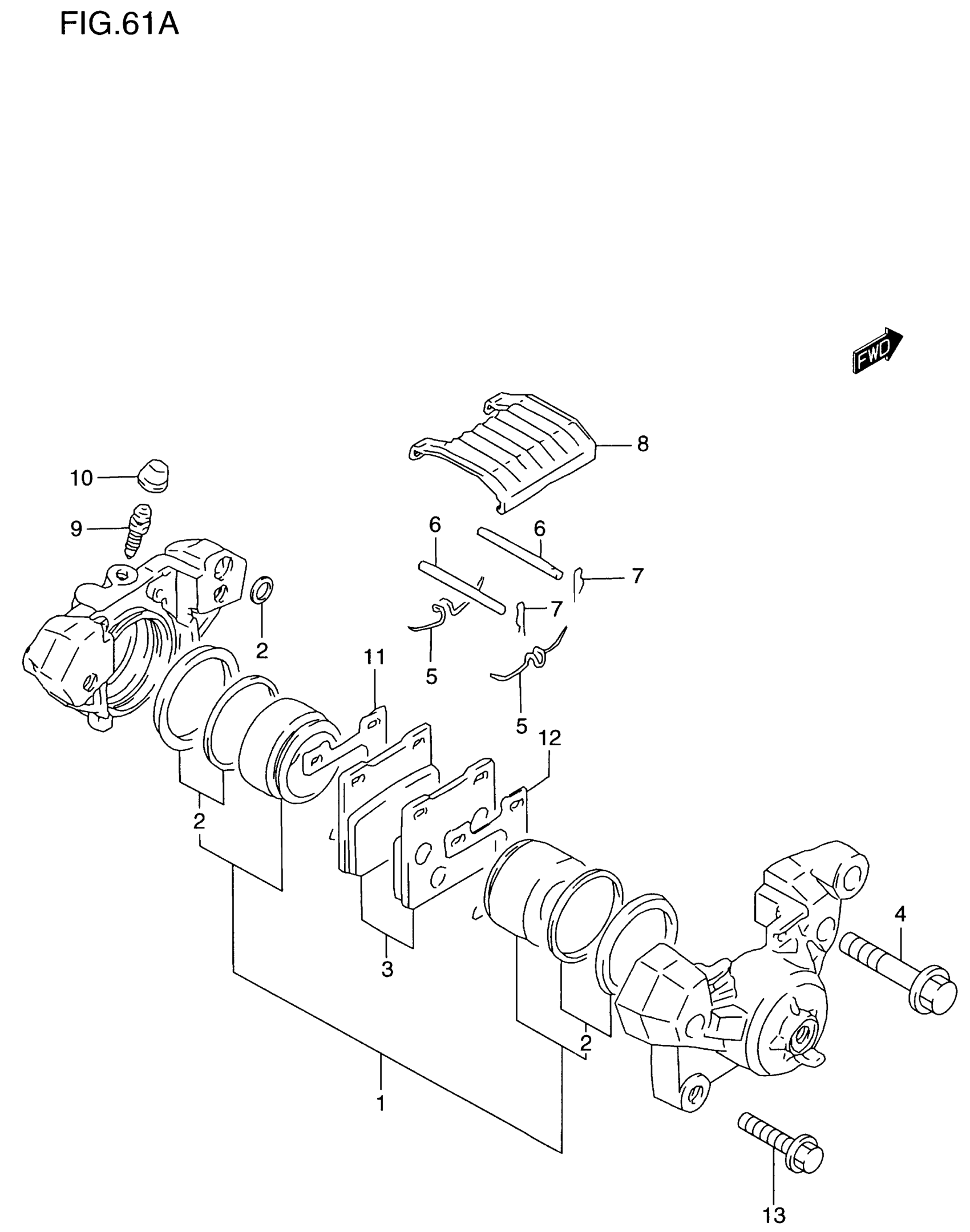

Suzuki GSF1200S (2000) REAR CALIPER (GSF1200SAV) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 12 This part replaces 69100-01D03.

69100-01D04-999

$292.98

1

PISTON SET This part replaces 69100-05850.

69100-05851

$59.83

2

SEAL SET, PISTON This part replaces 69100-32820.

69101-05840

$23.25

3

PAD SET

69100-20810

$49.55

4

BOLT

59145-16700

$8.83

5

SPRING

59143-16700

$5.80

6

PIN

69141-45000

$5.17

7

.CLIP, PAD PIN

69142-45000

$4.34

8

COVER

59151-16701

$13.36

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

SHIM, INNER

59371-20C00

$16.25

12

SHIM, OUTER

59381-20C00

$16.25

13

BOLT This part replaces 01550-08303.

01550-0830A

$3.04
