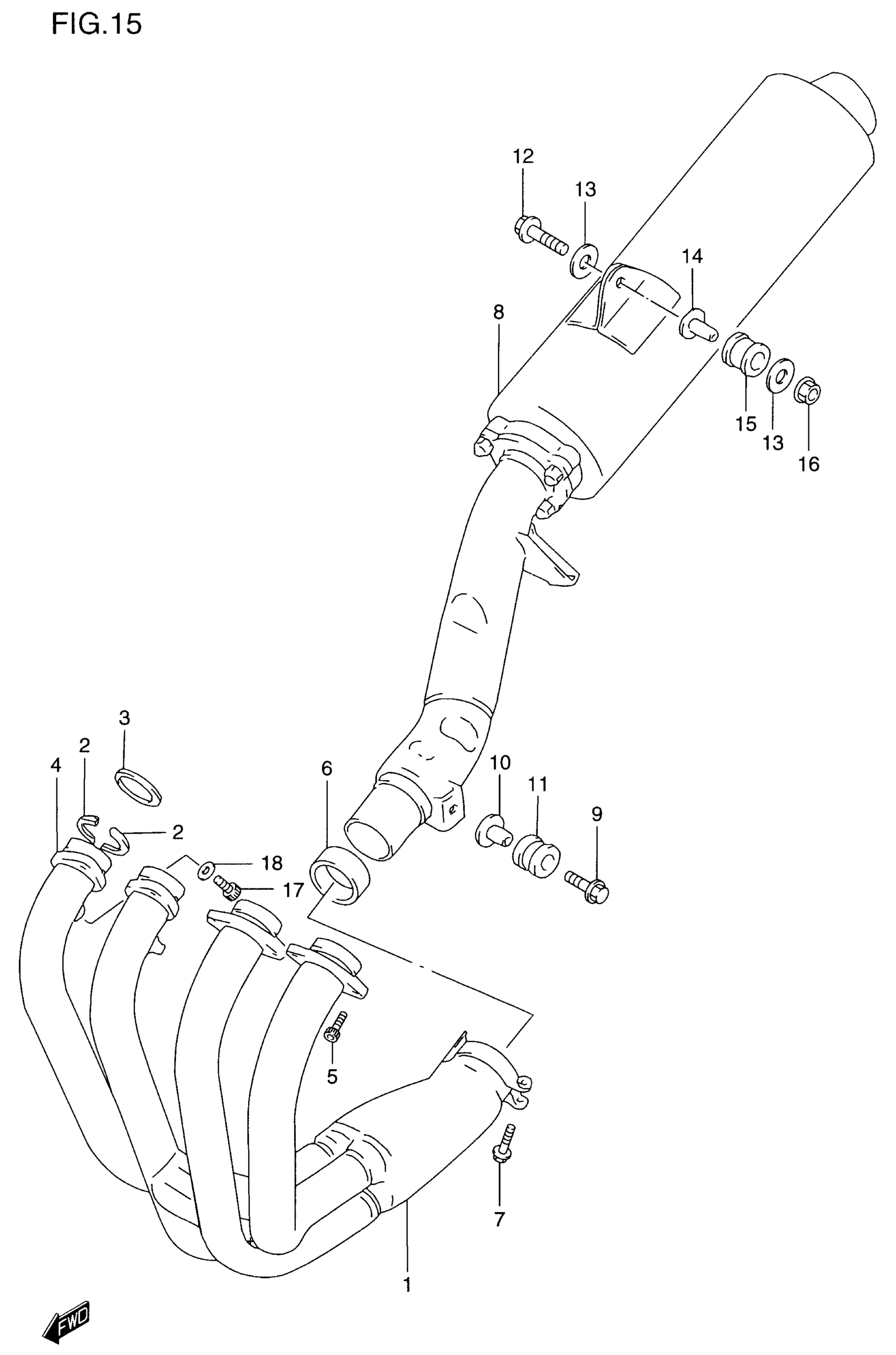

Suzuki GSF1200S (2000) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-27E00

Unavailable

2

PLATE | RH,LH

14155-27A00

$3.56

3

.GASKET,EXHAUST

14181-18C00

$7.22

4

CLAMP | RH,LH

14182-26D00

$37.53

5

BOLT

07130-08257

$3.43

6

CONNECTOR, MUFFLER

14771-27E00

$42.03

7

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

8

BODY,MUFFLER This part replaces 14310-27E00-H01.

14310-27E10-H01

Unavailable

9

BOLT (8X40) This part replaces 09118-08068.

09118-08145

$6.47

10

SPACER, SUPPORT,FR

09180-08152

$5.83

11

CUSHION

09320-12048

$5.11

12

BOLT

01550-08457

$4.00

13

WASHER (8.5X33X1.5) | MODEL V This part replaces 09160-08106.

09160-08146

$2.60

13

WASHER (8.5X33X1.5) | MODEL W/X/Y This part replaces 09160-08140.

09160-08146

$2.60

14

SPACER, SUPPORT,RR

09180-08156

$6.70

15

CUSHION

09320-12049

$10.68

16

NUT This part replaces 08361-25088.

08361-2508A

$1.97

17

BOLT (6X10)

09106-06076

$3.29

18

WASHER

09160-06055

$1.62
