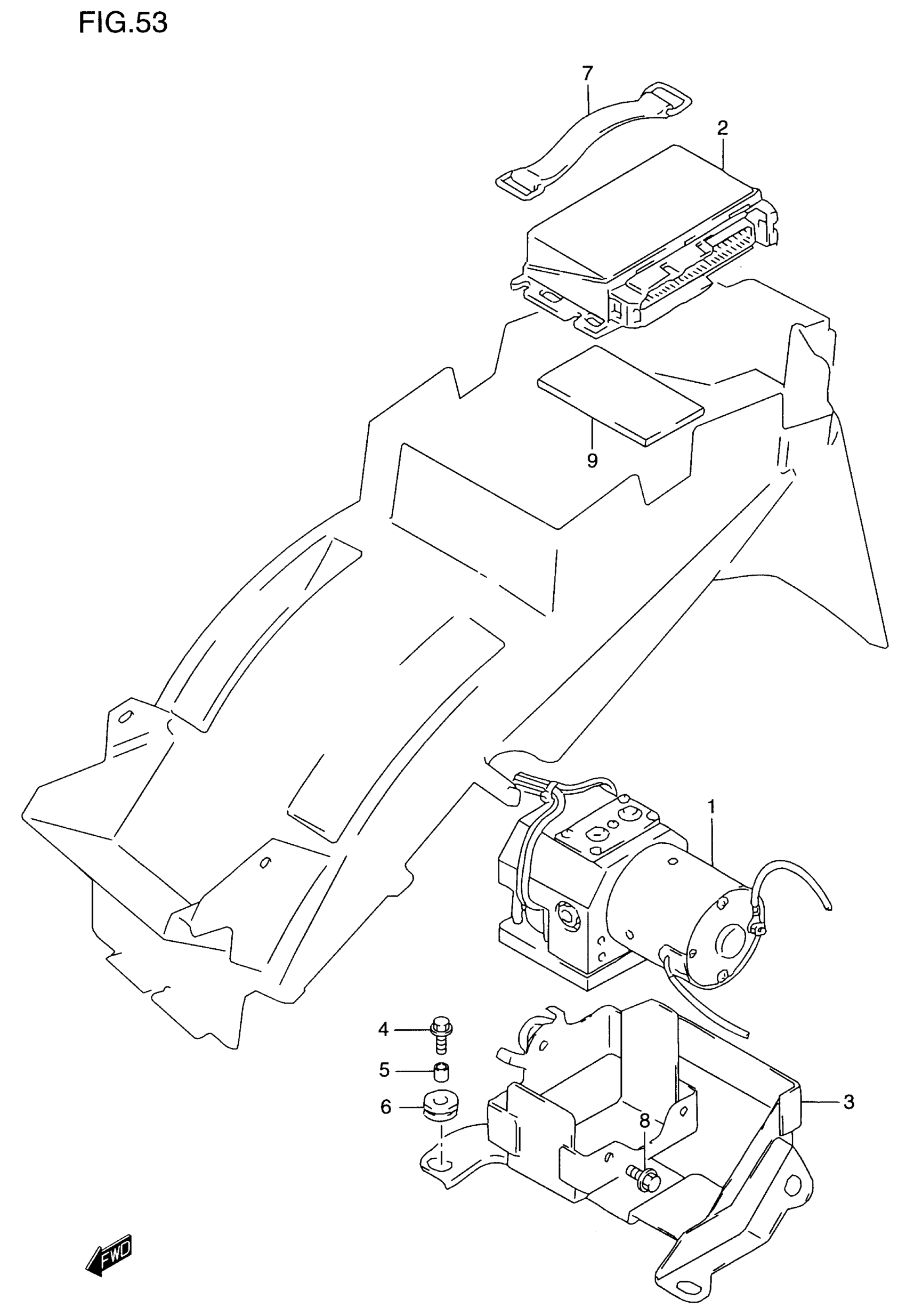

Suzuki GSF1200S (2000) HYDRAULIC UNIT (GSF1200SAV) Diagram

#

Description

Price

1

HYDRAULIC UNIT ASSY

55600-27E50

Unavailable

2

ELECTRIC CONTROL UNIT ASSY

55800-27E50

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 55660-27E50.

55660-27E51

Unavailable

3

HOLDER, HYDRAULIC | E33

55660-27E60

Unavailable

4

BOLT (6X20)

09116-06152

$2.21

5

SPACER (6.5X9X7)

09180-06259

$2.55

6

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.74

7

BAND

09462-00015

$12.07

8

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.38

9

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

$4.28
