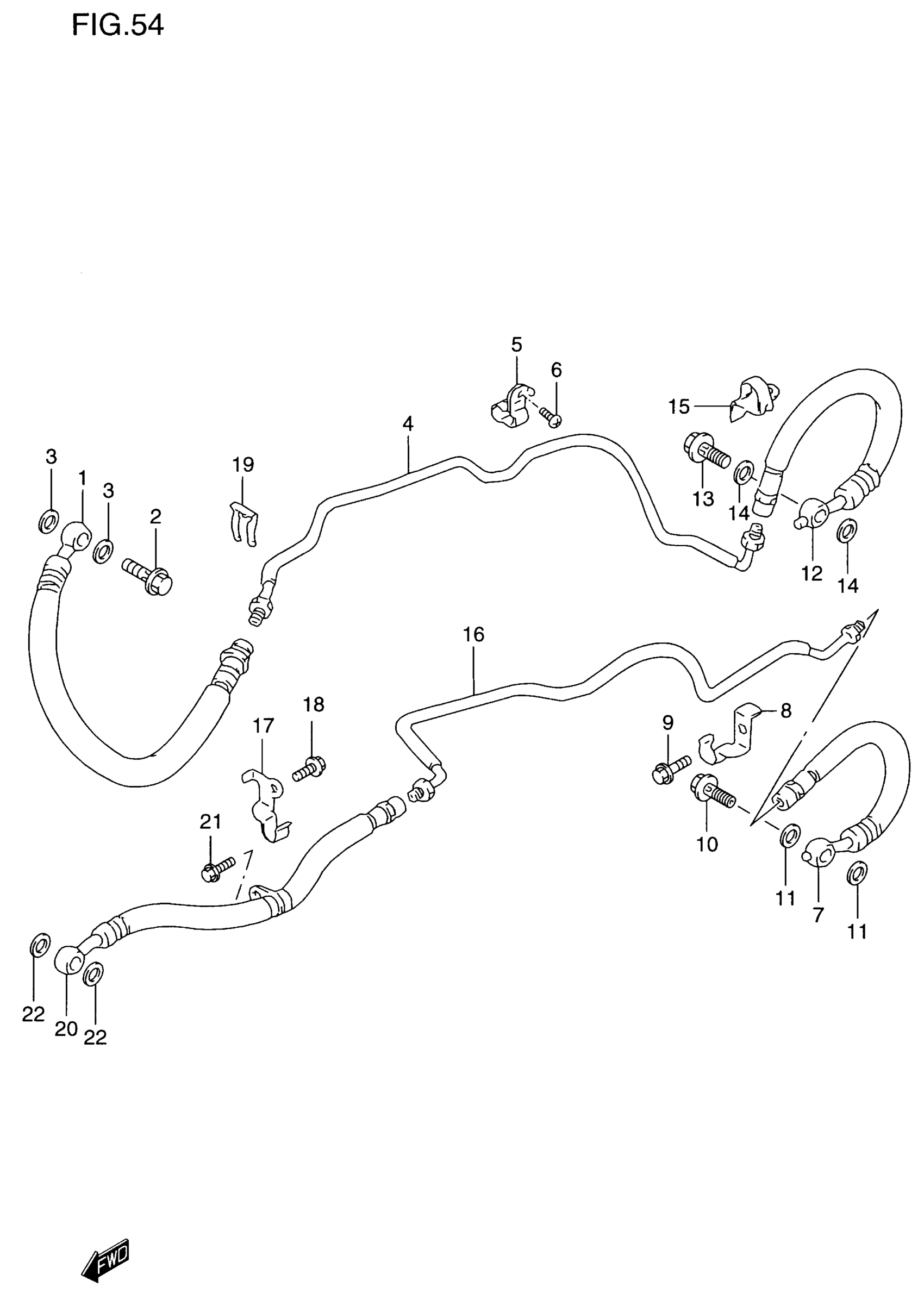

Suzuki GSF1200S (2000) FRONT BRAKE PIPE (GSF1200SAV) Diagram

#

Description
Price

1

HOSE, FRONT BRAKE

59480-27E60

Unavailable

2

UNION This part replaces 09360-10042.

09360-10062

$5.99

3

WASHER (10X15X1.5)

09161-10009

$1.89

4

PIPE, FRONT BRAKE NO.1

59250-27E50

Unavailable

5

CLAMP, BRAKE PIPE

59253-27E50

Unavailable

6

SCREW This part replaces 02142-06163.

02142-0616A

$1.41

7

HOSE, HYDRAULIC OUT

59560-27E70

Unavailable

8

CLAMP, HOSE OUT

59552-27E50

Unavailable

9

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

10

UNION This part replaces 09360-10042.

09360-10062

$5.99

11

WASHER (10X15X1.5)

09161-10009

$1.89

12

HOSE, HYDRAULIC IN

59560-27E60

Unavailable

13

UNION This part replaces 09360-10042.

09360-10062

$5.99

14

WASHER (10X15X1.5)

09161-10009

$1.89

15

CLAMP, HOSE IN

59551-27E50

Unavailable

16

PIPE, FRONT BRAKE NO.2

59450-27E50

Unavailable

17

CLAMP, HOSE JOINT

59265-27E50

Unavailable

18

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

19

E RING This part replaces 09383-13001.

09383-13003

$2.83

20

HOSE, BRAKE JOINT

59560-27E50

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

22

WASHER (10X15X1.5)

09161-10009

$1.89
