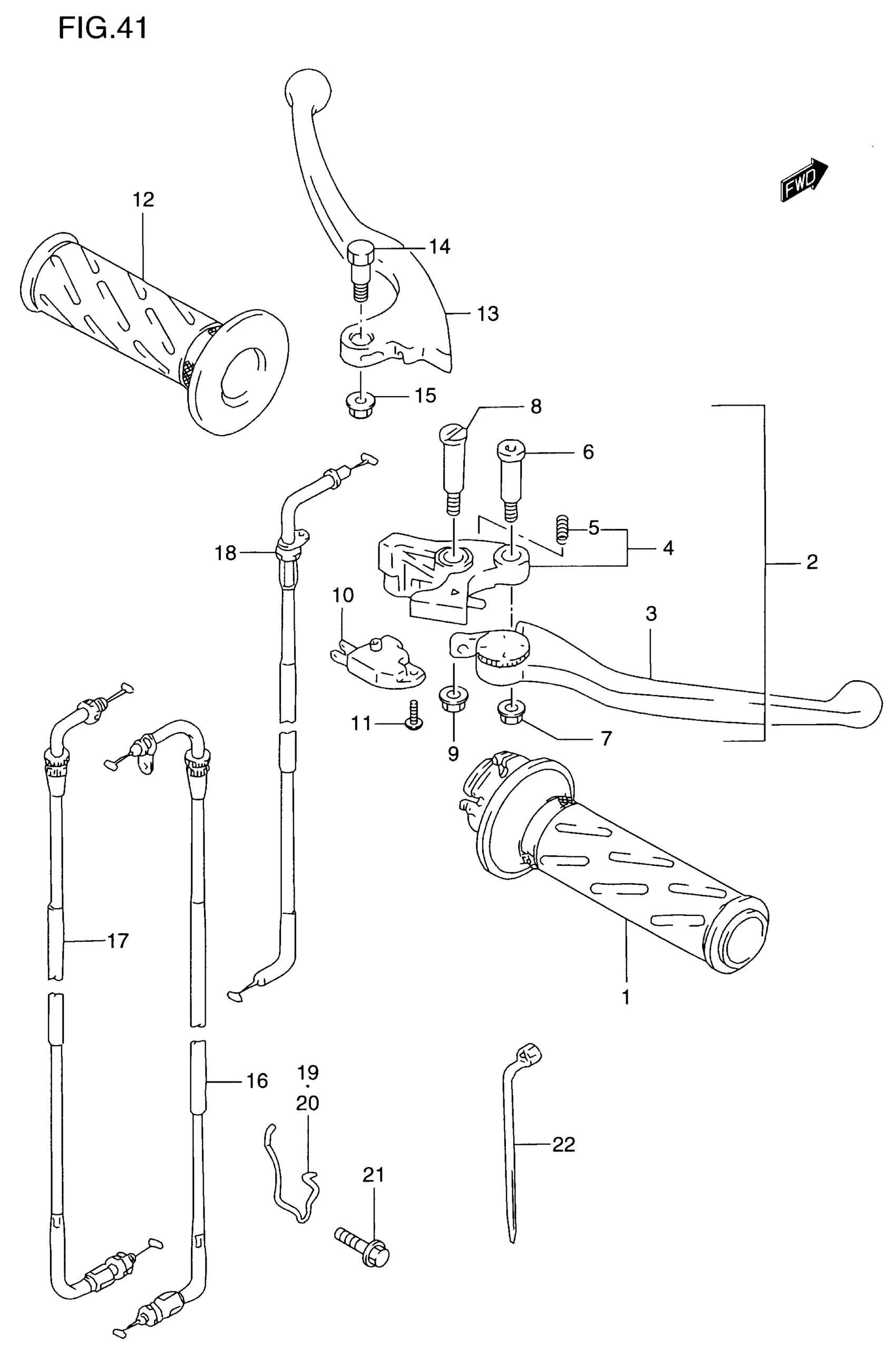

Suzuki GSF1200S (2000) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | MODEL V This part replaces 57300-40C01.

57300-40C10

$78.02

2

LEVER ASSY, BRAKE | MODEL W/X/Y; Includes Item(s) 3 - 9

57300-40C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER | MODEL V/W This part replaces 57430-40C00.

57430-40C10

$59.25

4

KNOCKER | MODEL X/Y

57430-40C10

$59.25

5

SPRING

57438-32C00

$5.67

6

BOLT, LEVER

57437-32C01

$8.60

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

BOLT, KNOCKER

57431-17C00

$7.11

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER, CLUTCH

57621-38A02

$21.10

14

BOLT

57431-05A00

$7.23

15

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

16

CABLE ASSY, THROTTLE NO.1

58300-27E00

Unavailable

17

CABLE ASSY, THROTTLE NO.2

58300-27E10

Unavailable

18

CABLE, STARTER | MODEL V/W This part replaces 58410-27E10.

58410-27E11

Unavailable

18

CABLE, STARTER | MODEL X/Y

58410-27E11

Unavailable

19

GUIDE,CABLE,NO. This part replaces 58621-27E00.

58621-27E0V

Unavailable

20

GUIDE, CABLE NO.2

58622-27E00

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

22

CLAMP

09407-14403

$2.26
