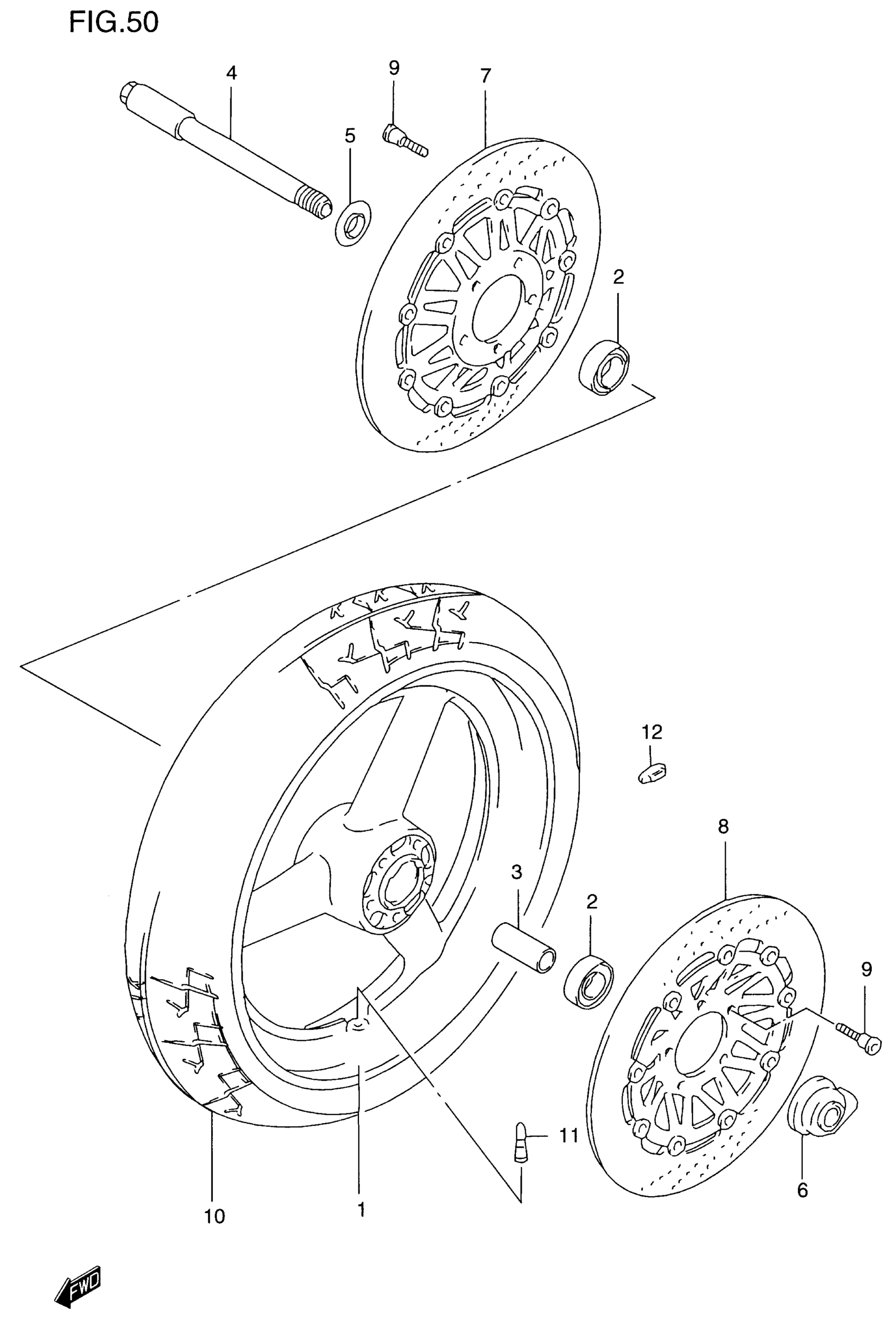

Suzuki GSF1200S (2000) FRONT WHEEL (GSF1200SV/SW/SX/SY) Diagram

#

Description

Price

1

WHEEL,FR,17M/CX This part replaces 54111-17E11-35W.

54111-17E12-35W

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER (20.8X27.2X74)

09180-20103

$26.25

4

AXLE, FRONT This part replaces 54711-17C00.

54711-17C10

$143.67

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR

54600-17C01

Unavailable

7

DISC, FRONT BRAKE RH

59210-31E10

Unavailable

8

DISC, FRONT BRAKE LH

59220-31E10

Unavailable

9

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

10

TIRE, FRONT 120/70 ZR17 (58W) (BRIDGESTONE)

55110-27E30

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
